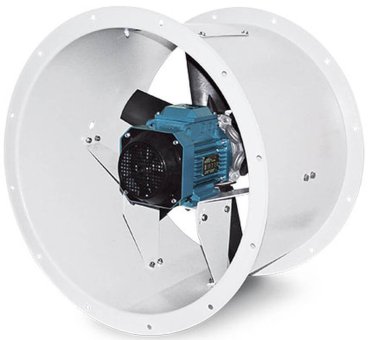

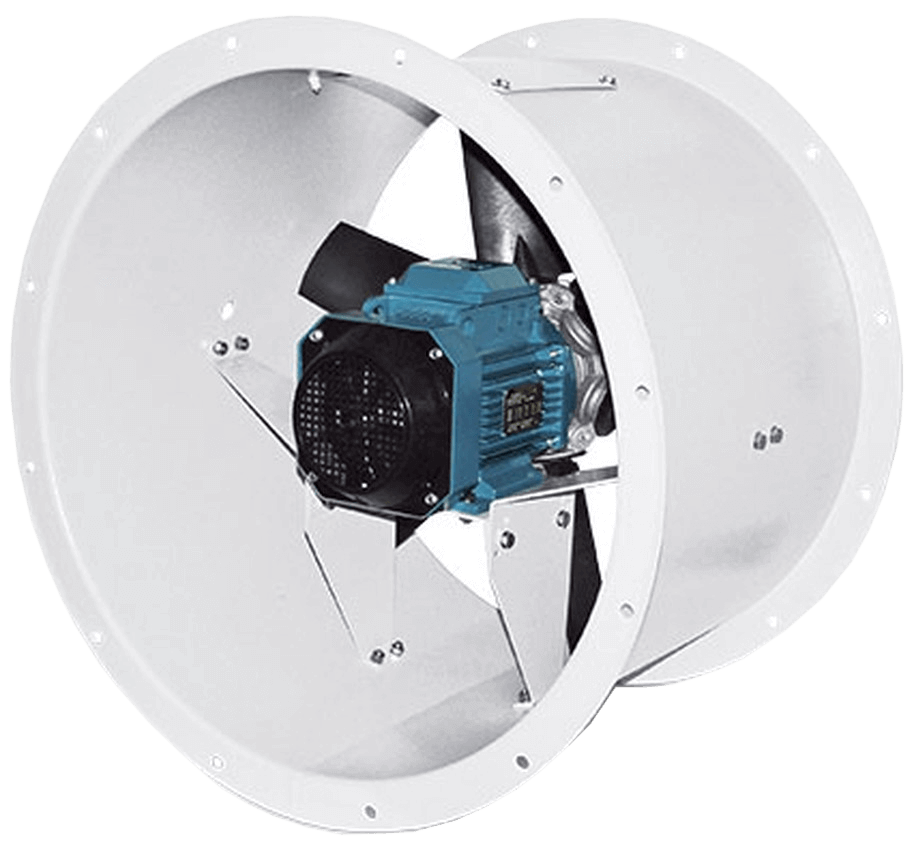

ER HP 35/4 T axial high-power tube fan

Efficient Ventilation with the ER HP 35/4 T

The ER HP 35/4 T axial high-power tube fan from CasaFan is the ideal choice for demanding ventilation tasks in commercial applications. With a nominal diameter of 350 mm and a power of 120 Watts at a maximum speed of 1400 RPM, this fan provides an airflow of up to 3000 m³/h. The axially designed tube fan is excellent for the supply and exhaust of longer pipe or duct systems, where high pressures and flow rates are required.

A key advantage of the ER HP 35/4 T is its energy efficiency compared to other models. While many alternatives require higher power to achieve comparable results, this fan offers an efficient solution with low power consumption. Additionally, the fan is speed adjustable, allowing for flexible adaptation to different requirements.

The similarities and differences to other variants of the ER HP series are also noteworthy. The ER HP 35/4 T differs from the ER HP 30/2 T axial high-power tube fan in terms of nominal diameter and number of poles. While the 30/2 variant has a nominal diameter of 300 mm and 2 poles, the 35/4 variant offers a larger nominal diameter of 350 mm and 4 poles, making it better suited for applications with higher airflow demands.

To make the most of the ER HP 35/4 T, you should consider the specific requirements of your environment and the desired airflow rates. This fan is particularly suitable for industrial applications where reliable and powerful ventilation is essential.

• Nominal Diameter: 350 mm, ideal for larger duct systems.
• Number of Poles: 4, resulting in a lower speed and thus quieter operation.
• Energy Efficiency: Low power consumption with high airflow.
• Flexibility: Speed adjustable for various applications.
• Robust Construction: Steel housing with epoxy resin coating for durability.
