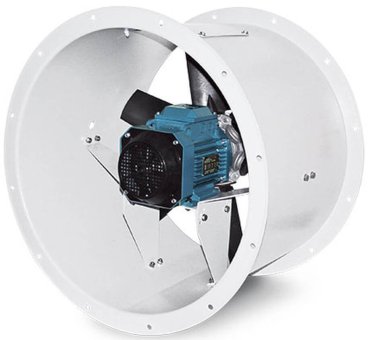

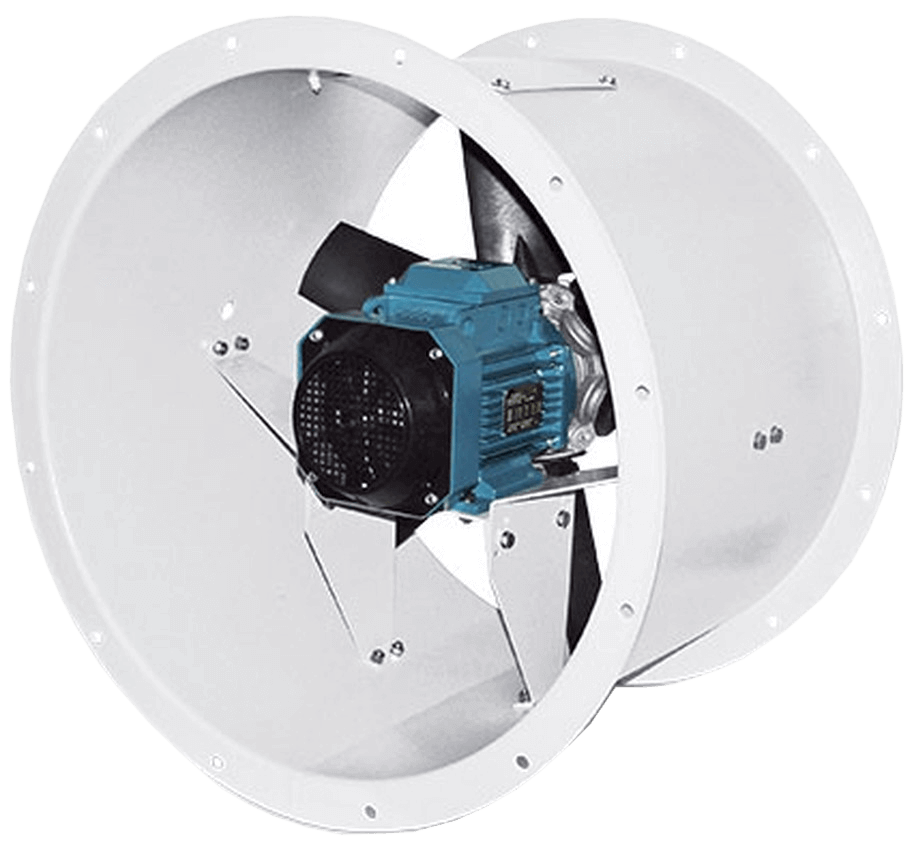

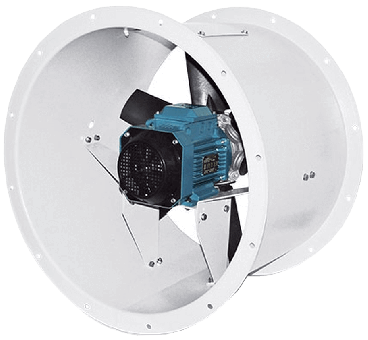

ER HP 50/4 T-P axial high-power tube fan

High-performance duct fan for demanding applications

The ER HP 50/4 T-P axial high-power tube fan from CasaFan is the ideal solution for efficient ventilation in commercial environments. With a diameter of 500 mm and a high performance of up to 7500 m³/h, this fan provides optimal air circulation, which is essential in long duct systems. Thanks to its robust construction and the use of high-quality materials such as galvanized steel, the fan is particularly durable and resistant.

A standout feature of the ER HP 50/4 T-P is its speed-controlled function, which allows for precise adjustment of the airflow to meet specific requirements. This not only ensures high energy efficiency but also a quiet operation. Compared to other fans in this series, such as the ER HP 30/2 T axial high-power tube fan, the 50/4 T-P offers a larger nominal diameter and a higher number of poles, making it particularly suitable for applications with higher air volumes.

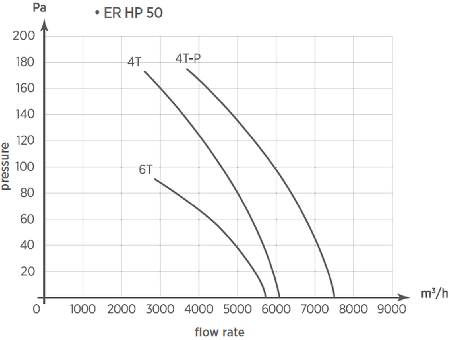

The areas of application for this fan are diverse. It is excellent for ventilating warehouses, workshops, or industrial facilities where constant air circulation is required. Additionally, due to its high total pressure of 235 PA and maximum speed of 1400 RPM, the fan can efficiently operate even longer air ducts.

Below is an overview of the key similarities and differences among the variants within the ER HP series:

• Nominal Diameter: The ER HP 50/4 T-P has a nominal diameter of 500 mm, while other models like the ER HP 30/2 T offer a nominal diameter of 300 mm.
• Number of Poles: With 4 poles, the ER HP 50/4 T-P is optimal for applications requiring medium speed while simultaneously achieving high air throughput.
• Power Consumption: With a maximum power consumption of 550 watts, the fan ensures effective air circulation while maintaining low operating costs.
• Air Performance: The maximum air performance of 7500 m³/h makes it one of the most powerful options in the ER HP series.
