Vortice check valve Lineo-S160

Vortice Check Valve Lineo-S160 160mm for Efficient Airflow

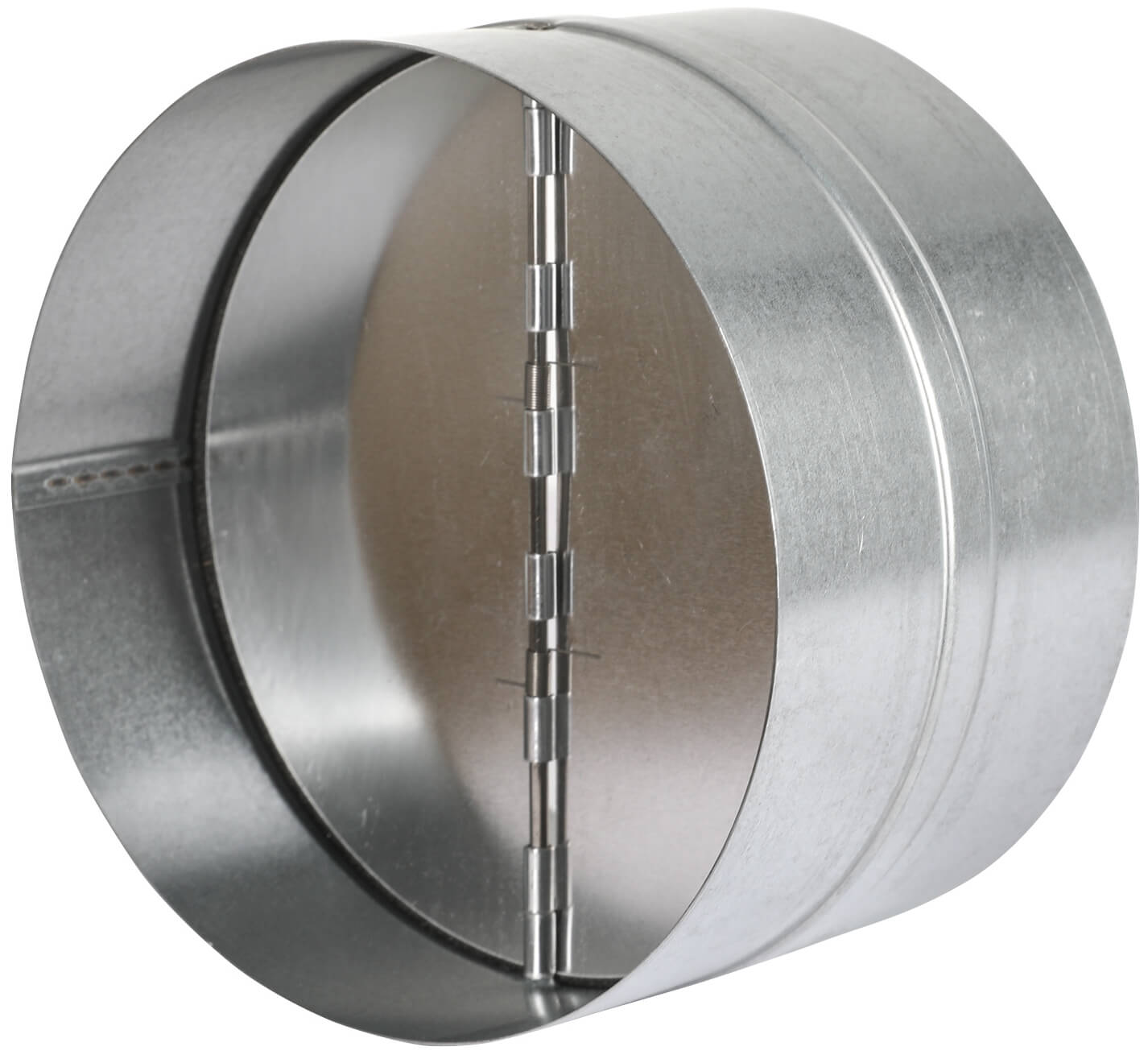

The Vortice check valve Lineo-S160 is a high-quality solution to prevent the backflow of cold outside air into your duct system when the fan is not in operation. This check valve closes automatically thanks to its spring support and is ideal for ventilation and heating in various rooms, including toilets, basements, and storage areas.

Like the other models in the Lineo series, including the Vortice check valve Lineo-S100, the Lineo-S160 features a robust construction made of galvanized steel and an aluminum blade with a rubber seal. The valve is suitable for installation on both the suction and pressure sides and can be installed both horizontally and vertically.

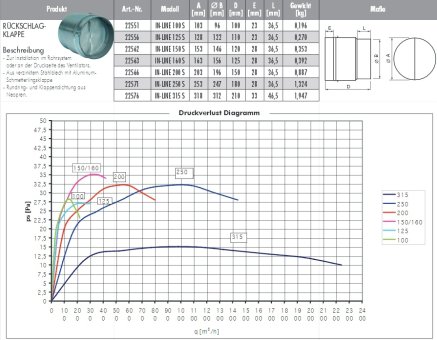

The main differences between the variants of the Vortice check valve are the different diameters. The Lineo-S160 has a diameter of 160 mm, while the Lineo-S100 has a diameter of 100 mm. These differences affect the applications and should be considered when making a selection. Here are some key points to help you choose the right variant:

• Diameter: The Lineo-S160 is suitable for 160 mm ducts.
• Material: Galvanized steel with a rubber seal ensures durability and reliability.
• Application area: Ideal for ventilation and heating systems in various rooms.
• Installation options: Horizontal and vertical installation possible, depending on needs.

Thus, the Vortice check valve Lineo-S160 is the perfect choice if you want to ensure efficient airflow in your system while avoiding cold backflows.
