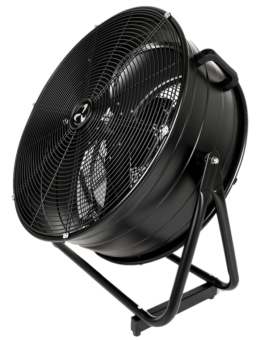

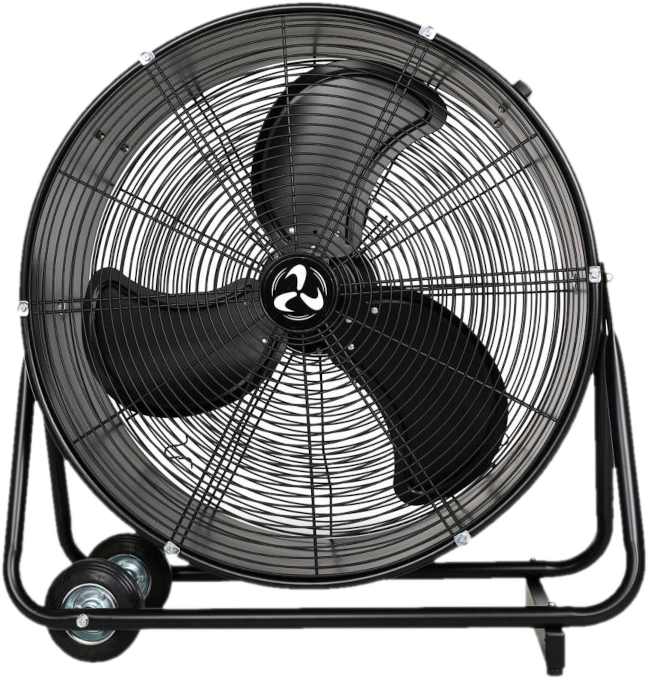

Drum ventilator DF600 ECO IP54 SL

Drum ventilator DF600 ECO, protection class IP54, steel varnished

The powerful professional wind machine, ideal for the commercial use of, for example, machine cooling in production and manufacturing with super strong airflow. Also suitable for warehouses and for professional events like discos, theatres and other stages. The pivoting fan drum allows the air flow to be directed in a targeted manner.

Product description Industrial fan
COMMERCIAL USE

• This industrial fan is, according to the machinery directive 2006/42/EC Teil 1, certified for commercial use

• Case, wings: matt black lacquer, practical handles on the case
• Airflow: through 360° vertically adjustable inclination of the drum targeted air flow of incredible 13.000 m³/h
• Protective grille: sturdy protective grille made of painted steel wire, screwed on the suction and pressure sides. Rear protective grille with cable take-up
• Stages: 3 stages adjustable via encapsulated pressure switch, all pole on/off switch
• If required by means of a 5-step transformer ETWZ 1.5 with adapter plug adjustable from a gentle breeze to a hurricane
• Suitable for commercial use. Cable 2.5m rubber sheathed cable for high mechanical load H07RN-F 3 x 1.0 mm² with earthing contact plug, IPX4
• Protection class IP54 - dust and splash-proof
• Motor - encapsulated and ball bearing motor
• Fluid temperature: - 10° to +45 °C

Technical specifications

Voltage	220-240 Volt/~50Hz
Maximum motor power	123 Watt
Special features of the floor fan	Protection class I, two-pole on/off switch, for commercial use, IP54
Impeller diameter	600 mm
Basket diameter	680 mm
Colour	lacquer matt black
Maximum air flow rate	approx. 13.000 m³/hour.
Dimensions (WxHxD)	680 x 770 x 250
Number of steps	3 Steps with encapsulated pressure switch
Maximum speed	870 rev/min
Material	steel
Cable	2,5 m Supply line H07RN-F G 3 1,0 mm²

Warranty conditions

Suitable for commercial use according to Machinery Directive Part 1!
