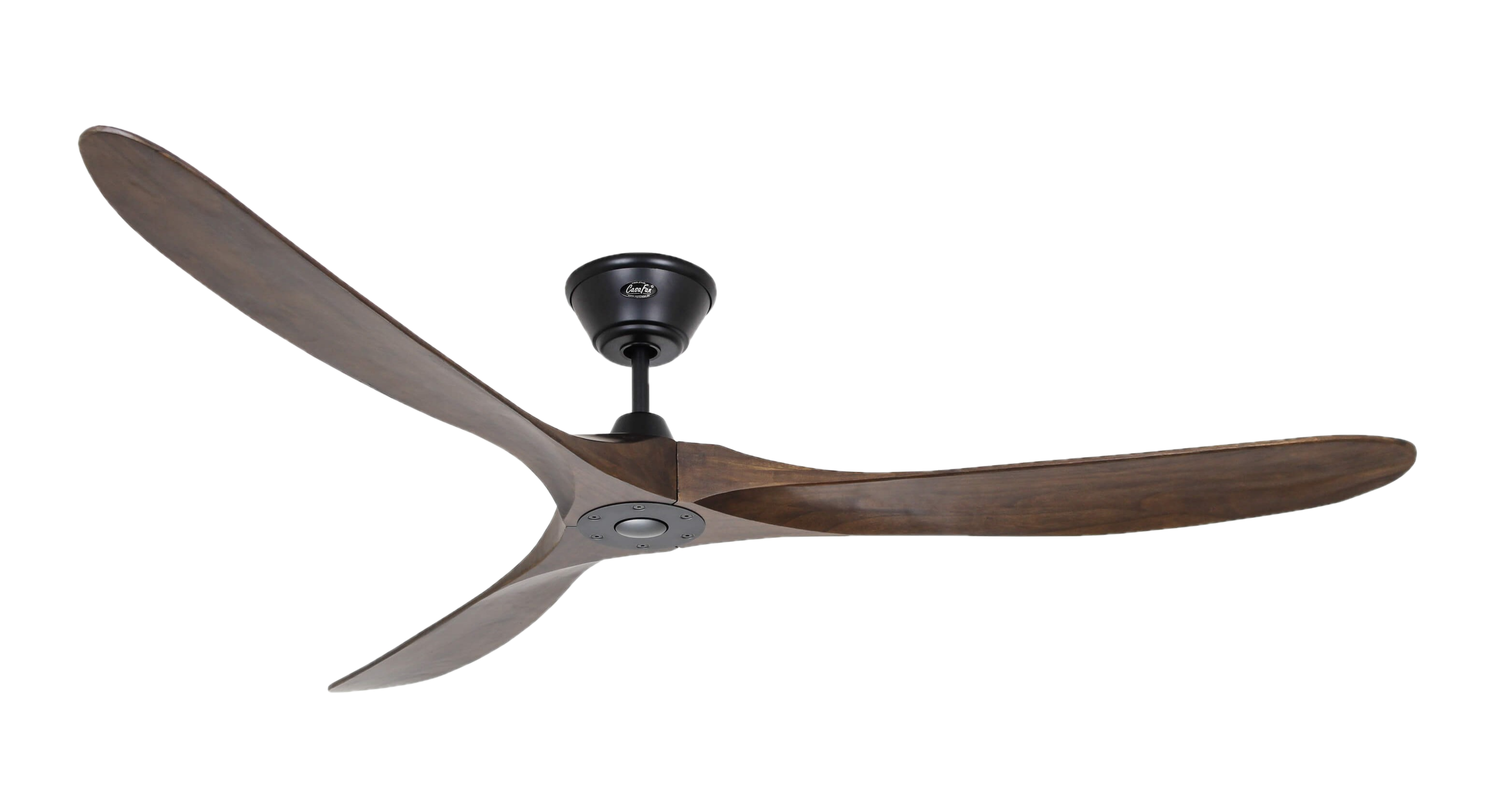

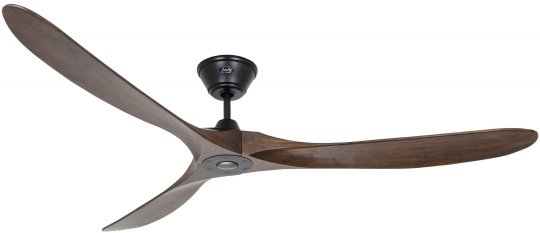

Ceiling fan Genuino 180 matte black, walnut finished from Casafan
|
Remote control Motor 6 levels, forward and reverse run. Wall mount included. |
Noble, stylish & timeless. A quiet ceiling fan with remote control from the Genuino 180 series by CasaFan, which meets all expectations. It saves hard cash not only through the DC/EC motor alone. The counter-flow function ensures reliable heating of the rooms in winter, as the warm air accumulated on the ceiling is gently & evenly distributed in the room without being noticed. The Genuino thus provides a fresh cooling effect in summer and pleasant warmth in winter.
With the supplied remote control, forward and Reverse and control the 6 levels of the motor conveniently and easily. The included ceiling rod allows mounting on sloping ceilings with an angle of up to 16°. In the case of steeper angles or higher ceilings, you can use optionally available, longer ceiling rods to help yourself and thus create an optimal room climate in your own four walls.
The Genuino is not suitable for luminaire mounting.
Advantages and technical data Genuino 180 matte black, walnut finished
Quiet with remote control
The supplied remote control with wall bracket controls Forward and reverse, as well as 6 levels. Balanced motor & blades ensure the silent run, our KlimaLex service for maximum satisfaction.
Classic and Modern

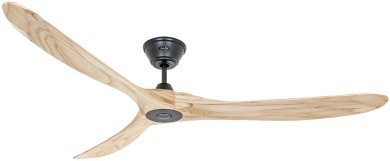

Classic with a modern twist. Cozy and elegant at the same time - the CasaFan GENUINO 180 ceiling fan is depending on Execution meets all these requirements. Warm wood colors of the 3rd Wing blades provide a feeling of security, can appear equally serious and charming. Finished walnut or natural color - you decide!
DC/EC motor
The powerful yet very quiet DC/EC motor works with patented direct current technology.
With the counter-rotation function, the GENUINO 180 can gently distribute the warm air below the ceiling throughout the room. By the way, it also supports heating in winter.
Mounting on sloping ceilings
Installation on sloping ceilings up to 16° is possible with the supplied ceiling rod. Steeper angles are also no problem if you use a longer ceiling rod that is available as an option. Easy & quick assembly with only 2 screws (Ø min. 4.5 mm at a distance of 70 - 110 mm).
| Housing color: | matte black |
| Blade decor: | walnut finished |
| Size Ø (diameter): | 180 cm |
| Number of blades: | 3 |
| Blade specials: | Wooden blades |
| No. of speeds: | 6 |
| Lighting: | not suited |
| Control: | remote control |
| Power motor min.: | 3 Watt |
| Power motor max.: | 30 Watt |
| Rev. max.: | 149 RPM |
| Voltage: | 230 Volt/~50 Hz |
| Weight: | 7,5 kg |
| Special features: | DC/EC motor |
| Style: | modern, simple |

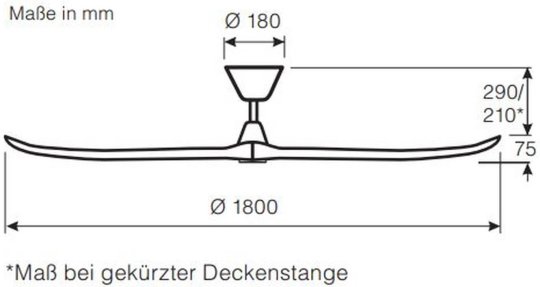

| Spacing ceiling - blades: | 285 mm / 190 mm with shortened downrod |
| Mounting on sloped ceilings: | up to 16° with included downrod, steeper angles possible with longer downrod (sold separately) |
Performance data "Genuino 180 cm"
| Fan sound power | Fan sound pressure | Speed | |||
|---|---|---|---|---|---|
| LW level 1 | below 32 dB(A) | LP - 3 m level 1 | below 15 dB(A) | level 1 | 50 (min-1) |
| LW level 2 | below 32 dB(A) | LP - 3 m level 2 | below 15 dB(A) | level 2 | 57 (min-1) |
| LW level 3 | below 32 dB(A) | LP - 3 m level 3 | below 15 dB(A) | level 3 | 77 (min-1) |
| LW level 4 | 33.7 dB(A) | LP - 3 m level 4 | below 15 dB(A) | level 4 | 95 (min-1) |
| LW level 5 | 39.4 dB(A) | LP - 3 m level 5 | 18.9 dB(A) | level 5 | 114 (min-1) |
| LW level 6 | 42.5 dB(A) | LP - 3 m level 6 | 22.0 dB(A) | level 6 | 132 (min-1) |
- Casing
- matte black
- Power
- 30 watts
- Voltage
- 230 V
- Manufacturer
- CasaFan
- Control
- remote control
- Product type
- ceiling fan
- Style
- modern
- Blade decor
- walnut finished
- Blade material
- wood
- No. of blades
- 3
- Lighting
- no
- ECO
- yes
- Diameter in cm
- 180
- Sloped ceilings
- suited
- Ceiling distance
- 285 mm - 190 mm
- Forward-/Reverse mode
- via remote control
- 0-10 V interface
- no
- Commercial use
- no
- Outdoor use
- no
- Shipping Weight
- 20 kg
