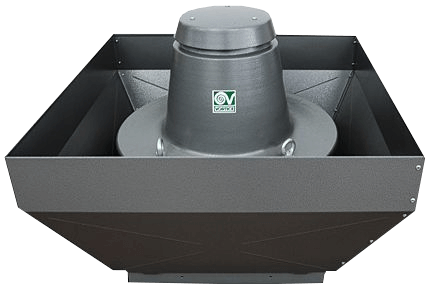

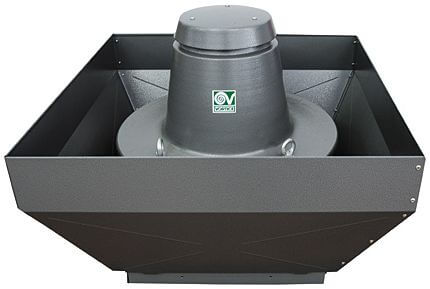

TRT 15 E-V 4P radial roof fan

Efficient Ventilation with the TRT 15 E-V 4P - 400 Volt Roof Fan

The TRT 15 E-V 4P radial roof fan from Vortice is the ideal solution for roof ventilation in commercial and industrial applications. With its powerful 400 Volt motor and an airflow of up to 1400 m³/h, this fan ensures effective air circulation and improves the indoor climate in various environments, such as offices, gyms, and restaurants.

This radial roof fan is not only robust and weather-resistant but also features a self-cleaning function. Made from galvanized steel sheet and epoxy resin, it is durable and resistant to corrosion. Its vertical discharge direction allows for targeted ventilation, making it particularly suitable for the extraction of smoke and fire gases.

The motor insulation class H guarantees high safety, as it withstands a maximum temperature of up to 180 °C. This makes the TRT 15 E-V 4P a reliable partner for continuous operation in demanding environments. Additionally, the fan is easy to install, as it comes equipped with suspension eyes and a safety wire rope.

In addition to the TRT 15 E-V 4P - 400 Volt variant, Vortice offers a range of other models, including:

• TRM 10 E-V 4P - 230 Volt: Ideal for smaller applications with an airflow of 1100 m³/h.
• TRM 20 E-V 4P - 230 Volt: With a higher airflow of 2200 m³/h for larger spaces.
• TRT 30 E-V 4P - 400 Volt: For applications requiring even stronger ventilation, with an airflow of 3100 m³/h.

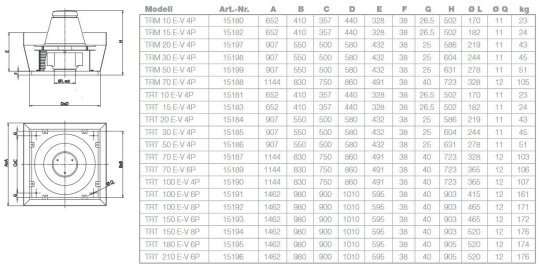

To assist in choosing the right model, we have summarized the key differences in the following overview:
