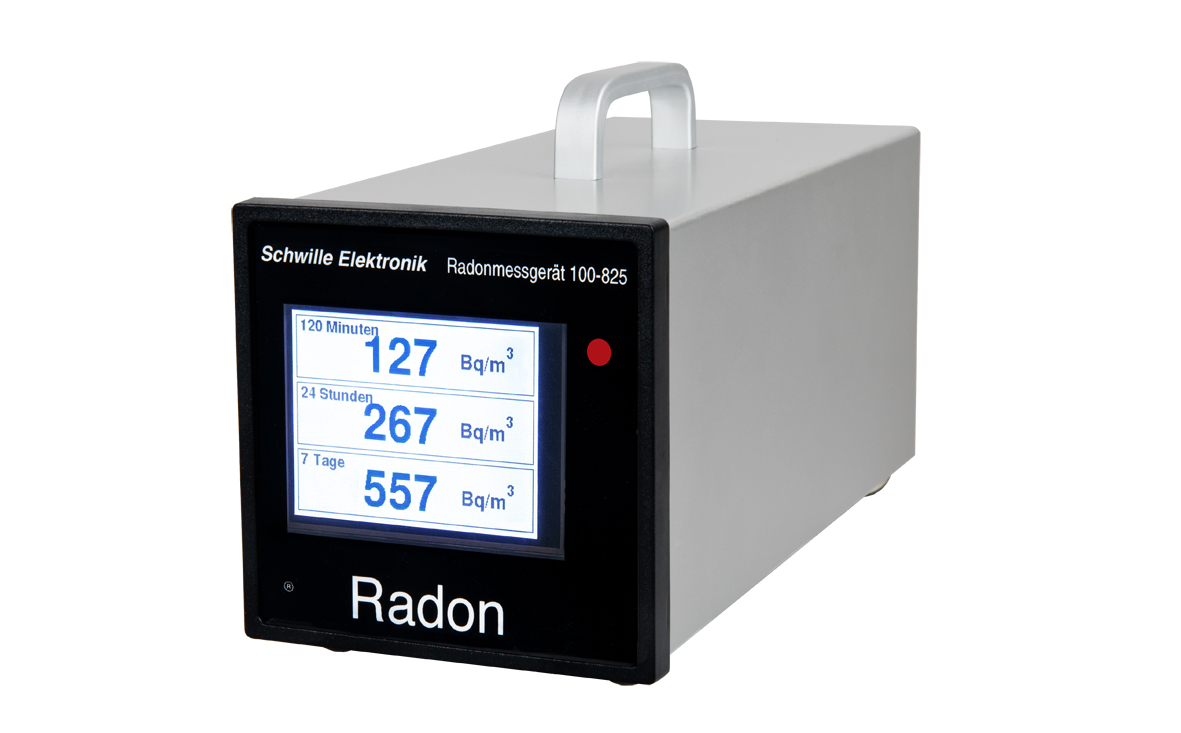

Schwille IsarCheck: radon meter for measuring radon concentration in indoor air
The Schwille IsarCheck (100-825) is a radon meter for measuring the radon concentration in homes and basements. It is placed, for example, in a central spot in the basement and starts measuring immediately after it is connected to the mains.
For a meaningful, cumulative reading, the meter should stay in the same place for several hours. In Germany, the Radiation Protection Act sets a reference level of 300 Bq/m³ as an annual average for occupied rooms. The meter shows how high the radon concentration is at its location.
Technical data
| Property | Value |
| Display | 2.8-inch LCD display, three readings |
| Power supply | 9 V plug-in power supply (included) |
| Measuring range radon | 0 to 3000 Bq/m³ |
| Accuracy | ± 10% to reference FTD400 |
| Radon sensor | integrated, HV ionisation chamber |
| Dimensions | 96 x 96 x 200 mm |
| Protection class | IP51 |
Areas of use
- Basements
- Living and occupied rooms
- Houses in regions where radon occurs
For a meaningful reading the device must stay in the same place for several hours. The assessment of the readings follows the applicable requirements.
Manufacturer: Schwille Elektronik Produktions- und Vertriebs GmbH. Technical data according to manufacturer information.
- Voltage
- 9 V (plug-in power supply)
- Manufacturer
- Schwille
- Weight
- 0.75 kg
- IP protection class
- IP51
- Display
- 2.8-inch LCD
- WEEE-Reg.-Nr. DE
- DE 865 409 15
- Measuring range
- radon 0 - 3000 Bq/m³
- Dimensions
- 96 x 96 x 200 mm
- Shipping Weight
- 1.75 kg
