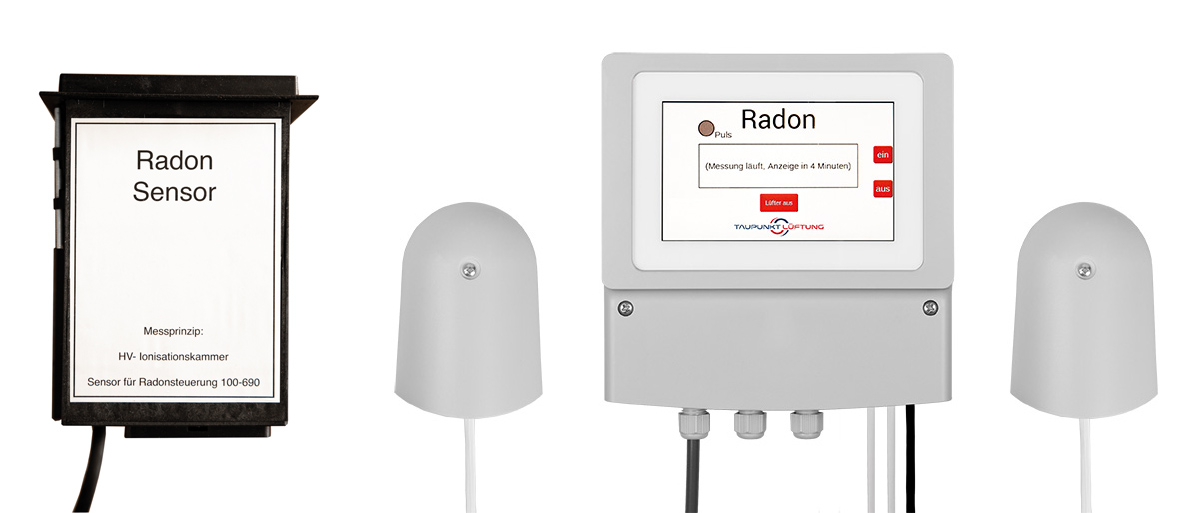

Schwille IsarAIR Bq: radon ventilation control with radon sensor
The Schwille IsarAIR Bq (100-690) is a radon ventilation control for basements and lowest floors. Radon is a naturally occurring radioactive gas that can enter buildings from the ground. The control records the radon level with a radon sensor and ventilates above an adjustable limit.

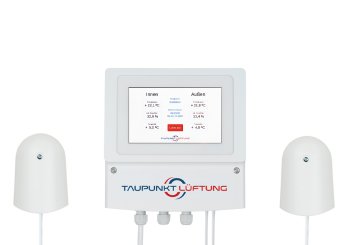

It displays the radon level in becquerel, temperature and relative humidity. Manual ventilation is also possible, and all settings of the universal ventilation control 100-660 are available. In Germany, the Radiation Protection Act sets a reference level of 300 Bq/m³ as an annual average for occupied rooms. Ventilation is a first measure to reduce the radon concentration indoors.
Technical data
| Property | Value |
| Operating voltage | 230 V / 50 Hz / 2.5 W |
| Fan current | max. 5 A, 230 V |
| Fan connection | fan terminals |
| Operation and display | 5-inch touchscreen |
| Resolution | 0.1 degrees |
| Measuring range temperature | -26 °C to +76 °C |
| Measuring range humidity | 5% to 99% |
| Measuring range dew point | -54 °C to +75 °C |
| Accuracy temperature | ± 0.5% |
| Accuracy humidity / dew point | ± 1.8% |
| Measuring range radon | 0 to 5000 Bq/m³ |
| Accuracy radon | ± 10% |
| Radon sensor principle | HV ionisation chamber |
| Radon sensor | can be placed up to 3 m away, dimensions 96 x 96 x 135 mm |
| Sensor cable length | 10 m each, special length max. 50 m per sensor |
| Wall housing dimensions | 165 x 155 x 70 mm |
| Sensor housing dimensions | 65 x 92 x 59 mm |
| Operating temperature | control and sensors: -20 °C to 50 °C |
| Mounting | wall mounting |
| Protection class | IP51 (control and sensors) |
| Data logging | hourly to microSD/SDHC card up to 4 GB (not included), CSV file |
Areas of use
- Basement rooms and lowest floors
- Buildings in regions where radon occurs in the ground
- Buildings in which the radon level is to be monitored
A radon measurement shows whether measures are needed. For questions about assessment and further measures, please consult the competent authorities.
Manufacturer: Schwille Elektronik Produktions- und Vertriebs GmbH. Technical data according to manufacturer information.
- Weight
- 1.2 kg
- IP protection class
- IP51
- Voltage
- 230 V / 50 Hz
- Display
- 5-inch touchscreen
- Manufacturer
- Schwille
- Measuring range
- temperature -26 to +76 °C, humidity 5 - 99%, dew point -54 to +75 °C, radon 0 - 5000 Bq/m³
- Power
- 2.5 watts
- WEEE-Reg.-Nr. DE
- DE 865 409 15
- Working range
- -20 to 50°C
- Dimensions
- 165 x 155 x 70 mm
- Shipping Weight
- 2.2 kg
