Schwille IsarAIR Touch+: universal ventilation control with data logging

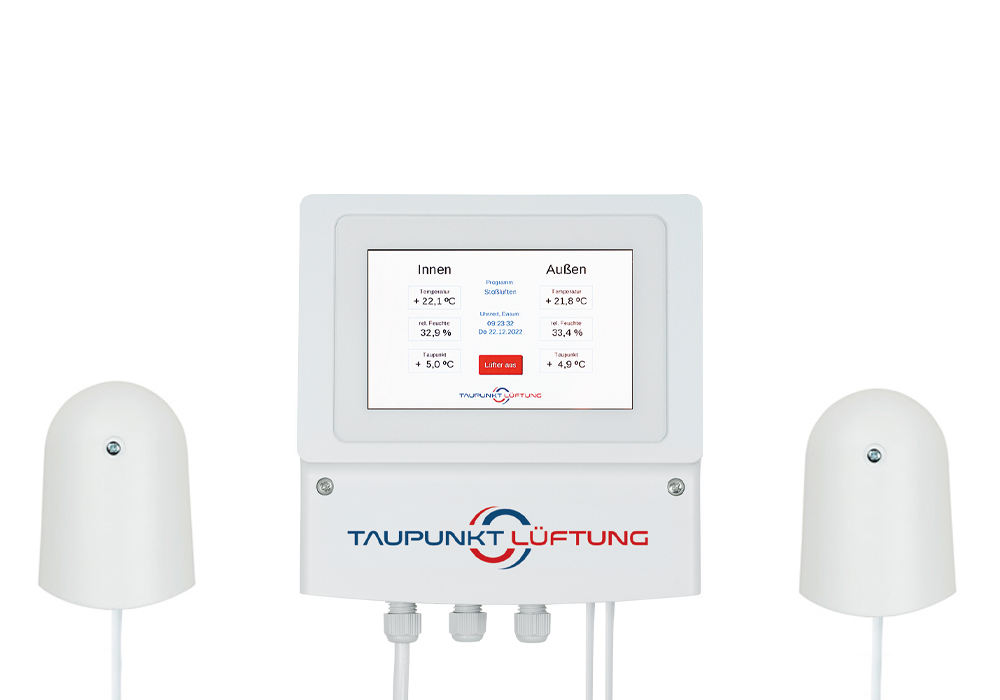

The Schwille IsarAIR Touch+ (100-660) is a universal ventilation control with a 5-inch touch display that shows all climate values at a glance. Data logging is also possible. A memory card is not included.
The control is universally applicable, for example in basements, vaulted cellars, laundry rooms, drying rooms, conservatories, churches and listed buildings. It combines dew point, drying room and wine cellar ventilation. Additional functions include sensor failure detection, data logging, night shutdown and an operating hours counter.
Technical data
| Property | Value |
| Operating voltage | 230 V / 50 Hz / 2.5 W |
| Fan current | max. 5 A, 230 V |
| Fan connection | fan terminals |
| Operation and display | 5-inch touchscreen |
| Resolution | 0.1 degrees |
| Measuring range temperature | -26 °C to +76 °C |
| Measuring range humidity | 5% to 99% |
| Measuring range dew point | -54 °C to +75 °C |
| Accuracy temperature | ± 0.5% |
| Accuracy humidity / dew point | ± 1.8% |
| Sensor cable length | 10 m each, special length max. 50 m per sensor |
| Wall housing dimensions | 165 x 155 x 70 mm |
| Sensor housing dimensions | 65 x 92 x 59 mm |
| Operating temperature | control and sensors: -20 °C to 50 °C |
| Mounting | wall mounting |
| Protection class | IP51 (control and sensors) |
| Data logging | hourly to microSD/SDHC card up to 4 GB (not included), CSV file |
Areas of use
- Basements, vaulted cellars and archive cellars
- Laundry cellars, drying rooms and conservatories
- Wine cellars
- Churches and listed buildings
- Residential complexes
The achievable effect depends on room size, construction, number of fans and outdoor conditions. A specific dehumidification performance is not guaranteed. The programs allow dew point, drying room and wine cellar operation to be set.
Scope of delivery
- Universal ventilation control TOUCH with data logging

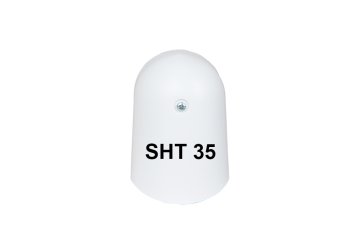

- Indoor sensor
- Outdoor sensor
- 2 x 10 m sensor cable
Notes
- A memory card is not included.
Manufacturer: Schwille Elektronik Produktions- und Vertriebs GmbH. Technical data according to manufacturer information.
- IP protection class
- IP51
- Manufacturer
- Schwille
- Measuring range
- temperature -26 to +76 °C, humidity 5 - 99%, dew point -54 to +75 °C
- Display
- 5-inch touchscreen
- Working range
- -20 to 50°C
- Power
- 2.5 watts
- Weight
- 1.5 kg
- Voltage
- 230 V / 50 Hz
- WEEE-Reg.-Nr. DE
- DE 865 409 15
- Dimensions
- 165 x 155 x 70 mm
- Shipping Weight
- 2.5 kg
