Schwille IsarAIR Touch: universal ventilation control with indoor and outdoor sensor

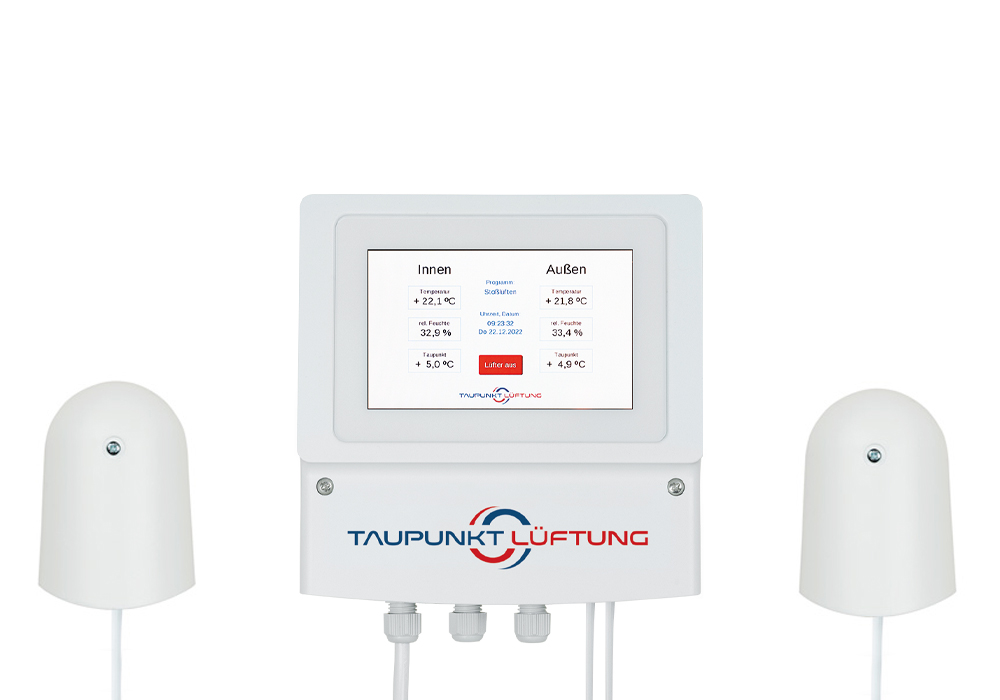

The Schwille IsarAIR Touch (100-650) is a universal ventilation control with touch operation, including indoor and outdoor sensor and 2 x 10 m sensor cable.
The control is universally applicable, for example in basements, vaulted cellars, laundry rooms, drying rooms, conservatories, churches and listed buildings. It combines dew point, drying room and wine cellar ventilation. Additional functions include sensor failure detection, night shutdown and an operating hours counter.
Technical data
| Property | Value |
| Operating voltage | 230 V / 50 Hz / 2.5 W |
| Fan current | max. 5 A, 230 V |
| Fan connection | fan terminals |
| Operation and display | 5-inch touchscreen |
| Resolution | 0.1 degrees |
| Measuring range temperature | -26 °C to +76 °C |
| Measuring range humidity | 5% to 99% |
| Measuring range dew point | -54 °C to +75 °C |
| Accuracy temperature | ± 0.5% |
| Accuracy humidity / dew point | ± 1.8% |
| Sensor cable length | 10 m each, special length max. 50 m per sensor |
| Wall housing dimensions | 165 x 155 x 70 mm |
| Sensor housing dimensions | 65 x 92 x 59 mm |
| Operating temperature | control and sensors: -20 °C to 50 °C |
| Mounting | wall mounting |
| Protection class | IP51 (control and sensors) |
Areas of use
- Basements, vaulted cellars and archive cellars
- Laundry cellars, drying rooms and conservatories
- Wine cellars
- Churches and listed buildings
- Residential complexes
The achievable effect depends on room size, construction, number of fans and outdoor conditions. A specific dehumidification performance is not guaranteed. The programs allow dew point, drying room and wine cellar operation to be set.
Scope of delivery
- Universal ventilation control TOUCH
- Indoor sensor
- Outdoor sensor
- 2 x 10 m sensor cable
Manufacturer: Schwille Elektronik Produktions- und Vertriebs GmbH. Technical data according to manufacturer information.
- Working range
- -20 to 50°C
- Measuring range
- temperature -26 to +76 °C, humidity 5 - 99%, dew point -54 to +75 °C
- Weight
- 1.5 kg
- Voltage
- 230 V / 50 Hz
- Power
- 2.5 watts
- IP protection class
- IP51
- Display
- 5-inch touchscreen
- Manufacturer
- Schwille
- WEEE-Reg.-Nr. DE
- DE 865 409 15
- Dimensions
- 165 x 155 x 70 mm
- Shipping Weight
- 2.5 kg
