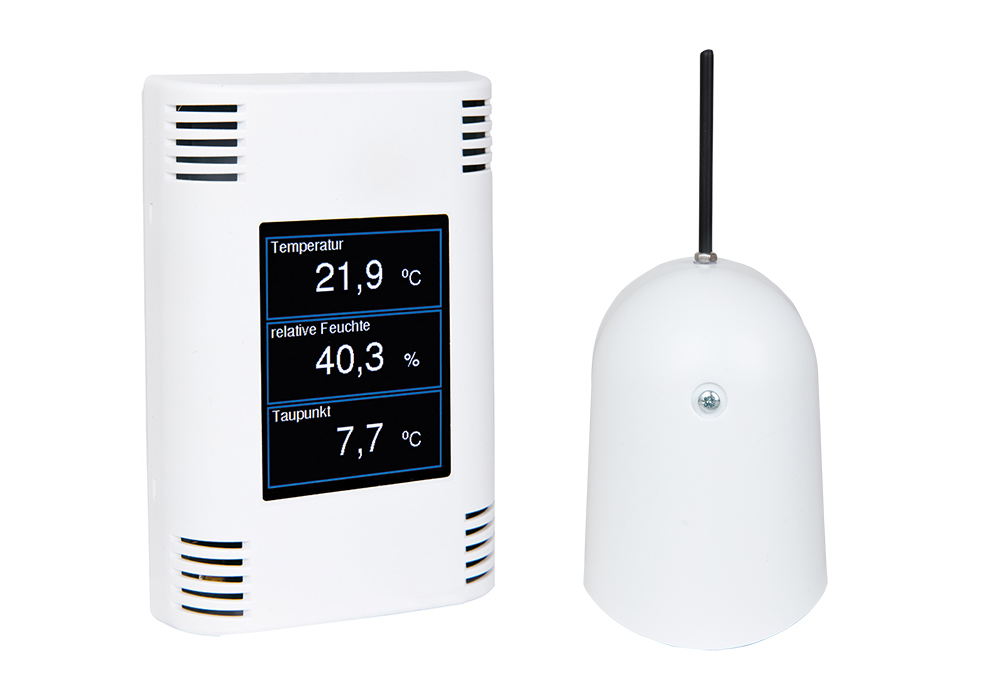

Schwille IsarAIR WLAN+: WiFi ventilation control with wireless outdoor sensor
The Schwille IsarAIR WLAN+ (100-628) is a WiFi ventilation control built on the technology of the Touch universal control 100-650. Indoor sensor and wireless outdoor sensor work without cables, and the fans are also controlled by radio. This saves laying cables through basements, garages or outdoor areas and suits new and old buildings alike.
Readings and settings can be viewed and changed via the home WiFi or on the go with a smartphone or tablet, even remotely. Warm outside air can contain a lot of moisture. If it enters a cool basement, the moisture can condense on cold walls. A dew point ventilation control measures temperature and humidity inside and outside, calculates the dew point and switches the fans on only when the outside air can absorb moisture.
Technical data
| Property | Value |
| Operating voltage | 12 V / 1 A (plug-in power supply) |
| Fan current | max. 5 A, 230 V |
| Operation and display | 2.4-inch touch display |
| Connectivity | WiFi, wireless outdoor sensor and fan control by radio |
| Indoor sensor | integrated |
| Resolution | 0.1 degrees |
| Measuring range temperature | -26 °C to +76 °C |
| Measuring range humidity | 5% to 99% |
| Measuring range dew point | -54 °C to +75 °C |
| Accuracy temperature | ± 0.5%, ± 2 digits |
| Accuracy humidity | ± 1.8%, ± 3 digits |
| Accuracy dew point | ± 1.8%, ± 2 digits |
| Wall housing dimensions | 80 x 120 x 35 mm |
| Wireless outdoor sensor | CR2450 battery, approx. 1 year battery life, dimensions 65 x 92 x 59 mm (height incl. antenna approx. 140 mm) |
| Operating temperature | control and sensors: -20 °C to 50 °C |
| Mounting | wall mounting |
| Protection class control | IP51 |
Areas of use
- New and old buildings
- Occupied rooms where no cables are to be laid
- Basements, garages, wine cellars, laundry and drying rooms
- Outdoor areas where a wireless outdoor sensor is sufficient
The achievable effect depends on room size, construction, number of fans and outdoor conditions. A specific dehumidification performance is not guaranteed.
Scope of delivery
- IsarAIR WLAN+ ventilation control
- Indoor sensor (integrated)
- Wireless outdoor sensor
- 12 V plug-in power supply
Manufacturer: Schwille Elektronik Produktions- und Vertriebs GmbH. Technical data according to manufacturer information.
- Display
- 2.4-inch touch display
- WiFi
- yes
- Voltage
- 12 V (plug-in power supply)
- IP protection class
- IP51
- Manufacturer
- Schwille
- Working range
- -20 to 50°C
- WEEE-Reg.-Nr. DE
- DE 865 409 15
- Weight
- 0.8 kg
- Measuring range
- temperature -26 to +76 °C, humidity 5 - 99%, dew point -54 to +75 °C
- Dimensions
- 80 x 120 x 35 mm
- Shipping Weight
- 1.8 kg
