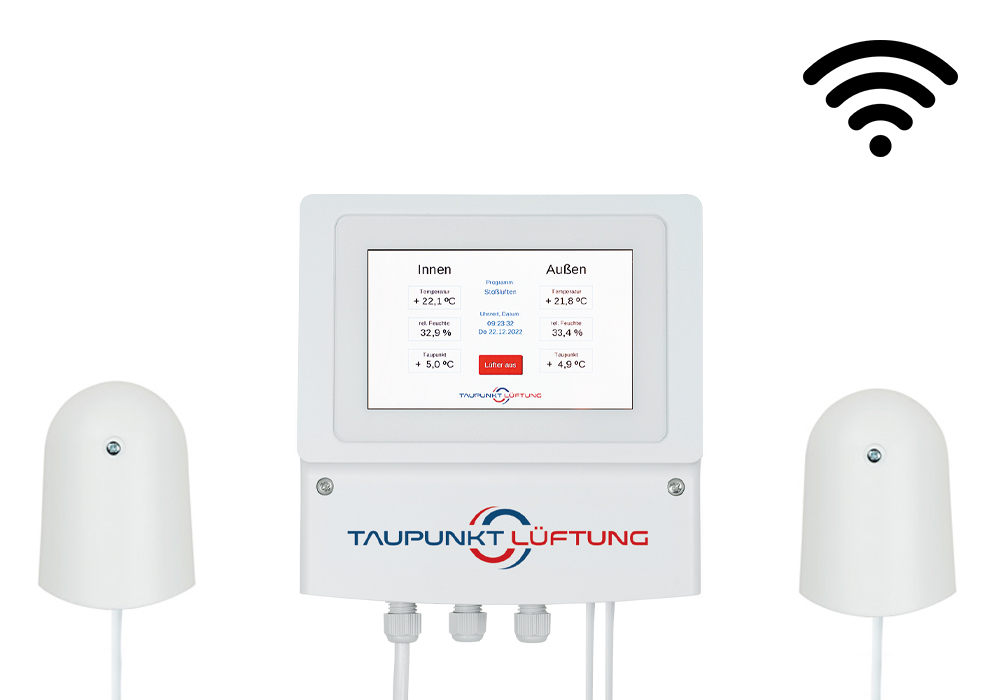

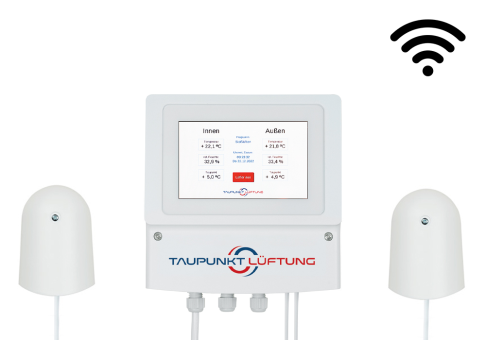

Schwille IsarAIR WLAN: universal touch ventilation control with 230 V plug
The Schwille IsarAIR WLAN (100-670) is a WiFi universal ventilation control with touch operation, wired indoor and outdoor sensor and a 230 V plug. It is intended for basements, garages, wine cellars, laundry rooms, drying rooms, conservatories, holiday homes, churches and listed buildings.
Warm outside air can contain a lot of moisture. If it enters a cool basement, the moisture can condense on cold walls. A dew point ventilation control measures temperature and humidity inside and outside, calculates the dew point and switches the fans on only when the outside air can absorb moisture.
Technical data
| Property | Value |
| Operating voltage | 230 V / 50 Hz / 2.5 W |
| Fan current | max. 5 A, 230 V |
| Fan connection | fan terminals |
| Operation and display | 5-inch touchscreen |
| Connectivity | WiFi (setup and monitoring via computer, tablet or smartphone) |
| Resolution | 0.1 degrees |
| Measuring range temperature | -26 °C to +76 °C |
| Measuring range humidity | 5% to 99% |
| Measuring range dew point | -54 °C to +75 °C |
| Accuracy temperature | ± 0.5% |
| Accuracy humidity / dew point | ± 1.8% |
| Sensor cable length | 10 m each, special length max. 50 m per sensor |
| Wall housing dimensions | 165 x 155 x 70 mm |
| Sensor housing dimensions | 65 x 92 x 59 mm |
| Operating temperature | control and sensors: -20 °C to 50 °C |
| Mounting | wall mounting |
| Protection class | IP51 (control and sensors) |
| Data logging | hourly, log file can be downloaded via browser |
Areas of use
- Basements, garages, wine cellars, laundry and drying rooms
- Conservatories, holiday homes and holiday apartments
- Churches and listed buildings
The achievable effect depends on room size, construction, number of fans and outdoor conditions. A specific dehumidification performance is not guaranteed.
Manufacturer: Schwille Elektronik Produktions- und Vertriebs GmbH. Technical data according to manufacturer information.
- Power
- 2.5 watts
- WEEE-Reg.-Nr. DE
- DE 865 409 15
- Measuring range
- temperature -26 to +76 °C, humidity 5 - 99%, dew point -54 to +75 °C
- Voltage
- 230 V / 50 Hz
- IP protection class
- IP51
- Working range
- -20 to 50°C
- Weight
- 0.8 kg
- Display
- 5-inch touchscreen
- Manufacturer
- Schwille
- WiFi
- yes
- Dimensions
- 165 x 155 x 70 mm
- Shipping Weight
- 1.8 kg
