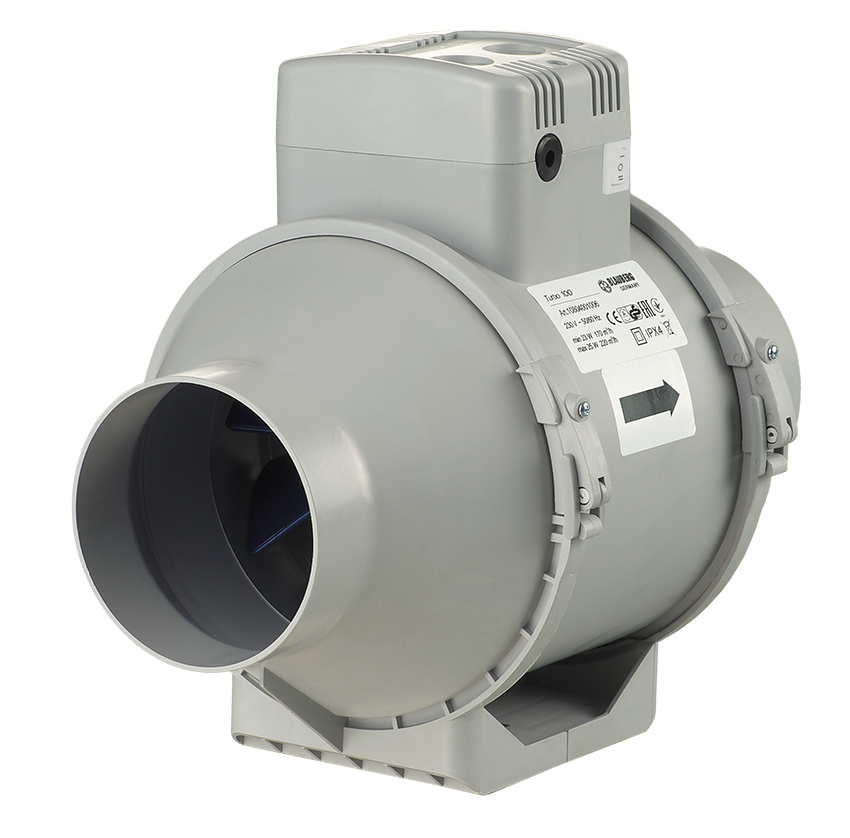

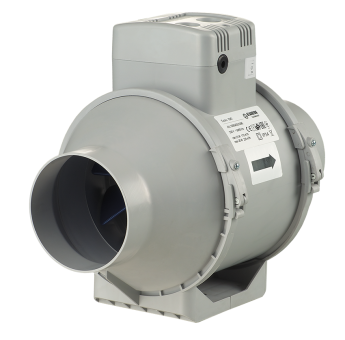

Schwille IsarVENT 169B: duct fan Ø 100 mm for wall bore
The Schwille duct fan IsarVENT 169B is designed for 100-mm- wall bores and existing pipes. It is suitable when a wall fan does not fit into a core bore or window, for example because pipes have already been laid or only small core bores exist.
The manufacturer recommends it for basements up to 60 m². As a duct fan it can be combined with a Schwille dew point ventilation control, which runs the fan only when the outside air can absorb moisture.
Technical data
| Property | Value |
| Wall bore | 100 mm |
| Supply voltage | 230 V |
| Speed | 1980 / 2545 rpm |
| Power consumption | 23 / 25 watts |
| Air flow | 170 / 220 m³/h |
| Sound pressure | 27 / 32 dB(A) |
| Manufacturer's recommendation | basements up to 60 m² |
| WEEE reg. no. DE | DE 865 409 15 |
Areas of use
- Basements with existing pipes or small core bores
- Rooms where a wall or window fan cannot be installed, for example with missing or renovated windows
- Operation together with a dew point ventilation control
The achievable effect depends on room size, construction, number of fans and outdoor conditions. A specific dehumidification performance is not guaranteed.
Manufacturer: Schwille Elektronik Produktions- und Vertriebs GmbH. Technical data according to manufacturer information.
- WEEE-Reg.-Nr. DE
- DE 865 409 15
- Connection diameter
- 100 mm
- Sound pressure
- 27 / 32 db(A)
- Product type
- duct fan
- Weight
- 1 kg
- Manufacturer
- Schwille
- Power
- 23 / 25 watts
- Voltage
- 230 V
- Air output
- 170 / 220 m³/h
- Revolutions
- 1980 / 2545 rpm
- Shipping Weight
- 2 kg
