Schwille IsarVENT small: fan Ø 150 mm for dew point ventilation
The Schwille fan Ø 150 mm is a wall and window fan for dew point ventilation systems. Its motor has overload protection and a plain bearing. It opens when switched on, and an internal closure shuts the fan flaps when it is off. The air direction can be set as supply or exhaust air with a wire jumper.
Together with a Schwille dew point ventilation control, the fan runs only when the outside air contains less moisture than the room air. Typical places of use are basements, garages, storage rooms and laundry rooms. A screw set for wall installation is available as an accessory.
Features and benefits of the Schwille fan Ø 150 mm
| Feature | Benefit |
| Designed for dew point ventilation | Suitable for the automatic ventilation of rooms together with a Schwille dew point ventilation control |
| Internal closure | Fan flaps close when the fan is off |
| Adjustable air direction | Can be set as supply or exhaust air fan via wire jumper |
| Wall and window installation | Flexible installation options |
| Motor | With overload protection and plain bearing |
| Sound pressure | 37.5 dB(A) (at 3 m) according to datasheet |
Technical data
| Property | Value |
| Fan diameter | Ø 150 mm |
| Glass cutout diameter | 186 mm |
| Core bore diameter | 200 mm |
| Air flow (fan capacity) | 235 m³/h |
| Power consumption | max. 25 watts |
| Speed | 1340 rpm |
| Sound pressure | 37.5 dB(A) (at 3 m) |

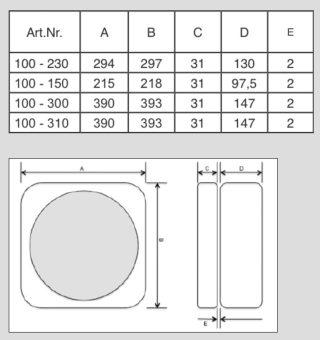

| Front plate dimensions (A x B) | 215 x 218 mm |
| Weight | approx. 2.07 kg |
Areas of use
- Basements and vaulted cellars
- Garages, storage and utility rooms
- Laundry and drying rooms
- Wine cellars
- Holiday homes and conservatories
The achievable effect depends on room size, construction, number of fans and outdoor conditions. A specific dehumidification performance is not guaranteed. As a wall or window fan it is suitable where a core bore or window cutout of the matching size can be made.
Use in basements and garages
The fan is often used in basements and other unheated rooms. Together with a dew point ventilation control, ventilation runs automatically: the control releases the fan only when the outside air contains less moisture than the room air, so that humid summer air is not drawn in unnecessarily. The result depends on the room, the construction and the conditions.
Flexible installation
The fan can be installed in walls as well as in windows. The air direction can be changed by wire jumper, so the fan can be used as a supply air or exhaust air fan depending on the system concept. When the fan is off, an internal closure closes the fan flaps.
Schwille fan Ø 150 mm: selection guide
The Schwille fan Ø 150 mm is intended for dew point ventilation systems. Whether its capacity suits your room depends on room size, construction, number of fans and outside conditions; no specific dehumidification performance is guaranteed. If you are unsure about the layout, we are happy to advise you.
Matching accessories
- 100-151 mounting plate
- 100-142 insect screen with adapter plate (window installation)
- 100-147 insect screen (wall installation)
Manufacturer: Schwille Elektronik Produktions- und Vertriebs GmbH. Technical data according to manufacturer information.
| Image | Article | Fan diameter | Ø Bore | Performance | Sound pressure | Item No. | Price |
|---|---|---|---|---|---|---|---|
.png) |
Schwille fan Ø 150 mm, 235 m³/h | 150 mm | 185 - 195 mm | 25 watt | 37,5 db(A) | 100-150 | 169,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Schwille fan Ø 230 mm, 480 m³/h | 230 mm | 257 - 262 mm | 26 watt | 35,6 db(A) | 100-230 | 319,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Schwille fan Maxi Ø 300 mm, 1,050 m³/h | 300 mm | 324 - 329 mm | 45 watt | 40,2 db(A) | 100-300 | 519,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
- Weight
- 2.07 kg
- Sound pressure
- 37.5 db(A)
- Air output
- 235 m³/h
- Width
- 215
- Wall bore / glass cutout
- 186 mm (glass cutout), 200 mm (core bore)
- Color
- white
- Height
- 218
- Connection diameter
- 150 mm
- Manufacturer
- Schwille
- Power
- 25 watts
- Diameter in cm
- 15
- Revolutions
- 1340 RPM
- Shipping Weight
- 3.07 kg
