Tube ventilator MG 120 LL
- The Vortice axial duct fan from the Punto Ghost series is ideal for direct ventilation and exhaust in small and medium-sized living rooms or business premises. It is very quiet and also supports the transport of heat air into neighboring rooms.
- The axial tube insertion fan MG 120 LL is characterized by its minimal dimensions, its use in wall and ceiling openings or its insertion in short ducts. It is also designed for damp rooms.
- The motor of the Vortice tube fan ensures long-term and low-noise continuous operation thanks to its thermal overload protection. The speed can be regulated using a Vortice control unit.
- The optimized axial impeller ensures high air performance with low noise emissions.
| Nominal size (NW) | 120 |
| Material | ABS plastic, UV-resistant |
| Color | white |
| Protection class | IPX4 |
| Protection class | II |
| Supply voltage | 230-240 volts / ~50 Hz |
| Maximum power | 20 watts |
| Maximum current consumption | 0,12 amps |
| Maximum speed | 2250 rpm |

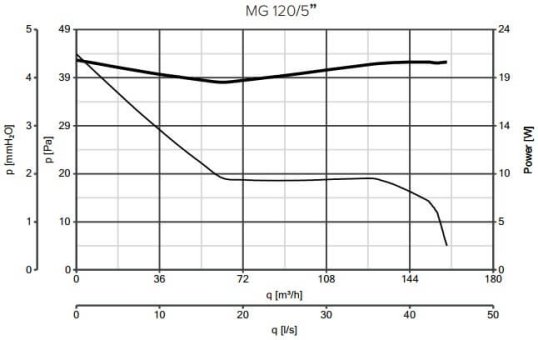

| Maximum air output | 160 m³/h |
| Maximum pressure | 44 PA |
| Sound pressure level -3m | 43 dB(A) |
| Maximum temperature | +50 °C |
| Weight | 0,56 kg |

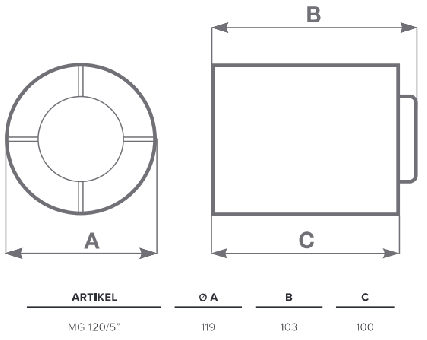

| Diameter | 119 mm |
| Length | 103 mm |
| Motor | variable speed, ball bearings, thermal overload protection |
| Installation | horizontally, vertically or diagonally |
| Fan type | insert fan, small room fan, duct fan |
| Picture | Article | Diameter | Air performance | Revolutions | Pressure | Soundpressure | Product No. | Price |
|---|---|---|---|---|---|---|---|---|
 |
92.5 mm | 65 m³/h | 2450 R/min | 21 Pa | 38 dB(A) | 11110 | 54.99 € Price incl. 19% VAT plus Shipping |
|
| |
99 mm | 80 m³/h | 2415 R/min | 25 Pa | 39 dB(A) | 11100 | 79.99 € Price incl. 19% VAT plus Shipping |
|
| |
99 mm | 80 m³/h | 2415 R/min | 25 Pa | 39 dB(A) | 11101 | 109.99 € Price incl. 19% VAT plus Shipping |
|
| |
119 mm | 160 m³/h | 2250 R/min | 44 Pa | 43 dB(A) | 11102 | 89.99 € Price incl. 19% VAT plus Shipping |
|
| |
119 mm | 160 m³/h | 2250 R/min | 44 Pa | 43 dB(A) | 11103 | 119.99 € Price incl. 19% VAT plus Shipping |
|
| |
155 mm | 89 m³/h | 2200 R/min | 69 Pa | 48 dB(A) | 11104 | 139.99 € Price incl. 19% VAT plus Shipping |
|
| |
155 mm | 88.9 m³/h | 2200 R/min | 69 Pa | 48 dB(A) | 11105 | 169.99 € Price incl. 19% VAT plus Shipping |
- Air output
- 160 m³/h
- Temperature max.
- 50 °C
- Voltage
- 230 volt ~ 50 Hz
- Power
- 20 watts
- Sound pressure
- 43.0 dB(A)
- Fan
- Duct fan, Fan for domestic use, insert fan
- Air pressure max in Pa
- 44 Pa
- Color
- white
- Amperage
- 0.12 A
- Material
- ABS plastic, UV-resistant
- Protection class
- II
- Revolutions
- 2,250 RPM
- Type of protection
- IPX4
- Specials
- ball bearing mounted (LL)
- Dimensions
- 120 mm
