Punto axial tube ventilator MG 100 LL

Efficient Ventilation with the Punto Axial Tube Ventilator MG 100 LL

The Punto Axial Tube Ventilator MG 100 LL from the renowned Vortice Ghost series is the perfect solution for effective ventilation and air circulation in small to medium-sized rooms. With its compact design, this tube ventilator is ideal for wall and ceiling openings, as well as for use in short ducting. Thanks to its quiet operation, it is particularly pleasant in living spaces and offices without producing disruptive noises.

This ventilator is designed for humid environments and offers high operational safety through its thermal overload protection. The speed can be adjusted via a Vortice control device, allowing for flexible use. The optimized axial impeller ensures high air performance while maintaining low sound emissions.

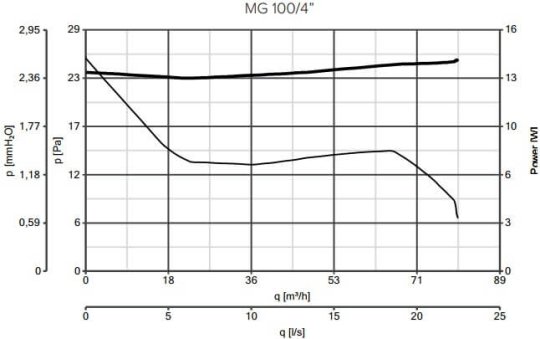

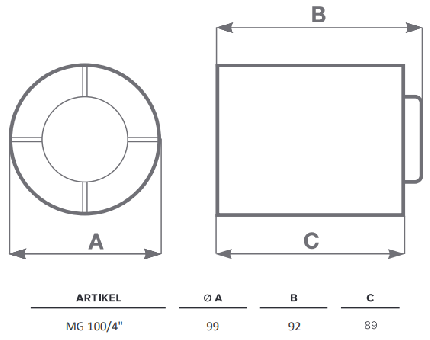

The MG 100 LL variant differs from the model Punto axial tube ventilator MG 120 LL mainly in nominal diameter and air performance. While the MG 120 LL model has a nominal diameter of 120 mm and a maximum air output of 160 m³/h, the MG 100 LL has a nominal diameter of 99 mm with a maximum air output of 80 m³/h. These differences make the choice of the right ventilator crucial depending on the specific requirements of your space.

• Compact Design: The MG 100 LL is ideal for tight spaces and is easy to install.
• Quiet Operation: Perfect for residential and work environments where silence is important.
• Energy Efficiency: With a maximum current consumption of only 0.12 Amperes, this ventilator is particularly economical.

Below is an overview of the key similarities and differences between the variants of the Punto Axial Tube Ventilators:
