Midea Xtreme Save Pro 18 Split Air Conditioner Set (7.0 kW (1.55-8.21 kW)) with Quick-Connect – Efficient Cooling and Heating
The Midea Xtreme Save Pro 18 is a modern split air conditioner featuring energy-efficient inverter technology for rooms up to up to approx. 75 m² (190 m³). It provides pleasant cooling on hot summer days while offering a reliable heating function for transitional periods or cold winter days. Thanks to high energy efficiency, quiet operation, and numerous comfort features, this air conditioning unit is ideal for living rooms, bedrooms, offices, holiday apartments, or small commercial spaces.
This model is delivered as a Quick-Connect Set with pre-charged refrigerant lines. The quick-connect couplings significantly simplify installation between the indoor and outdoor units, reducing overall assembly effort.
- 7.0 kW (1.55-8.21 kW) cooling capacity for rooms up to up to approx. 75 m² (190 m³)
- 7.3 kW (1.55-8.21 kW) heating capacity for comfortable temperatures even on cooler days
- Energy efficiency class A++ for cooling and A+ for heating
- Quiet operation starting at just 21 dB(A) in Silent Mode
- Quick-Connect System with pre-charged quick-release lines
- Integrated Wi-Fi for control via the MSmartHome app
- Compatible with Amazon Alexa and Google Assistant
- 3D Airflow for even air distribution
- Follow Me Function with a temperature sensor built into the remote control
- Eco Mode for reduced energy consumption
- 8 °C Frost Protection Function for infrequently used rooms
- Self-Clean Function for a hygienic indoor unit
High Energy Efficiency with Modern Inverter Technology
The Xtreme Save Pro operates with an advanced Inverter Quattro™ compressor that continuously adapts its performance to actual cooling or heating demands. This reduces temperature fluctuations while saving energy. With a seasonal energy efficiency rating of SEER 6,4 in cooling mode and SCOP 4 in heating mode, the unit meets high standards for cost-effective operation.
Additionally, the integrated Alpha Energy Chip with a modern control algorithm supports exceptionally precise power management. In Eco Mode, energy consumption can be further reduced according to the manufacturer, without compromising a comfortable indoor climate.
Pleasantly Quiet for Living Rooms and Bedrooms
In Silent Mode, the indoor unit operates at sound levels starting as low as 21 dB(A), making it ideal for bedrooms, children's rooms, or home offices. Despite its quiet operation, the powerful fan ensures even air distribution throughout the room.
The 3D Airflow function distributes air both horizontally and vertically. This ensures uniform room temperatures and helps prevent uncomfortable drafts.
Smart Control – Full Command at Any Time
The integrated Wi-Fi module allows convenient control of the air conditioner via the MSmartHome App. Temperature, operating mode, fan speed, or timers can be adjusted on the go. Furthermore, the unit is compatible with Amazon Alexa and Google Assistant, enabling voice control whenever desired.
For added convenience, the system includes numerous intelligent features such as the Follow Me Function, where the temperature sensor inside the remote control measures ambient temperature at your location and adjusts cooling or heating output accordingly.
Clean Air and Convenient Extra Features
In addition to climate control, the Xtreme Save Pro enhances indoor air quality. The multi-stage filtration system—equipped with an HD Filter, Cold Catalyst Filter, and Air Magic Ionizer—helps improve indoor air quality by reducing odors and airborne particles, according to the manufacturer.
The integrated Self-Clean Function automatically cleans the indoor heat exchanger through a specialized freezing and defrosting process. This minimizes moisture build-up and contaminants, contributing to a more hygienic operation.
Ideal for Various Applications
With its high energy efficiency, quiet operation, and user-friendly controls, the Midea Xtreme Save Pro is perfectly suited for:
- Living rooms
- Bedrooms
- Children's rooms
- Home offices
- Commercial offices
- Holiday homes
- Medical practices and treatment rooms
- Small commercial spaces
| Property | Details |
|---|---|
| Performance Data & Efficiency | |
| Model | Xtreme Save Pro 18 |
| Indoor Unit | MSAGDU-24HRFN8-ME |
| Outdoor Unit | MOX401-24HFN8-ME |
| Cooling Capacity (nominal) | 7.0 kW (1.55-8.21 kW) |
| Heating Capacity (nominal) | 7.3 kW (1.55-8.21 kW) |
| Recommended Room Size | up to approx. 75 m² (190 m³) |
| Energy Efficiency Class (Cooling) | A++ |
| Energy Efficiency Class (Heating - average climate zone) | A+ |
| SEER | 6,4 |
| SCOP | 4 |
| Annual Energy Consumption (Cooling) | 383 kWh/year |
| Annual Energy Consumption (Heating) | 1.715 kWh/year |
| Indoor Unit | |
| Sound Pressure Level | 21 / 34.5 / 37 / 46 dB(A) (Silent / Low / Medium / High) |
| Sound Power Level | 62 dB(A) |
| Airflow Rate | 610 / 770 / 1,090 m³/h (Low / Medium / High) |
| Dimensions (W × H × D) | 1,083 x 244 x 336 mm |
| Weight | 13,6 kg |
| Outdoor Unit | |
| Sound Pressure Level | 60 dB(A) |
| Sound Power Level | 67 dB(A) |
| Dimensions (W × H × D) | 890 x 342 x 673 mm |
| Weight | 43,9 kg |
| Operating Range (Cooling) | -15 °C to +50 °C outdoor temperature |
| Operating Range (Heating) | -20 °C to +24 °C outdoor temperature |
| Electrical Data & Refrigerant | |
| Power Supply | 230 V / 1 Phase / 50 Hz |
| Power Input (Cooling) | 2,420 wattss (340-3,450 wattss) |
| Power Input (Heating) | 2,130 wattss (300-3,100 wattss) |
| Operating Current (Cooling) | 10.5 A (1.4-15 A) |
| Refrigerant / GWP | R32 / 675 |
| Pipe Connections | 3/8" (liquid line) / 5/8" (gas line) |
| Max. Pipe Length | 50 m |
| Max. Height Difference | 25 m |
| Connection System | Quick-Connect System with pre-charged refrigerant lines |
Scope of Delivery
- 1 × Midea Xtreme Save Pro 18 Indoor Unit
- 1 × Matching Midea Outdoor Unit
- 1 × Infrared Remote Control including wall mount
- 1 × Integrated Wi-Fi module for MSmartHome app control
- 1 × Quick-Connect Line Set with pre-charged refrigerant lines (depending on chosen version)
- 1 × Installation and Operating Manual
Why Buy the Midea Xtreme Save Pro 18?
The Midea Xtreme Save Pro 18 combines high energy efficiency with modern inverter technology, quiet operation, and convenient controls. Thanks to intelligent regulation, the air conditioner automatically adapts its performance to actual heating or cooling demand, ensuring optimized temperature management and energy consumption.
With built-in Wi-Fi functionality, effortless smartphone and voice assistant integration, as well as extensive comfort settings, this unit is an excellent choice for daily home use, offices, or small commercial units.
In accordance with EU Regulation 2024/573 and applicable national environmental standards, the installation, leak testing, and commissioning of non-hermetically sealed split air conditioning systems must be carried out exclusively by certified companies and qualified personnel. By purchasing this unit, you confirm that the installation and commissioning will be performed in compliance with applicable law by a certified HVAC company.
- Silent-Modus
- 21 dB(A)
- Weight (Indoor Unit)
- 13,6 kg
- Operating current cooling
- 10.5 A (1.4-15 A)
- Pipe connections
- 3/8" (liquid line) / 5/8" (gas line)
- Product type
- Air conditioner
- Energy efficiency class cooling
- A++
- Power input heating
- 2,130 wattss (300-3,100 wattss)
- Voltage
- 230 V / 50 Hz / 1 Phase
- Measure (Indoor Unit)
- 1,083 x 244 x 336 mm
- SEER
- 6,4
- Sound power
- 62 dB(A)
- Power input cooling
- 2,420 wattss (340-3,450 wattss)
- Air output
- 610 / 770 / 1,090 m³/h (Low / Medium / High)
- Sound power (Outdoor Unit)
- 67 dB(A)
- Heating capacity
- 7.3 kW (1.55-8.21 kW)
- pipe length
- 50 m
- Indoor unit
- MSAGDU-24HRFN8-ME
- Energy efficiency class heating
- A+
- Measure (Outdoor Unit)
- 890 x 342 x 673 mm
- Room volume
- up to approx. 75 m² (190 m³)
- Model
- Xtreme Save Pro 18
- Outdoor unit
- MOX401-24HFN8-ME
- Sound pressure
- 21 / 34.5 / 37 / 46 dB(A) (Silent / Low / Medium / High)
- Annual energy consumption heating
- 1.715 kWh/year
- height difference
- 25 m
- Cooling capacitiy
- 7.0 kW (1.55-8.21 kW)
- Sound pressure (Outdoor Unit)
- 60 dB(A)
- Weight (Outdoor Unit)
- 43,9 kg
- SCOP
- 4
- Annual energy consumption cooling
- 383 kWh/year
- Refrigerant/ GWP
- R32 / 675
- Display

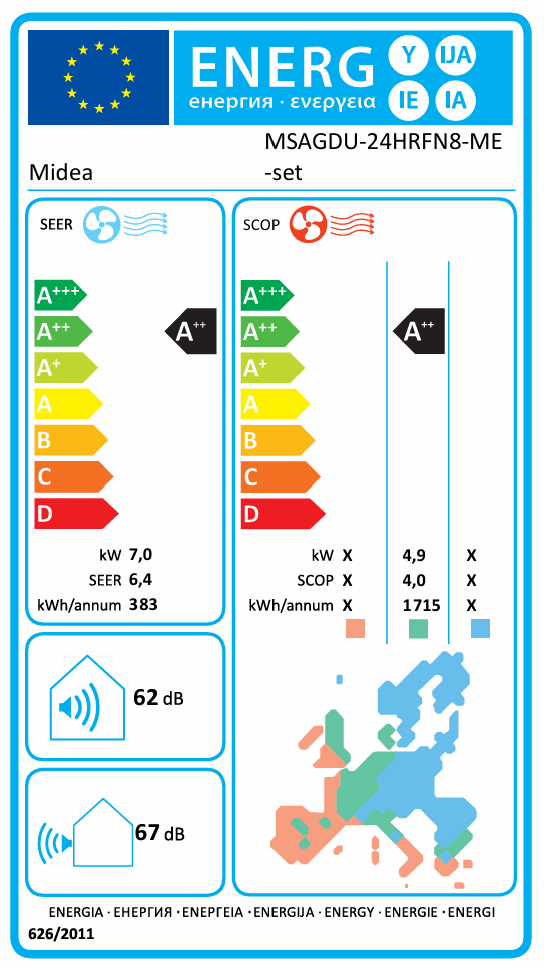

- <img src="/out/flow-klimalex/img/midea/energieeffizienzklasse-midea-10001126.png" title="Energieeffizienzklasse / xtremesave24" >
