Elegant air circulation with Aerodynamix Eco 132
| ✔ Installation is possible with and without lighting | ✔ Clockwise and Anticlockwise mode controllable with remote, EC / DC motor |
| ✔ Energy-saving lamps possible | ✔ absolutely smooth running |
| ✔ Wing sets exchangeable | ✔ Weighted out motor and blades |
| ✔ Interchangeable motor sets | ✔ Remote control |

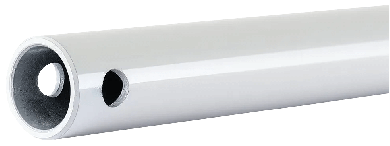

| ✔ Longer downrods optionally available | ✔ Summer operation can be switched to winter operation |
The Casafan Aerodynamix Eco energy-saving ceiling fan is characterized above all by its absolutely quiet way of working. By running forwards and backwards you can achieve a pleasant room climate in both summer and winter. balanced 6 speed motor via the included radio remote control. Also the forward / backward movement including light (suitable for energy-saving lamps) can be operated via the remote control. Wall bracket included in delivery. Incl. blind cover for mounting without lighting.
By default, the ceiling fan should be mounted on a flat surface. Though you can use the Aerodynamix on up to 16 ° angled ceilings with an additional downrod. You will find fitting products in the accessories category a little further down this page. If you have any questions, please contact KlimaLex Service.

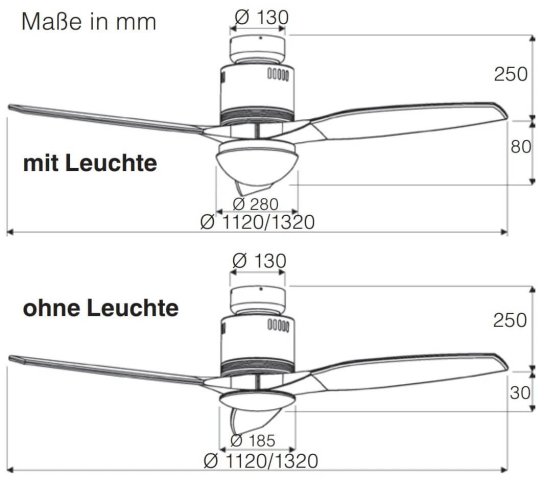

| Size Ø Diameter: | 132 cm |
| Housing color: | white |
| Wing dekor: | silver |
| No. of blades: | 3 |
| Blade specials: | Blades are exchangeable |
| No. of speeds: | 6 |
| Control: | Remote control included |
| Lighting: | Lighting included |
| Specials: | Energy safing, longer downrods are available. Mounting on sloped ceilings only possible with longer downrod. |
| Style: | Modern |
| Lighting power max. : | 2 x 40 Watt, E14 |
| Power Motor min.: | 5 Watt |
| Power Motor max.: | 21 Watt |
| Revulotions max.: | 190 rpm |
| Voltage: | 220-240 Volt ~ 50 Hz |
| Mounting: | 2 Screws Ø min. 4,5 mm. 70 - 110 mm apart from each other |
| Fan sound power | Fan sound pressure | Speed | |||
|---|---|---|---|---|---|
| LW level 1 | below 32 dB(A) | LP - 3 m level 1 | below 15 dB(A) | level 1 | 72 (min-1) |
| LW level 2 | below 32 dB(A) | LP - 3 m level 2 | below 15 dB(A) | level 2 | 98 (min-1) |
| LW level 3 | below 32 dB(A) | LP - 3 m level 3 | below 15 dB(A) | level 3 | 120 (min-1) |
| LW level 4 | 34.3 dB(A) | LP - 3 m level 4 | below 15 dB(A) | level 4 | 144 (min-1) |
| LW level 5 | 41.8 dB(A) | LP - 3 m level 5 | 21.3 dB(A) | level 5 | 180 (min-1) |
| LW level 6 | 49.7 dB(A) | LP - 3 m level 6 | 29.2 dB(A) | level 6 | 188 (min-1) |
| Picture | Product | Case color | Wing color | Art.-No. | Price |
|---|---|---|---|---|---|
|

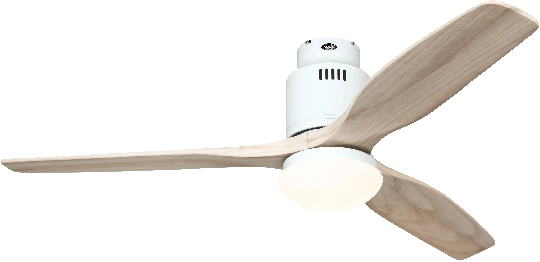

Ceiling Fan Aerodynamix Eco 132 WE NT | white | nature wood | 93132323 | 499,99 € Price incl. 19% VAT plus Shipping |
|

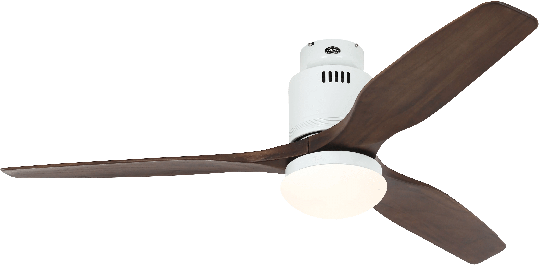

Ceiling Fan Aerodynamix Eco 132 WE NB | white | walnut | 93132321 | 499,99 € Price incl. 19% VAT plus Shipping |
|

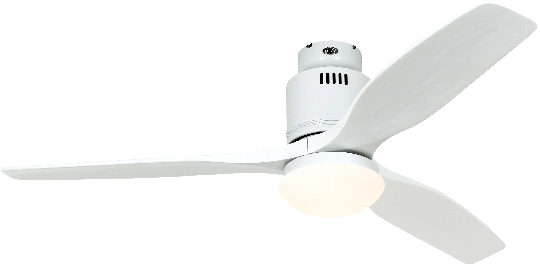

Ceiling Fan Aerodynamix Eco 132 WE WE | white | white | 93132322 | 499,99 € Price incl. 19% VAT plus Shipping |
|

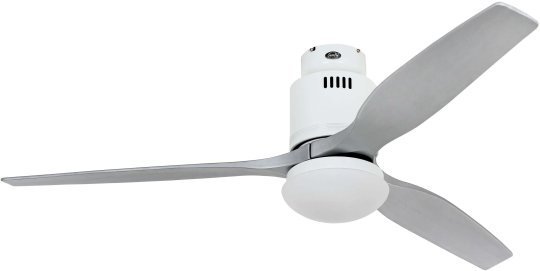

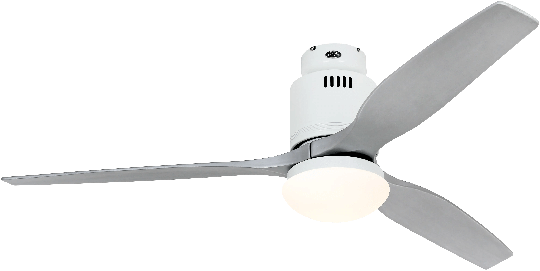

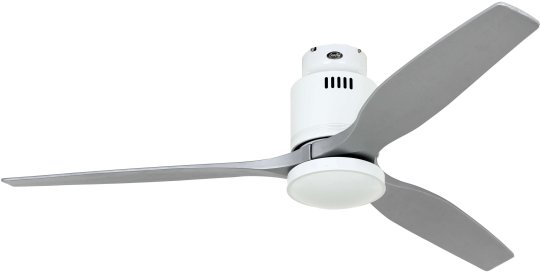

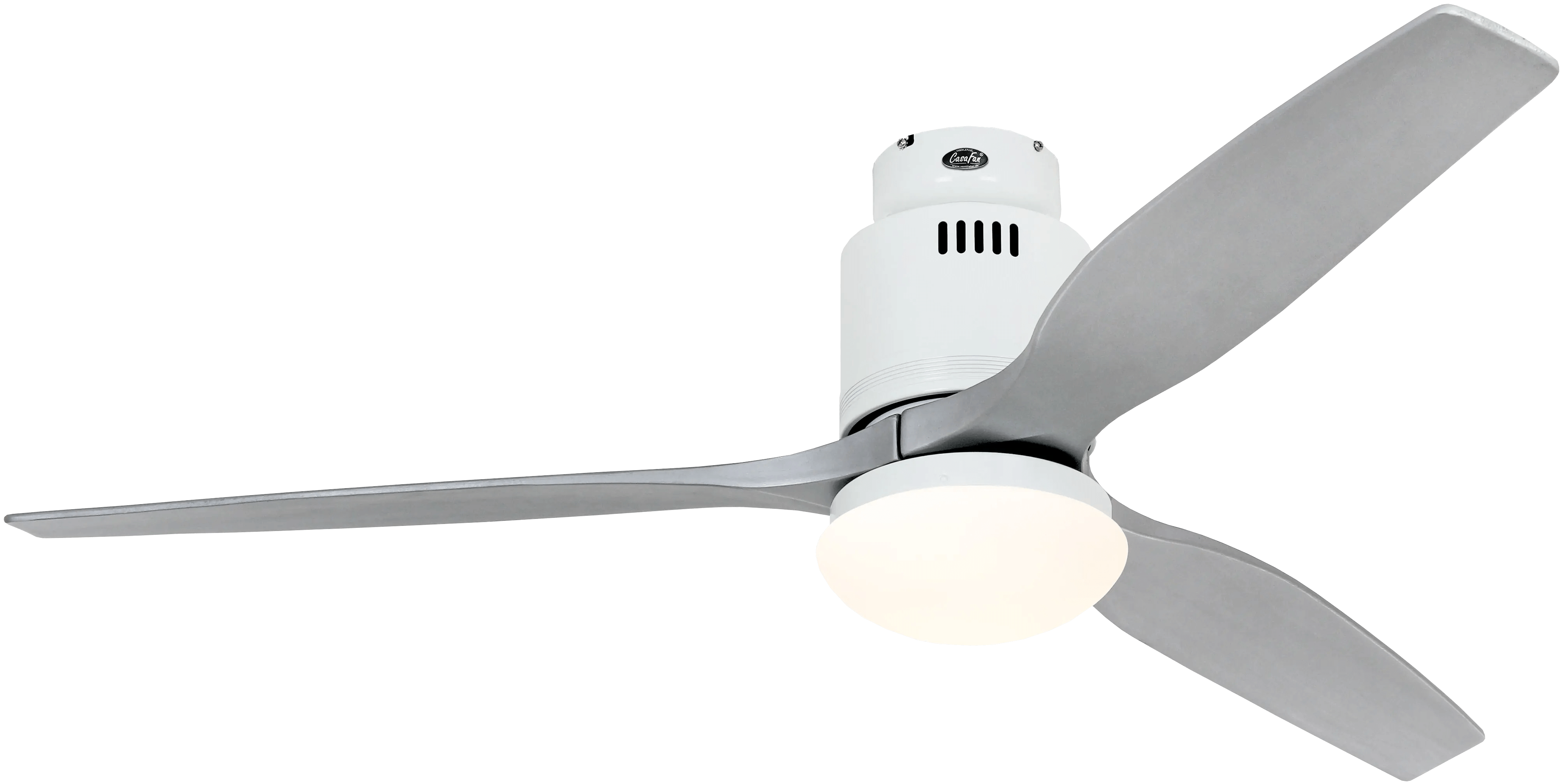

Ceiling Fan Aerodynamix Eco 132 WE SI | white | silver | 93132324 | 499,99 € Price incl. 19% VAT plus Shipping |
|

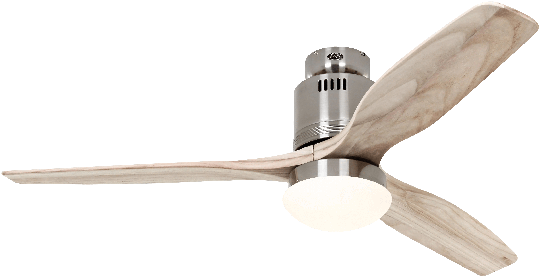

Ceiling Fan Aerodynamix Eco 132 BN NT | chrome brushed | nature wood | 93132333 | 499,99 € Price incl. 19% VAT plus Shipping |
|
Ceiling Fan Aerodynamix Eco 132 BN NB | chrome brushed | walnut | 93132331 | 499,99 € Price incl. 19% VAT plus Shipping |
|

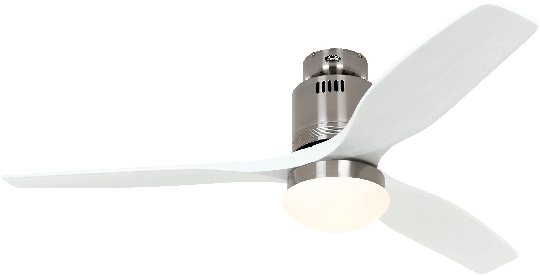

Ceiling Fan Aerodynamix Eco 132 BN WE | chrome brushed | white | 93132332 | 499,99 € Price incl. 19% VAT plus Shipping |
|

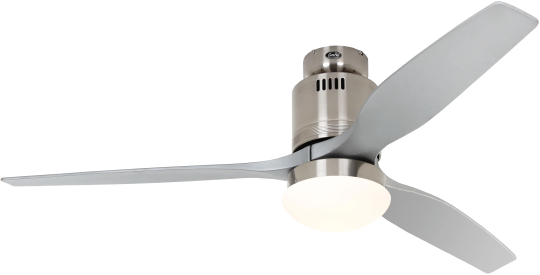

Ceiling Fan Aerodynamix Eco 132 BN SI | chrome brushed | silver | 93132334 | 499,99 € Price incl. 19% VAT plus Shipping |
- Casing
- white
- Power
- 21 watt
- Voltage
- 230 volt
- Manufacturer
- casafan
- Control
- remote control
- Product type
- ceiling fan
- Style
- modern, extravagant
- Blade decor
- silver
- Blade material
- solid wood
- No. of blades
- 3
- Lighting
- with
- ECO
- yes
- Diameter in cm
- 132
- Commercial use
- n/a
- Outdoor use
- indoor
- Sloped ceilings
- not suited
- Ceiling distance
- 350 mm / 300 mm
- Forward-/Reverse mode
- via remote control
- 0-10 V interface
- w/o
