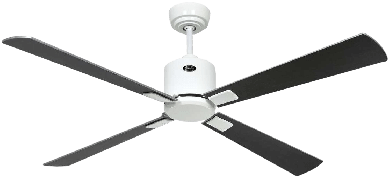

Ceiling fan CasaFan Eco Neo III 132 WE-WN/SI 0-10 V

Ceiling fan CasaFan Eco Neo III 132 cm, white, wenge / silver 0-10 volt

Information at a glance:

✓ Energy saving ceiling fan	✓ 6 levels via remote control
✓ balanced motor and wing	✓ Forward/Reverse
✓ 4 reversible wings (2, 3 or 4 wings mountable)	✓ Slow motion stage, sleep timer
✓ Light fixture optional available	✓ 0-10 volt interface
✓ including 2 ceiling rods (150 mm & 80 mm)	✓ suitable for slopes

---

Saving energy helps the environment and your wallet. The Eco Neo 0-10 volt series saves energy in two ways: on the one hand by returning the warm air collected under the ceiling to the floor area in the winter and on the other hand thanks to the patented DC / EC direct current motor technology with sensationally low power consumption! The Eco Neo with a 0-10 volt interface has a 50% lower power consumption than conventional ceiling fans with the same air output. The integrated remote control with wall bracket controls 6 speed levels as well as forward, reverse and a slow motion level.

Advantages ceiling fan "Eco Neo III 132, white, wenge / silver"

Ceiling fan modern

Ceiling fan in a contemporary simple design. Whether in the living area, bedroom, office or hobby room - CasaFan ECO NEO III 0-10 volt ceiling fan is equally stylish and practical. Through turning wings the visible surface can be easily changed. For example, elegant cherry wood becomes warm walnut. Motor housing galvanized and clear coated or double stove enameled depending on the version, 4 reversible blades wenge / silver included.

Lighting, ceiling rods, replacement sashes - accessories

Lights in attractive designs can be retrofitted. Additional reversible sash sets are available in many designs. CasaFan's ECO NEO III ceiling fan comes with 4 blades at KlimaLex, but can optionally be operated with 2, 3 or 4 blades. Other reversible blade sets are available in many designs and sizes 92, 103, 132, 152, 180 cm.
Extended ceiling rods (can be shortened as desired, sold separately) make reliable use even with particularly high ceilings no problem.

Energy saving ceiling fan

The powerful yet very quiet motor of the CasaFan ECO NEO III 0-10 volt ceiling fan ensures the best air performance with optimized energy consumption. In contrast to conventional ceiling fans, the power of the ECO NEO III at the same air output and full speed is and full speed instead of 32 watts is only 16 watts. The power consumption at lowest speed is just 2,5 watts.

Mounting on ceiling slopes

Mounting on ceiling slopes up to 23° possible due to patented mounting joint (longer ceiling rod may be required). Especially flat when mounted with shortened ceiling rod (only 22.5 cm from ceiling to sash). Easy and quick mounting with only 2 screws (Ø min. 4.5 mm at a distance of 70 to 110 mm).

Safety protection class

Protection class I, max. ambient temperature 45 °C, interference suppressed. Patented DC/EC direct current motor technology.

Technical data

Housing color:	white
Wing decoration:	wenge / silver
Size Ø :	132 cm
Flow rate highest level	9575 m³/h
Wing number:	4, optionally 2, 3, 4 mountable
Wing extras:	Replacement blades possible, reversible blades
Number of stages:	6 levels with remote control
Lighting :	Luminaire possible
Control:	Remote control incl., Forward / reverse, slow motion, 0-10 volt interface
Power motor min.:	2,3 Watt
Power motor max.:	27 Watt
min.:	30 U/min
max.:	185 U/min
Voltage:	100-240 Volt ~50/60 Hz
Weight:	5,8 kg
Spacing ceiling - blades:	360 mm - 290 mm
Special features:	energy-saving, longer ceiling bar possible, suitable for slopes
Style:	modern

Remote Control

Remote control Motor 6 levels, forward & reverse run, plus lamp on/off/dimming and sleep timer. Wall mount included.

Ceiling fan "Eco Neo III 132 cm, white, wenge / silver" is very quiet

Performance data:
