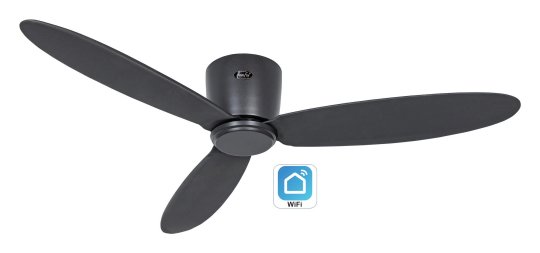

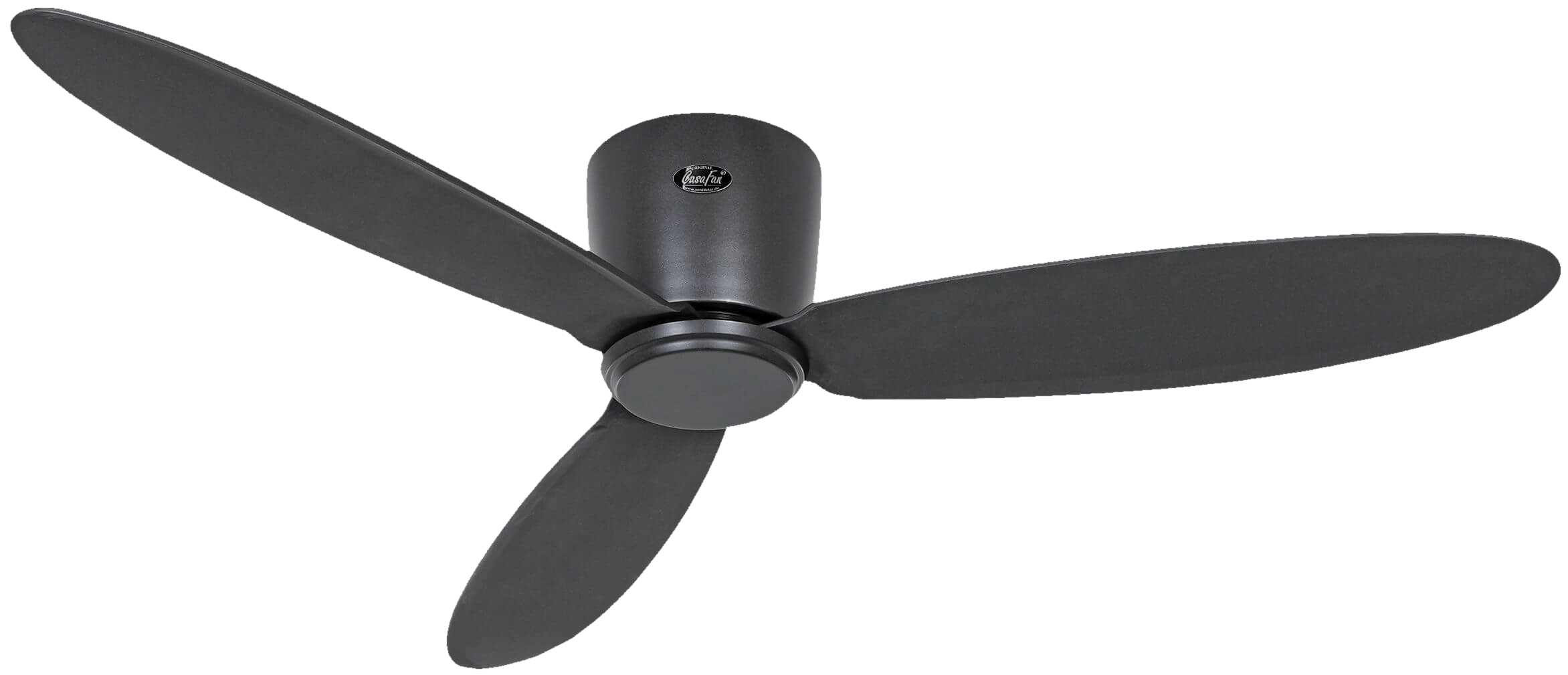

Ceiling Fan CasaFan Eco Plano II 132 BG-BG WiFi

Ceiling fan CasaFan Eco Plano II 132 cm, basaltgrey, basaltgrey WiFi

Information at a glance:

✓ Ceiling fan with WiFi for energy saving	✓ 6 speeds controllable via remote control
✓ Extra flat model for low ceilings	✓ Remote control to change the running direction (summer/winter)
✓ Motor and blades are balanced for smooth operation	✓ Slow motion setting
✓ 4 blades (can be assembled with 2, 3 or 4)	✓ Sleep schedule function
✓ Optional lamp	✓ Dimming function (if a lamp is available)
✓ Runs quietly	✓ Only suitable for mounting on flat ceilings
✓ Can be connected to WiFi	✓ Can be controlled via Smart Life App

---

By saving energy, you help protect the environment and your wallet. The Eco Plano II WiFi series saves energy in two ways: firstly in winter by circulating the warm air collected under the ceiling and secondly by the patented DC/EC direct current motor technology with extremely low consumption!
The Eco Plano II WiFi ceiling fan consumes over 50% less electricity than conventional ceiling fans with the same air performance. The integrated remote control can be used to control forward, reverse and 6 speed levels (including slow motion level).

Advantages ceiling fan "Eco Plano II 132 cm, basaltgrey, basaltgrey WiFi"

Design

The CasaFan ECO PLANO II WiFi ceiling fan impresses with its modern and simple design. Perfect for use in living areas, bedrooms, offices or dens, it is both stylish and practical. The housing of the ceiling fan is electroplated and clear coated, for example in brushed chrome, or has a double stove-enamelled finish, for example white. 4 wooden wings of size 132 included.

Lighting, ceiling rods, replacement sashes - accessories

The CasaFan ECO PLANO II WiFi ceiling fans can be retrofitted with the lights in EP-LED design in various attractive versions.
The ceiling fan comes standard with 4 blades, but there is an option to operate it with 2, 3 or 4 blades as an option.
The included remote control offers six speed levels, forward and reverse, a sleep timer, a slow-motion level and the ability to control the light dimming (if a light is available).
Extended ceiling rods (can be shortened as desired, sold separately) make reliable use even with particularly high ceilings no problem.

Energy saving ceiling fan

With the CasaFan ECO PLANO II WiFi ceiling fan, you get a powerful yet very quiet motor that ensures optimal air performance with minimized energy consumption. Compared to conventional ceiling fans, the ECO PLANO II WLAN consumes only 28 watts instead of 55 watts with the same air output and full speed. Even at the lowest speed, the power consumption is only 1.1 watts.

Mounting on ceiling slopes

Easy and quick mounting with only 2-4 screws (Ø min. 4.5 mm at a distance of 68 to 94 mm). Installation is only possible on straight ceilings. The Casafan ECO PLANO II WiFi ceiling fan is particularly flat and therefore perfect for rooms with low ceilings.

Safety protection class

Protection class I, max. ambient temperature 45 °C, interference suppressed. Patented DC/EC direct current motor technology.

Technical data CasaFan "Eco Plano II 132 cm, basaltgrey, basaltgrey WiFi"

Housing color:	basaltgrey
Wing decoration:	basaltgrey
Size Ø :	132 cm
Flow rate highest level	7594 m³/h
Wing number:	4, optionally 2, 3, 4 mountable
Number of stages:	6 levels with remote control
Lighting :	Luminaire possible
Control:	Remote control incl., Forward / reverse, slow motion, Smart Life App
Power motor min.:	1,1 Watt
Power motor max.:	28 Watt
min.:	30 U/min
max.:	207 U/min
Voltage:	100-240 Volt ~50/60 Hz
Weight:	6,4 kg

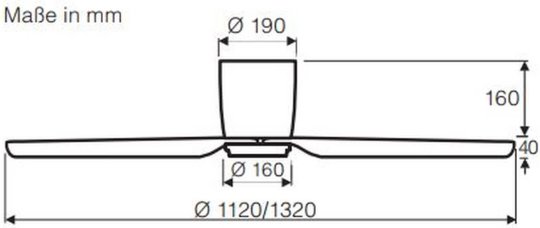

Spacing ceiling - blades:	160 mm
Special features:	energy-saving, extra low profile, connection to wifi, only on straight ceilings
Style:	modern

Remote Control

Remote control The remote controls 6 levels, sleep timer and forward/reverse function. A light can also be switched on and off and dimmed. A wall mount is included in delivery.

The ceiling fan "Eco Plano II 132 cm, basaltgrey, basaltgrey with WiFi" is very quiet

The VDE testing and certification institute in Offenbach carried out noise measurements.
The laboratory can measure sound power with a value of at least 32 dB(A).
Since many ceiling fans in the market are advertised with different values,
we give the measured noise values both as sound power LW and as sound pressure LP-3m.

Performance data "Eco Plano II 132 cm WiFi"
