Axial fan CasaFan EQ 20/4 M - 230V-50/60Hz

Efficient Ventilation with the Axial Fan CasaFan EQ 20/4 M - 230V-50/60Hz

The Axial Fan CasaFan EQ 20/4 M - 230V-50/60Hz is the ideal solution for demanding applications in commercial and industrial ventilation. With a diameter of 200 mm, this wall fan provides reliable performance that can be used in a variety of environments, including workshops, offices, and laboratories. The fan is characterized by its high efficiency and low noise level, making it the perfect choice for noise-sensitive environments.

This fan is part of a series available in various variants, such as the Axial Fan CasaFan EQ 20/2 M - 230V-50/60Hz, which has similar features but comes in a different version. The EQ 20/4 M differs in its specific performance characteristics tailored to the requirements of applications that need lower air flow.

The key similarities and differences between the variants of the CasaFan EQ series are:

• Model Variants: The EQ series includes models with diameters ranging from 200 mm to 600 mm, with each variant optimized for specific application areas.
• Power Consumption: The EQ 20/4 M has a power consumption of 40 watts and a maximum speed of 1400 rpm, while the EQ 20/2 M offers 65 watts at 2650 rpm.

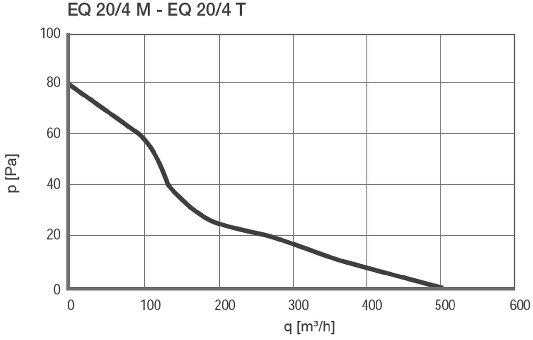

• Air Flow: The EQ 20/4 M has an air flow rate of 500 m³/h, making it ideal for smaller spaces.
• Noise Level: With a sound pressure level of 45 dB(A), the EQ 20/4 M operates particularly quietly.
• Temperature Range: Both models are suitable for temperatures ranging from -25°C to +55°C, making them versatile.

The decision to choose the Axial Fan CasaFan EQ 20/4 M should be made when a moderate air flow is required in noise-sensitive areas. It is optimal for installation in walls that need efficient air circulation without increasing the noise level.
