Axial fan CasaFan EQ 30/4 M - 230V-50/60Hz

Efficient Ventilation with the Axial Fan CasaFan EQ 30/4 M - 230V-50/60Hz

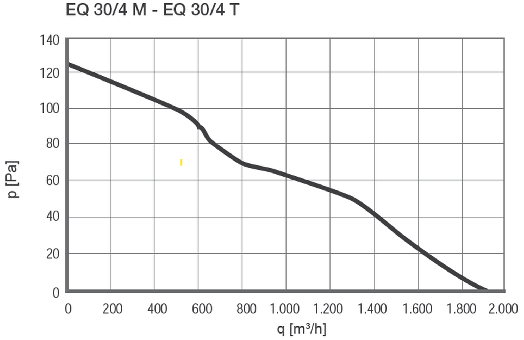

The Axial Fan CasaFan EQ 30/4 M - 230V-50/60Hz is a powerful solution for commercial and industrial ventilation. With an airflow rate of 1900 m³/h and a maximum noise level of only 59 dB(A), this fan provides an efficient and quiet way to ventilate spaces such as workshops, offices, bathrooms, and retail areas. This variant differs from the main variant, the Axial Fan CasaFan EQ 20/2 M - 230V-50/60Hz, by the model number 30/4 M, which offers a higher airflow and a different size.

The EQ series from CasaFan includes a total of 13 different models that vary in size and performance. Each model is made from powder-coated, galvanized steel sheet and features aerodynamic blades that ensure optimal airflow. The models are designed for installation in any position and provide high efficiency with low energy consumption.

Here are some key differences and similarities among the various models:

• Model Numbers: The EQ series includes models from EQ 20 to EQ 40, differing in size and airflow.
• Airflow Rate: The airflow ranges from 500 m³/h (EQ 20/4 M) to 4400 m³/h (EQ 40/4 M).
• Noise Level: All models offer a low noise level ranging from 45 dB(A) to 63 dB(A).
• Temperature Range: Suitable for temperatures from -25°C to +55°C, allowing versatile use in various environments.

Choosing the EQ 30/4 M model is particularly sensible when a high airflow rate of 1900 m³/h is required. This makes it ideal for larger spaces or applications where effective air circulation is necessary.
