Vortice Lineo Quiet In-Line Mixed Flow Fan LINEO QUIET 100 – Sound-Insulated Mixed Flow Fan for Extremely Quiet Operation
The Vortice Lineo Quiet In-Line Fan LINEO QUIET 100 combines the high pressure and airflow performance of the proven Lineo series with an integrated, highly effective sound insulation system. Designed for environments where high-efficiency supply and extract ventilation is required with minimal noise levels, this sound-proofed in-line fan is perfectly suited for installation in ventilation ducts (nominal size 100 mm ).
Thanks to its sound-absorbing internal lining and flow-optimised housing geometry, the Lineo Quiet reduces both breakout and duct noise to a minimum. The proven mounting bracket also allows for easy unclipping of the motor unit for quick cleaning and maintenance – without dismantling the ductwork system.
Key Product Benefits at a Glance
- ✔ Extremely Quiet Operation: Integrated acoustic insulation effectively dampens airflow and motor noise.
- ✔ High Pressure Performance: Mixed-flow impeller provides strong air delivery even against higher system resistance.
- ✔ Durable & Maintenance-Free: Ball-bearing motor designed for at least 30,000 hours of continuous operation with thermal overload protection.
- ✔ User-Friendly Clip-Out System: The motor unit can be removed from the mounting brackets in just a few steps.
- ✔ Robust Plastic Housing: High-quality, self-extinguishing polypropylene (V0) for maximum safety.
Whisper-Quiet Ventilation for Demanding Spaces
The Vortice Lineo Quiet is the ideal solution for living spaces, offices, meeting rooms, libraries, hotels, medical practices, or sanitary areas – wherever disruptive ventilation noise must be avoided. With its compact dimensions, it can easily be installed even in confined spaces such as suspended ceilings or ventilation shafts.
| Feature | Value / Specification |
|---|---|
| Model | LINEO QUIET 100 |
| Maximum Airflow | 260 m³/h |
| Maximum Pressure | 147.1 Pa |
| Voltage | 230 V / 50 Hz |
| IP Rating / Protection Class | IP45 |
| Appliance Class | II |
| Sound Pressure Lp-2m | 28.4 dB(A) |
| Current Consumption | 0.13 A |
| Maximum Air Temperature | 50 °C |
| Colour | Light grey / White |
| Housing Material | Self-extinguishing plastic with integrated sound insulation (V0) |
| Maximum Speed | 2,260 RPM |
| Nominal Diameter / Duct Connection | 100 mm |
| Fan Features | Sound-insulated housing, in-line duct installation, removable motor unit, thermal overload protection |
| Motor Type | Ball-bearing mounted, multi-stage controllable |
| Fan Type | Mixed-flow in-line fan / Sound-proofed duct fan |
Notes on Model Variants in the Lineo Quiet Series:
Different versions are available within the Lineo Quiet Series:
• Standard "Quiet": Multi-stage operation, controllable via external switches or control units.
• "Quiet T" (Timer): Equipped with an integrated, adjustable run-on timer (2 to 25 minutes).
Package Contents
|
- Amperage
- 0.13 A
- Temperature max.
- 50 °C
- Air output
- 260 m³/h
- Power
- 27 watts
- Sound pressure
- 28.4 dB(A)
- Air pressure max in Pa
- 147.1 Pa
- Voltage
- 230 V / 50 Hz
- Model
- LINEO QUIET 100
- Revolutions
- 2,260 RPM

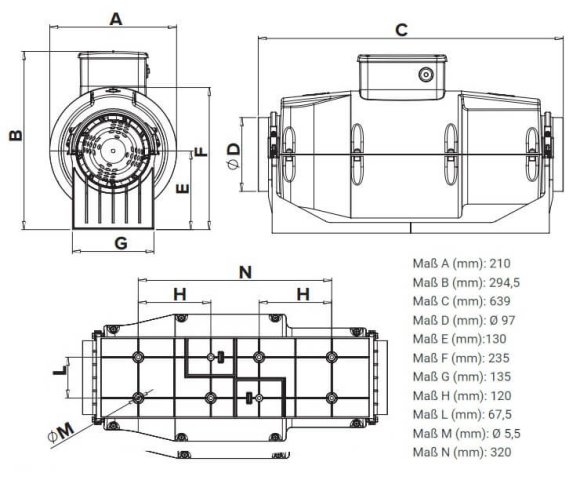

- Dimensions
- 100 mm
- Product type
- duct fan
- IP protection class
- IP45
