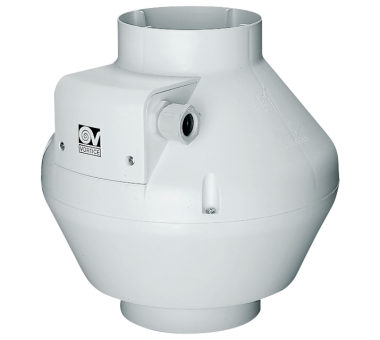

Vortice CA V0 E In-Line Duct Fan – Durable Plastic Casing & High Airflow Performance
The Vortice CA V0 E in-line duct fan combines high airflow performance, reliability, and extreme durability. Specifically engineered for ventilation systems with round ducts (nominal diameter ), this in-line centrifugal fan ensures powerful supply and exhaust ventilation in humid or demanding settings.
The housing is made of special self-extinguishing, UV-resistant resin (V0). This makes the fan completely rustproof, easy to clean, and ideal for rooms with high humidity levels!
High-Performance, Low-Maintenance & Reliable
Whether in sanitary facilities, kitchens, commercial properties, or workshops: The Vortice CA V0 E excels wherever humid or heavy air needs to be extracted reliably. Thanks to the lightweight plastic casing, installation is fast and straightforward.
Your Benefits at a Glance:
- ✓ V0 Fire Protection Class: Casing made of self-extinguishing, UV-resistant ABS polymer for maximum safety.
- ✓ Corrosion-Free & Lightweight: Ideal for high-humidity environments.
- ✓ 2-Speed Motor: 2-speed, ball-bearing AC motor with thermal overload protection.
- ✓ High Pressure Output: Powerful centrifugal fan engineered for long duct runs.
- ✓ Flexible Installation: Can be mounted in any position (horizontal, vertical, or diagonal).
- ✓ Mounting Bracket Included: Quick wall or ceiling installation using the included bracket.
| Property | Value / Specification |
|---|---|
| Model | CA 100 V0 D |
| Max. Airflow | 200 m³/h |
| Max. Pressure | 349 Pa |
| Voltage | 230 V / 50 Hz |
| Current Consumption | 0.22 A |
| Power Consumption | 43 watts |
| Sound Pressure Lp-2m | 37.7 dB(A) / 63.9 dB(A) / 63.2 dB(A) |
| Max. Motor Speed | 2,250 RPM |
| IP Rating | IPX4 |
| Protection Class | II |
| Max. Fluid Temperature | 50 °C |
| Nominal Diameter / Connection | 100 mm |
| Casing Material | Self-extinguishing, UV-resistant V0 plastic (polymer) |
| Color | white |
| Speed Stages | 2 speeds (switchable via optional speed controller) |
| Motor Design | 2-speed AC motor, ball-bearing mounted, thermal overload protection, dynamically balanced impeller |
| Fan Type | Centrifugal In-Line Duct Fan |
| Special Features | 100% corrosion-free, V0 fire protection rating, lightweight casing, includes wall/ceiling mounting bracket |
Scope of Delivery
|
Overview of Model Variants (Q, D, EP & SE):
Within the CA V0 E Series, models differ based on motor tuning and performance characteristics:
• “Q” (Quiet): Ultra-quiet version with reduced speed for noise-sensitive spaces.
• “D” (Dual Speed): High-performance variant with two speeds and high pressure build-up for long duct runs.
• “EP” (Energy Performance): Motor for continuous operation.
• “SE” (Special / Low-Speed): Special variant designed for quiet, continuous baseline ventilation.
Warning: this symbol indicates that care must be taken to avoid injury to the user
- Always use the product for the purpose it was intended, as specified in this booklet.
- After removing the product from its packaging, ensure that it is not damaged. If in doubt please contact a Vortice authorised Technical Assistance Centre immediately. Never leave packaging parts within reach of children or disabled persons.
- The use of any electric device requires compliance with a few fundamental rules, including:
- Never touch it with wet or humid hands.
- Never touch it when barefoot.
- Do not allow use by unsupervised children or disabled persons.
- Do not use the unit in the presence of flammable substances or vapours such as alcohol, insecticides, gasoline, etc.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Precautions must be taken to prevent gas coming from the gas flue pipe or from other fuel combustion units from entering into the room.
- Products installed without a protective device for moving parts must be installed at a height greater than 2.3 m above the floor level.
- Units equipped with manual reset thermal breaker device
In order to avoid any danger of accidental reset of the thermal breaker device, units must not be powered by an external switch device such as a timer, or must not be connected to a circuit that is regularly powered or disconnected from power utilities.
Caution: this symbol indicates that care must be taken to avoid damaging the appliance
- Do not make modifications of any kind to this appliance.
- Do not leave the device exposed to adverse weather conditions (rain, sun, etc.).
- Do not rest objects on the device.
- Periodically check device conditions. If imperfections are noted, do not use the unit and immediately contact a Vortice authorised Technical Assistance Centre.
- Promptly contact a Vortice authorised Assistance Centre in the event of unit malfunction and/or failure and request the use of original Vortice spare parts for any repairs.
- If the unit falls or receives a strong blow, immediately have it inspected at a Vortice authorised Technical Assistance Centre.
- Only connect the device to the mains supply/ electrical outlet if plant/outlet capacity is suitable for its maximum power. If otherwise, immediately seek assistance from a professionally qualified person.
- Switch off the main switch on the system when: a) a malfunction is detected, b) you decide to perform external cleaning maintenance, c) when you decide not to use the device for prolonged periods.
- It is essential to ensure that sufficient air re-enters the room, in order to guarantee product operation. If a combustion-powered, non air-tight device is installed in the room (water heater, methane stove, etc.), please ensure that air re-entry also guarantees the perfect combustion of said device.
- The unit cannot be used as an activator for water heaters, stoves, etc. nor should it discharge into hot air ducts.
- Never cover the two intake grilles and the device return duct, to ensure optimal air passage.
- The unit does not need to be connected to an earthing system as it has been built in double isolation.
- The device must discharge in a single duct (used by this product only).
- The product delivery point must always be connected to a duct.
- To consult the maximum ambient temperature for appliance operation, refer to the data label.

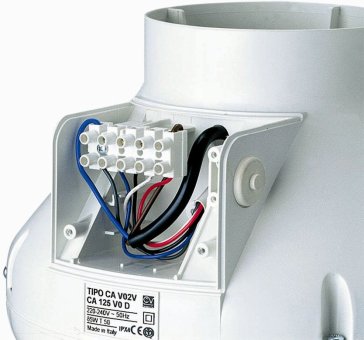

- The electrical specifications correspond to the ones on the data label A (fig.A).
- An omnipolar switch with a contact opening distance of 3 mm or higher should be provided for installation, enabling complete disconnection under overvoltage category III conditions.
- Products equipped with single-phase wiring (M) engines ALWAYS require connection to 220-240V (or only 230V where required) single-phase lines. Any kind of modification shall be considered as product tampering and shall nullify the relative warranty.
- No specific adjustment is necessary as the devices operate at nominal frequencies without a preliminary setting.
- Thermal protection devices:
- Manual reset thermal protector
The following models are equipped with a manual reset thermal protector
If the thermal protector is triggered, please contact qualified personnel or Vortice authorised Technical Assistance Centre. If the problem persists after the reset operation, check the electrical system to which the unit is connected. In this case, please contact a Vortice authorised Technical Assistance Centre or professionally qualified personnel.
Source: manufacturer's operating instructions (Vortice CA V0 E, pages 9–10).
- Air pressure max in Pa
- 349 Pa
- Fan
- Radial fan, Duct fan
- Model
- CA 100 V0 D
- Temperature max.
- 50 °C
- Color
- white
- Power
- 43 watts
- Voltage
- 230 V / 50 Hz
- Amperage
- 0.22 A
- Sound pressure
- 37.7 dB(A) / 63.9 dB(A) / 63.2 dB(A)
- Material
- self-extinguishing plastic
- Air output
- 200 m³/h
- Protection class
- II
- Specials
- 3 speeds
- Dimensions
- 100 mm
- Revolutions
- 2,250 RPM
- Product type
- duct fan
- IP protection class
- IPX4
- Shipping Weight
- 3 kg
