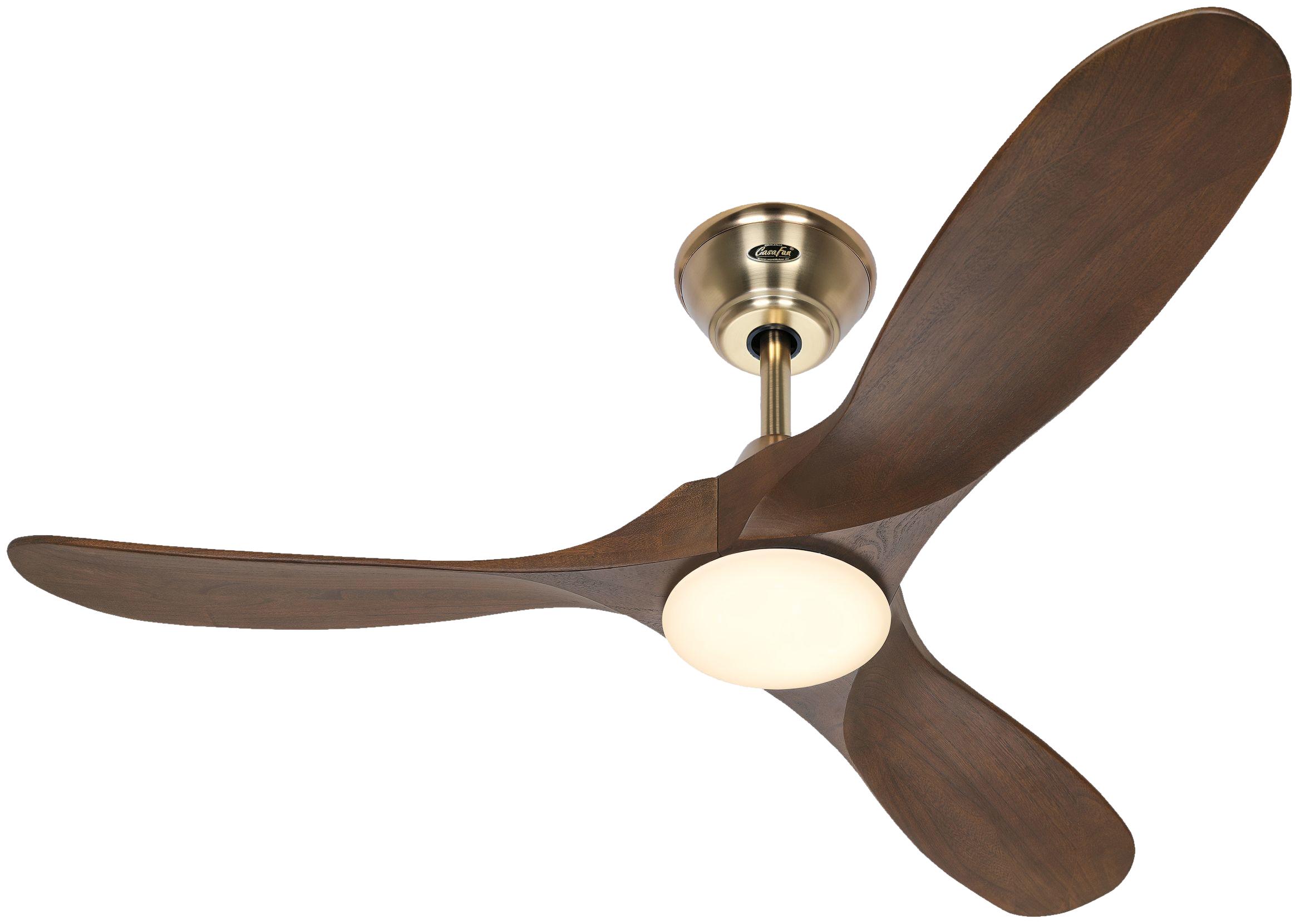

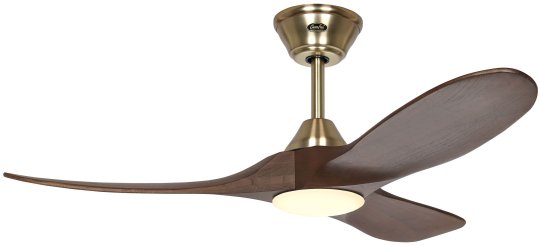

Ceiling fan Eco Genuino-L 122 brass brushed, walnut from Casafan
|
Remote control Motor 6 levels, forward and reverse run. Wall mount included. |
Stylish, noble, cosy, timeless, energy-saving & even illuminated. The quiet ceiling fan with light and remote control Eco Genuino-L by CasaFan meets all expectations. The energy-saving DC/EC motor saves in the long term your money. The counter-flow function ensures that the rooms are heated efficiently in winter by evenly distributing the warm air accumulated on the ceiling. The Eco Genuino-L thus ensures a fresh cooling effect in summer and pleasant warmth in winter.
With the supplied remote control you can easily control the forward & reverse operation, dimming of the built-in light and the 6 levels of the motor. The supplied ceiling rod enables installation on sloping ceilings with an angle of up to 18°. In case of steeper angles or higher ceilings, you can use optionally available, longer ceiling rods to remedy the situation and create an optimal room climate in your own four walls.
Advantages and technical data Eco Genuino-L 122 brass brushed, walnut
Quiet and energy-saving with remote control
The supplied remote control including wall bracket controls forward and reverse mode, the 6 levels of the device and the light. Balanced motor and blades ensure a silent run, our KlimaLex Service for the best satisfaction.
Classic & Modern
Classic touch, modern implementation - the CasaFan ECO GENUINO-L 122 ceiling fan meets all requirements depending on the version. The warm wood colors of the 3 blades provide a feeling of security and can appear serious and charming in equal measure. Finished walnut or the natural color - you can decide.
Energy saving
The powerful yet very quiet DC/EC motor ensures the energy-saving, patented direct current technology for the best air performance and optimized energy consumption. Compared to similar models, the ratio of air flow and power consumption is outstanding. See for yourself!
Thanks to the counterflow function, the ECO GENUINO-L 122 can gently blow the warm air below the ceiling distribute in space. By the way, you save electricity in the summer and additional heating costs in the winter.
Mounting on sloped ceilings
Mounting on sloped ceilings is possible up to 18°. For steeper angles, the use of an optionally available longer ceiling rod is recommended. Assembly is quick & easy.
| Housing color: | brass brushed |
| Wing decor: | walnut |
| Size Ø (diameter): | 122 cm |
| Number of wings: | 3 |
| Wings extras: | Wings made of layer-glued solid wood |
| Number of stages: | 6 |
| Lighting: | built-in light |
| Lamp: | Power: 17 watts; Light color: warm white; Beam angle: 120°; Lifetime: 20,000 h; Energy efficiency class: F (spectrum G to A) |
| Control: | Remote control |
| Min. motor output: | 3.3 watts |
| Maximum motor output: | 16.5 watts |
| Maximum speed: | 144 U/min |
| Voltage: | 230 volts/~50 Hz |
| Weight: | 8.9 kg |
| For rooms up to: | 16 m² |
| Special features: | energy-saving, illuminated |
| Style: | modern |
| Distance ceiling - sash: | 390 mm / 290 mm with shortened ceiling pole |
| Mounting on sloping ceilings: | up to 18° with included ceiling rod, steeper angles possible with separately available long ceiling rod |
| Fan sound power | Fan sound pressure | Speed | |||
|---|---|---|---|---|---|
| LW level 1 | below 32 dB(A) | LP - 3 m level 1 | below 15 dB(A) | level 1 | 50 (min-1) |
| LW level 2 | below 32 dB(A) | LP - 3 m level 2 | below 15 dB(A) | level 2 | 57 (min-1) |
| LW level 3 | below 32 dB(A) | LP - 3 m level 3 | below 15 dB(A) | level 3 | 78 (min-1) |
| LW level 4 | below 32 dB(A) | LP - 3 m level 4 | below 15 dB(A) | level 4 | 96 (min-1) |
| LW level 5 | 32.1 dB(A) | LP - 3 m level 5 | below 15 dB(A) | level 5 | 117 (min-1) |
| LW level 6 | 34.4 dB(A) | LP - 3 m level 6 | below 15 dB(A) | level 6 | 144 (min-1) |
 |
 |
| Picture | Article | Housing color | Wing decor | Lightning | Art.-No. | Price |
|---|---|---|---|---|---|---|
|

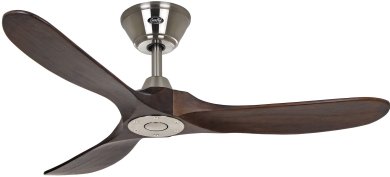

Ceiling fan CasaFan Eco Genuino-L 122 BN-NB | chrome brushed | walnut | with lamp | 312261 | 579,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Ceiling fan CasaFan Eco Genuino-L 122 BN-NT | chrome brushed | nature wood | with lamp | 312260 | 579,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Ceiling fan CasaFan Eco Genuino-L 122 MG-NB | brass brushed | walnut | with lamp | 312276 | 579,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Ceiling fan CasaFan Eco Genuino-L 122 MG-NT | brass brushed | nature wood | with lamp | 312275 | 579,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Ceiling fan CasaFan Eco Genuino-L 122 MS-NB | matte black | walnut | with lamp | 312266 | 579,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Ceiling fan CasaFan Eco Genuino-L 122 MS-NT | matte black | nature wood | with lamp | 312265 | 579,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Ceiling fan CasaFan Eco Genuino-L 122 MW-NB | matte white | walnut | with lamp | 312271 | 579,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
Ceiling fan CasaFan Eco Genuino-L 122 MW-NT | matte white | nature wood | with lamp | 312270 | 579,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
- Power
- 16,5 watt
- Voltage
- 230 volt
- Manufacturer
- casafan
- Product type
- ceiling fan
- Control
- remote control
- Casing
- brass brushed
- Style
- modern
- Blade decor
- walnut
- Blade material
- solid wood
- No. of blades
- 3
- Lighting
- with
- ECO
- yes
- Diameter in cm
- 122
- Commercial use
- n/a
- Outdoor use
- indoor
- Sloped ceilings
- suited
- Ceiling distance
- 390 mm / 290 mm
- Forward-/Reverse mode
- via remote control
- 0-10 V interface
- w/o
