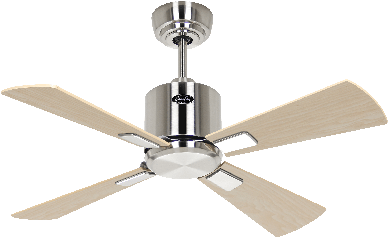

Ceiling fan Eco Neo III 92 BN-AH/BU 0-10 V

Ceiling fan CasaFan Eco Neo III 092 cm, chrome brushed, maple / beech 0-10 volt

Information at a glance:

✓ Energy saving ceiling fan	✓ 6 levels via remote control
✓ balanced motor and wing	✓ Forward/Reverse
✓ 4 reversible wings (2, 3 or 4 wings mountable)	✓ Slow motion stage & sleep timer
✓ Light fixture optional available	✓ 0-10 volt interface
✓ including 2 ceiling rods (150 mm & 80 mm)	✓ suitable for slopes

---

The Eco Neo series 0-10 volt provides an energy-efficient solution to help both the environment and your wallet. The Eco Neo III 0-10 volt ceiling fan saves energy in two ways: in winter by circulating warm air from the ceiling down to the floor and through the use of a patented DC/EC direct current motor technology with extremely low consumption. Compared to conventional ceiling fans, it has over 50% lower power consumption for the same air performance. An integrated remote control operates the forward and reverse function as well as six speed settings, including a slow speed.

Advantages of ceiling fan "Eco Neo III 92 0-10 volt"

Ceiling fan modern

Ceiling fan in a contemporary simple design. Whether in the living area, bedroom, office or hobby room - CasaFan ECO NEO III 0-10 volt ceiling fan is equally stylish and practical. Through turning wings the visible surface can be easily changed. For example, elegant cherry wood becomes warm walnut. Motor housing galvanized and clear coated or double stove enameled depending on the version, 4 reversible blades maple / beech included.

Lighting, ceiling rods, replacement sashes - accessories

Lights in attractive designs can be retrofitted. Additional reversible sash sets are available in many designs. CasaFan's ECO NEO III 0-10 volt ceiling fan comes with 4 blades at KlimaLex, but can optionally be operated with 2, 3 or 4 blades. Other reversible blade sets are available in many designs and sizes 92, 103, 132, 152, 180 cm.
Extended ceiling rods (can be shortened as desired, sold separately) make reliable use even with particularly high ceilings no problem.

Energy saving ceiling fan

The powerful yet very quiet motor of the CasaFan ECO NEO III 0-10 volt ceiling fan ensures the best air performance with optimized energy consumption. In contrast to conventional ceiling fans, the power of the ECO NEO III at the same air output and full speed is and full speed instead of 25 watts is only 12,2 watts. The power consumption at lowest speed is just 1,1 watts.

Mounting on ceiling slopes

Mounting on ceiling slopes up to 23° possible due to patented mounting joint (longer ceiling rod may be required). Especially flat when mounted with shortened ceiling rod (only 22.5 cm from ceiling to sash). Easy and quick mounting with only 2 screws (Ø min. 4.5 mm at a distance of 70 to 110 mm).

Safety protection class

Protection class I, max. ambient temperature 45 °C, interference suppressed. Patented DC/EC direct current motor technology.

Technical data

Housing color:	chrome brushed
Wing decoration:	maple / beech
Size Ø :	092 cm
Flow rate highest level	3820 m³/h
Wing number:	4, optionally 2, 3, 4 mountable
Wing extras:	Replacement blades possible, reversible blades
Number of stages:	6 levels with remote control
Lighting :	Luminaire possible
Control:	Remote control incl., Forward / reverse, slow motion, 0-10 volt interface
Power motor min.:	1,1 Watt
Power motor max.:	12,2 Watt
min.:	30 U/min
max.:	209 U/min
Voltage:	100-240 Volt ~50/60 Hz
Weight:	5,8 kg
Spacing ceiling - blades:	360 mm - 290 mm
Special features:	energy-saving, longer ceiling bar possible, suitable for slopes
Style:	modern

Remote Control

Remote control 6 level motor, forward and reverse run, plus lamp on/off/dimming and sleep timer. Wall mount included.

Noise:

Ceiling fan "Eco Neo III" is very quiet.
