Optimal Solution for Quiet Ventilation
The Vortice external wall tubular centrifugal fan CA 100 WE D is the ideal choice for efficient ventilation in various spaces such as bathrooms, kitchens, and commercial areas. This external wall tubular centrifugal fan belongs to the proven CA-WE series from Vortice and impresses with its compact design and modern aesthetics. With a nominal diameter of 100 mm, this model is particularly suitable for applications where quiet and unobtrusive air circulation is required.
The CA-WE series offers a selection of six different models that differ in nominal diameter: CA 100 WE D, CA 125 WE D, CA 150 Q WE D, CA 150 WE D E, CA 160 WE D E, and CA 200 WE D E. All these models are made of painted steel sheet to withstand weather influences and high temperatures. The fan is equipped with a powerful, ball-bearing motor that ensures a long service life.

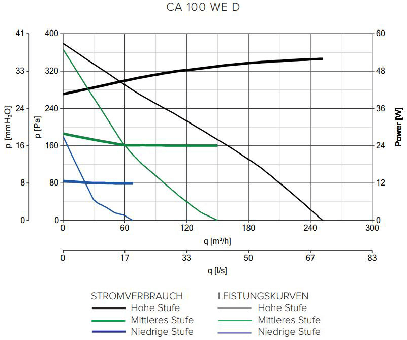

The differences between the variants mainly lie in the nominal diameter (NW) and the corresponding performance data. For example, the CA 100 WE D offers a maximum air output of 252 m³/h and a maximum speed of 2390 RPM, while the CA 200 WE D E has a higher air output of 680 m³/h and a maximum speed of 2495 RPM. These differences are crucial for selecting the appropriate variant based on the specific requirements of the application area.
- Quiet Operation: Mounting on the outer wall relocates the noise source outside the building.
- Easy Installation: The mounting accessories are included in the delivery.
- High Safety: Protection class IPX5 provides effective water protection.
- Energy Efficiency: All models comply with current ErP directives.
For a comprehensive overview of the differences and similarities of the variants, here is a table:
| Model | Maximum Power | Maximum Air Output | Maximum Speed | Sound Pressure Lp -3m | Maximum Temperature |
| CA 100 WE D | 50 Watts | 252 m³/h | 2390 RPM | 50.1 dB(A) | +60°C |
| CA 125 WE D | 50 Watts | 328 m³/h | 2350 RPM | 49.5 dB(A) | +60°C |
| CA 150 WE D E | 100 Watts | 625 m³/h | 2520 RPM | 42.9 dB(A) | +55°C |
| CA 200 WE D E | 100 Watts | 680 m³/h | 2495 RPM | 39.1 dB(A) | +55°C |
If you need a powerful and quiet solution for your ventilation, the Vortice external wall tubular centrifugal fan CA 100 WE D is the perfect choice. For larger requirements, we recommend the main variant Vortice external wall tubular centrifugal fan CA 200 WE D E.
