Vortice external wall tubular centrifugal fan CA 125 WE D

Efficient Ventilation with the Vortice External Wall Tubular Centrifugal Fan CA 125 WE D

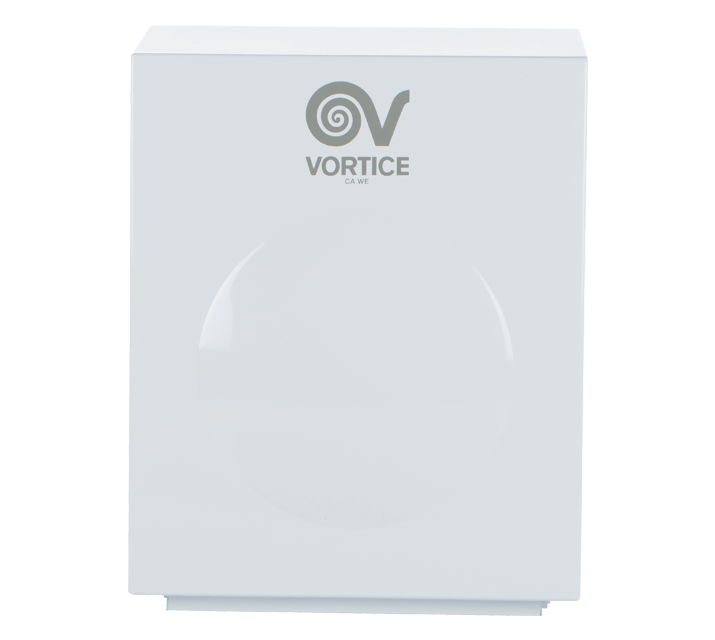

The Vortice external wall tubular centrifugal fan CA 125 WE D is an excellent choice for effective and quiet ventilation in various applications, including bathrooms, kitchens, and commercial spaces. This fan is part of the CA-WE external wall tubular fan series and provides an ideal solution for improving air quality by efficiently expelling the drawn-in air to the outside.

The modern design and compact dimensions of the fan allow for inconspicuous wall installation, while the robust housing made of painted and galvanized steel ensures durability. The CA 125 WE D differs from the main variant, the Vortice external wall tubular centrifugal fan CA 200 WE D E, mainly by the nominal diameter (NW), which is 125 mm. This makes it particularly suitable for applications where space is limited or lower air performance is required.

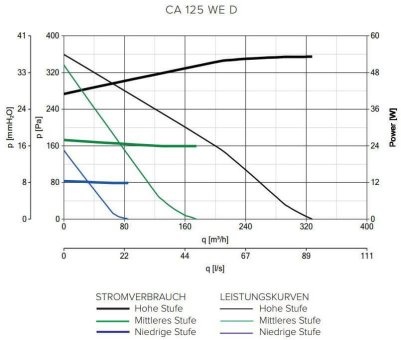

The Vortice external wall tubular centrifugal fans are characterized by their high energy efficiency and quiet operation. With a maximum air flow rate of 328 m³/h and a sound pressure level of only 49.5 dB(A), the CA 125 WE D is ideal for use in residential and commercial spaces. The 3-speed motor control allows for flexible adjustment of the fan speed, resulting in optimal air circulation.

Here are the key similarities and differences of the Vortice external wall tubular centrifugal fans:

• Model Variants: Various models such as CA 100 WE D, CA 125 WE D, CA 150 WE D E, CA 160 WE D E, and CA 200 WE D E offer different nominal diameters and power levels.
• Material: All models are made of painted steel sheet, ensuring weather resistance and durability.
• Energy Efficiency: All models are certified according to the ErP Directive 2018 and offer high energy efficiency.
• Installation: Easy assembly and installation in various positions, including necessary fastening materials.
• Noise Level: The placement of the fan on the outside wall minimizes noise pollution inside the building.

Overall, the Vortice external wall tubular centrifugal fan CA 125 WE D provides an excellent solution for those who value efficient and quiet ventilation. When selecting the right variant, specific requirements regarding nominal diameter and air performance should be taken into account.
