Vortice external wall tubular centrifugal fan CA 200 WE D E

Vortice outdoor wall fan CA200WE-D-E

These outside wall fans are ideal for communal showers, bathrooms, toilet facilities, catering rooms, canteens, etc. as the air drawn in through a pipe system often has to be transported to the outside. The Casafan CA-WE series allows you to move the noise generated by the fan outside.

• Design - Elegant, modern design with compact dimensions. Stable housing made of white painted and galvanized sheet steel, with integrated non-return valve.
• Quality - Encapsulated, ball-bearing, 3-stage motors with thermal overload protection ensure a long, trouble-free service life of the fan.
• Safety - Protection class IPX5, splash water protection, protection class I, max. conveyor temperature 55-60°C.
• Quiet - By mounting on the outside wall, the noise source is moved from the building to the outside - and is therefore correspondingly low noise inside.
• Easy to install - Installation possible in any position. Fastening material (screws and dowels) are included in the scope of delivery with KlimaLex.
• Controls - Motors can be speed-controlled on both stages using a stepless controller or 5-stage transformer. This makes it easy to set the ideal working point.
• Performance - The impeller unit balanced with the motor ensures high air performance with high pressure stability.
• Environmentally friendly - After the life cycle, all parts can be dismantled for recycling and are marked in accordance with WEEE regulations.
• Problem-free - A spring-supported non-return valve prevents small animals and objects from entering and cold or warm outside air from flowing back into the pipe system.
• Accessories - Extensive accessories such as suction side protective grilles, pipe connectors, additional check valves, sensors for smoke, humidity and thermostats as well as overrun and interval relays round off this fan system, stepless speed controller WS 1,5 A/U (#98150), 5-stage-transformer SCNR5-CA (#12986).

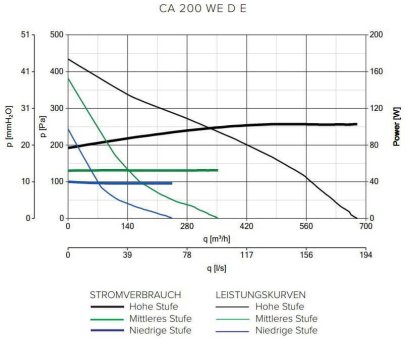

Technical Details Vortice CA 200 WE DE

Voltage	220-240 volts ~50Hz
Maximum Performance	100 watts
Maximum Air Flow	680 m³/h
Maximum speed	2400 U/min
Total pressure Pmax	443.3PA
Sound pressure Lp -3m	39.1dBA
Number of Levels	3
Color	white
Material	galvanized sheet steel
Degree of protection	IPX5
Protection class	I
Maximum temperature	+ 55°C

* Sound pressure level measured at 3 m distance in free field according to standard EN ISO 9614.
