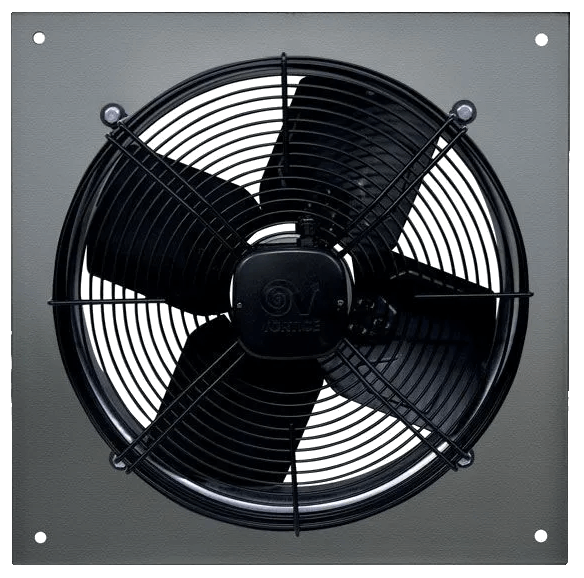

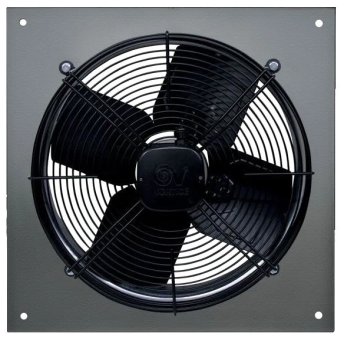

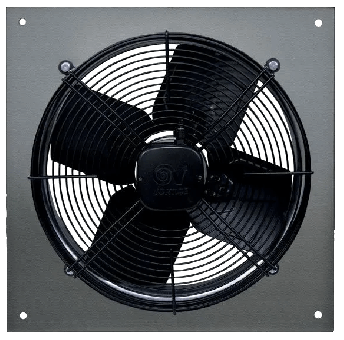

Powerful Axial Wall-Mounted Fan – Model 45/4 T - 230V/50Hz
The 45/4 T - 230V/50Hz axial fan from the proven A-E series stands out with its high efficiency, durable construction, and versatile application range. Designed for wall installation, this fan is ideal for ventilating industrial halls, workshops, storage rooms, or technical facilities. The hammer grey powder-coated housing not only ensures durability but also blends seamlessly into industrial environments.
Equipped with a ball-bearing, speed-controllable motor in insulation class F, this fan delivers reliable and long-lasting performance. The galvanized steel construction ensures stability and corrosion resistance, even under demanding conditions. With easy wall mounting, a compact design, and strong airflow, this fan is the perfect solution for effective and continuous air supply and exhaust.
Whether used for fresh air intake or the extraction of stale air – this axial fan offers a well-balanced combination of performance, noise level, and energy efficiency.
| Number of Poles | 4 |
| Maximum Speed | 1350 RPM |
| Color | Hammer-finish grey, painted |
| Airflow | 5187 m³/h |
| Maximum Total Pressure | 155 Pa |
| Weight | 6.5 kg |
| Power | 370 watts |
| Material | Galvanized steel |
| Motor | 1 stage, insulation class F, speed-controllable, three-phase, ball bearing |
| Nominal Width (NW) | 450 mm |
| Sound Pressure Lp -3m | 58.0 dB(A) |
| Protection Rating | IP54 |
| Protection Class | I |
| Voltage | 380-415 Volts / 50 Hz |
| Current Consumption | 0.73 A |
| Operating Temperature | –30 to +50 °C |
| Fan Type | Axial fan, wall-mounted fan |
- Air output
- 5187 m³/h
- Amperage
- 0.73 A
- Air pressure max in Pa
- 155 Pa
- Sound pressure
- 58.0 dB(A)
- Model
- 45/4 T - 230V/50Hz
- Voltage
- 380-415 Volts / 50 Hz
- Power
- 370 watts
- Weight
- 6.5 kg
- No. of blades
- 4
- Dimensions
- 450 mm
- Revolutions
- 1350 RPM
