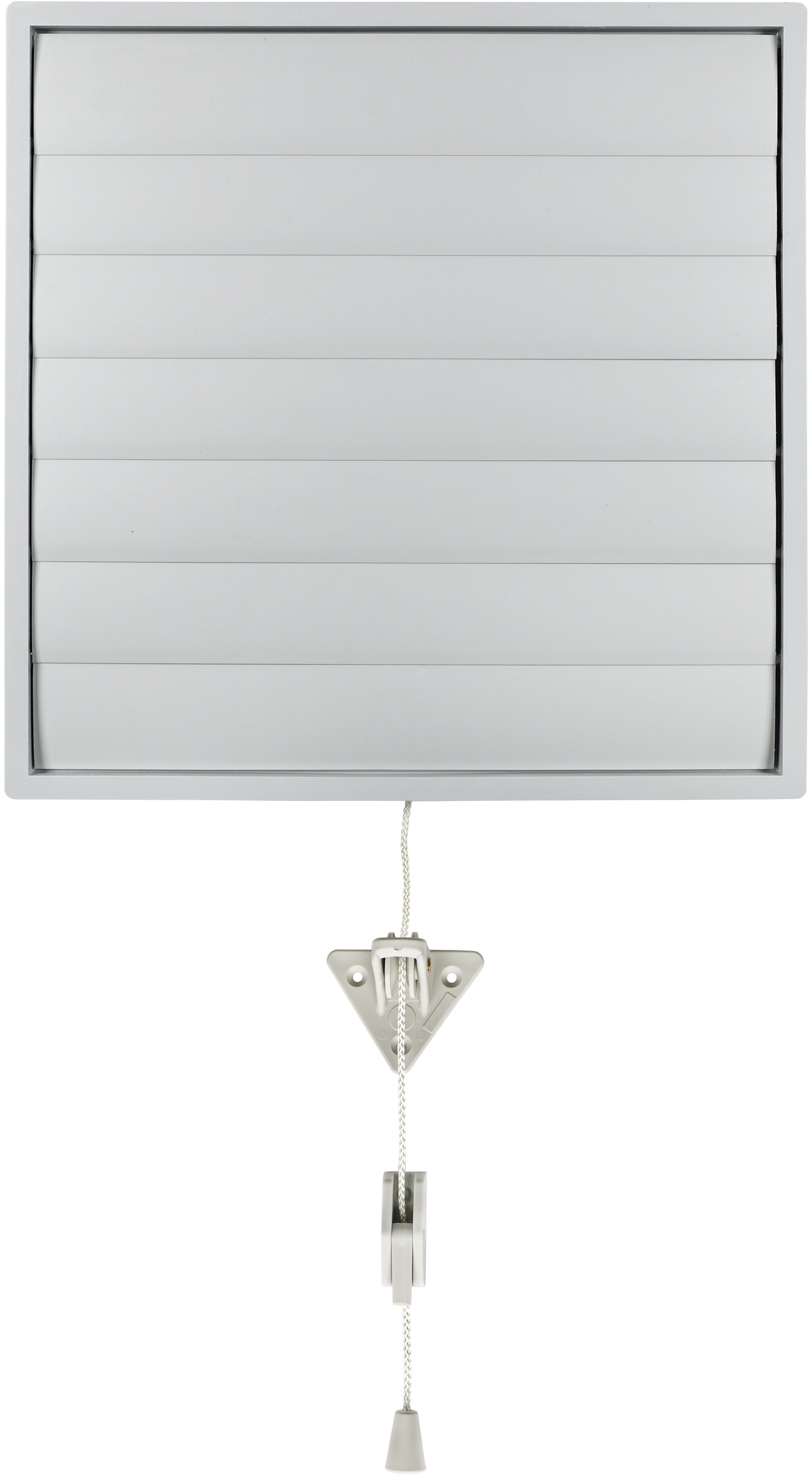

Adjustable flap HKS NW150

Hand-adjustable flap, for NW 150 mm, UV-resistant plastic, gray, closes with spring supporty

measure D: 160 mm
measure H/B: 194 mm
measure LA: 140 mm
measure T: 22 mm

To prevent cold air in case of fan arrest and the ingress of dirt, birds, larger insects and other objects into a ventilation opening, one uses shutters that open only when needed. The HKS series is manually adjustable by means of drawstring.

Type	Item No.	Description	Dimension D	H/B	LA dimension	Dimension T
HKS 15	92015	Hand adjustable flap HKS 15, for NW 150 mm	160	194	140	22
HKS 20	92020	Hand adjustable flap HKS 15, for NW 200 mm	210	244	182	22
HKS 25	92025	Hand adjustable flap HKS 15, for NW 250 mm	260	294	232	26
HKS 30	92030	Hand adjustable flap HKS 15, for NW 300 mm	310	347	276	26
HKS 35	92035	Hand adjustable flap HKS 15, for NW 350 mm	360	397	310	26
HKS 40	92040	Hand adjustable flap HKS 15, for NW 400 mm	420	459	364	26

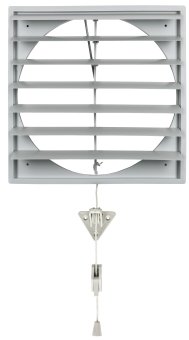

HKS 45	92045	Hand adjustable flap HKS 15, for NW 450 mm	460	501	395	31
HKS 50	92050	Hand adjustable flap HKS 15, forr NW 500 mm	510	549	445	31


Shipping Weight: 0.5 kg
