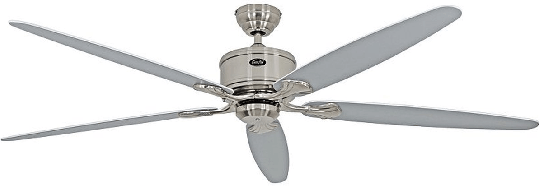

CasaFan ceiling fan Eco Elements 180 chrome brushed, white / lightgrey with remote control
Saving energy helps the environment and your wallet. The Eco Elements 180 series saves energy in two ways: on the one hand in winter by returning the warm air collected under the ceiling to the floor area & on the other hand by the energy-saving DC/EC motor with sensationally low consumption! The Eco Elements 180 has about 60% less power consumption than conventional ceiling fans with the same air performance. The integrated remote control controls forward and reverse as well as 6 levels (incl. slow motion level).
Advantages of the ceiling fan Eco Elements 180
DesignCeiling fan in an elegant, classic design. Housing galvanically treated and clear coated (metal finish) or 2-layer coated (varnish finish). 5 multi-layer wooden reversible blades in Ø 180 included in delivery, painted or coated with decor and sealed to protect against moisture penetration.
QualityBall-bearing, lifetime-lubricated and self-cooling motor, dynamically balanced, with thermal overload protection for whisper-quiet operation.
SecurityProtection class I, max. ambient temperature 45 °C. suppressed.
PerformanceThe powerful yet very quiet motor ensures the best air performance with optimized energy consumption. The Eco Elements consumes less than 2 watts on a low setting!
VarietyAvailable in 5 housing colours: antique brass, antique brown, graphite lacquer, white lacquer or brushed chrome.
Energy-efficientAt the lowest speed, less than 2 watts, at full speed only 27 watts of power consumption - that's a world record for a ceiling fan (>410 m³/h air performance per watt of electrical consumption).

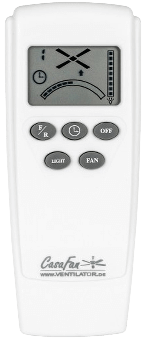

ControlThe scope of delivery includes a 6-stage remote control (incl. slow-motion stage) with switching forward/reverse and dimming the lights.
CombinablePrepared for the installation of a lamp (can be switched independently of fan operation). Longer ceiling rods for sloping and high rooms, natural panels, replacement panels in many wood and lacquer colors see accessories.
Environmentally friendlyAfter the life cycle, all parts are sorted for recycling dismountable.
Easy to installMounting on sloping ceilings up to 38° is possible thanks to the patented mounting joint (a longer ceiling rod may be required). simple, quick assembly
LightingOptionally available as an accessory
Technical data
- Number of Wings: 5
- Case color: chrome brushed
- Wing decor: white / lightgrey
- Performance: 1,3 - 27 Watt
- Voltage 100-240 Volt
- Flow rate highest level 13187 m³/h

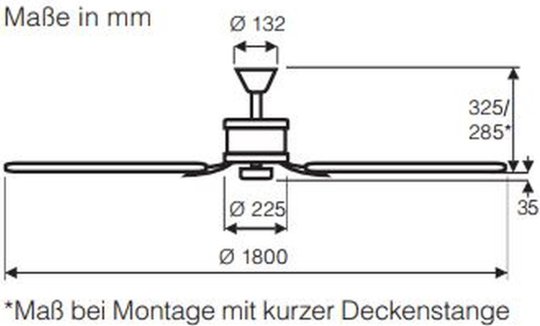

- Size: Ø 180 cm
- Stage number: 6
- Speed max .: 140 U / min
- Weight: 6.9 kg
- Inclusive KlimaLex.de service
Performance data "Eco Elements 180"
| Fan sound power | Fan sound pressure | Speed | |||
|---|---|---|---|---|---|
| LW level 1 | below 32 dB(A) | LP - 3 m level 1 | below 15 dB(A) | level 1 | 30 (min-1) |
| LW level 2 | below 32 dB(A) | LP - 3 m level 2 | below 15 dB(A) | level 2 | 53 (min-1) |
| LW level 3 | 32.6 dB(A) | LP - 3 m level 3 | 17.9 dB(A) | level 3 | 73 (min-1) |
| LW level 4 | 39.5 dB(A) | LP - 3 m level 4 | 27.4 dB(A) | level 4 | 95 (min-1) |
| LW level 5 | 46.5 dB(A) | LP - 3 m level 5 | 30.2 dB(A) | level 5 | 116 (min-1) |
| LW level 6 | 50.7 dB(A) | LP - 3 m level 6 | 30.3 dB(A) | level 6 | 138 (min-1) |
 |
 |
 |
| Picture | Product | Case color | Wing decor | Art.-No. | Price |
|---|---|---|---|---|---|
|

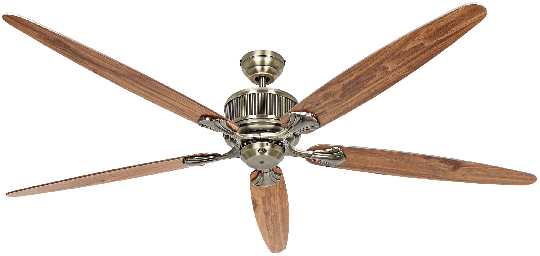

Ceiling Fan CasaFan Eco Elements 180 MA-EA/NB | brass antique | antique oak / walnut | 518080 | 439,99 € Price incl. 19% VAT plus Shipping |
|

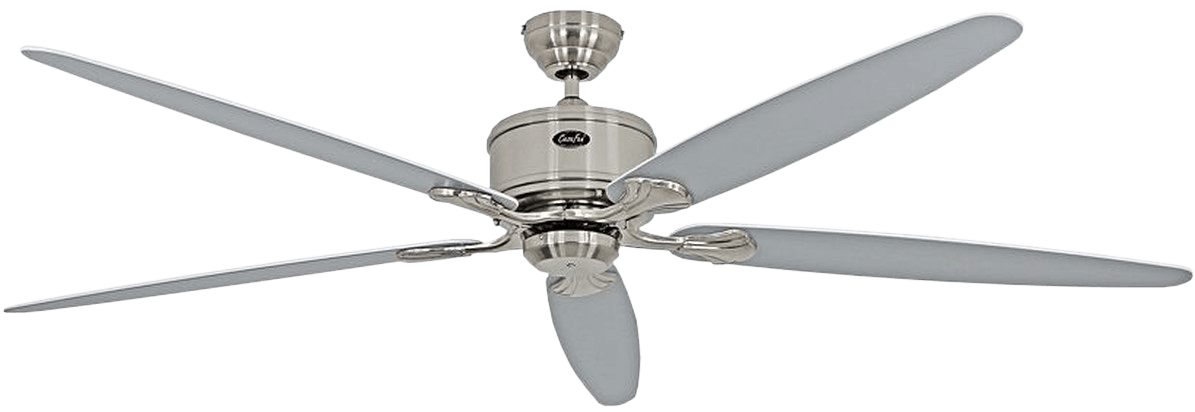

Ceiling Fan CasaFan Eco Elements 180 BN-WE-LG | chrome brushed | white / lightgrey | 518082 | 439,99 € Price incl. 19% VAT plus Shipping |
|

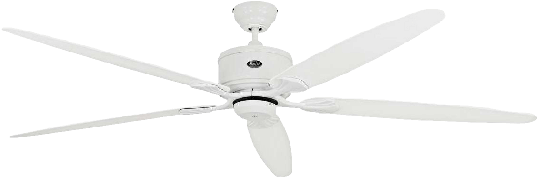

Ceiling Fan CasaFan Eco Elements 180 WE-WE/LG | white | white / lightgrey | 518081 | 439,99 € Price incl. 19% VAT plus Shipping |
.png)
|

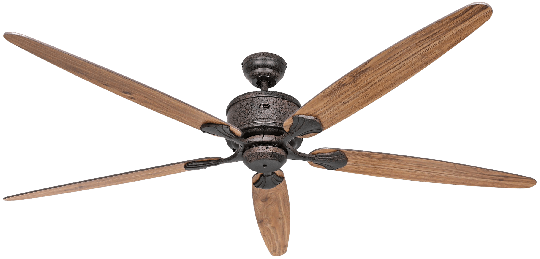

Ceiling Fan CasaFan Eco Elements 180 BA-EA/NB | brown antique | antique oak / walnut | 518083 | 439,99 € Price incl. 19% VAT plus Shipping |
- Voltage
- 110 - 240 volt
- Manufacturer
- casafan
- Control
- remote control
- Casing
- chrome brushed
- Power
- 24 watt
- Product type
- ceiling fan
- Style
- classic, modern
- Blade decor
- white / lightgrey
- Blade material
- wood
- No. of blades
- 5
- Lighting
- optional
- ECO
- yes
- Diameter in cm
- 180
- Commercial use
- n/a
- Outdoor use
- indoor
- Sloped ceilings
- suited
- Ceiling distance
- 300 mm / 225 mm
- Forward-/Reverse mode
- via remote control
- 0-10 V interface
- w/o
