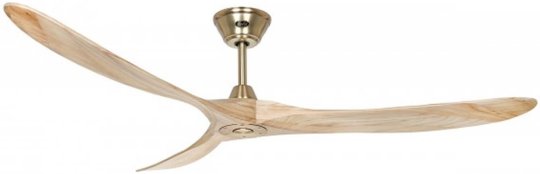

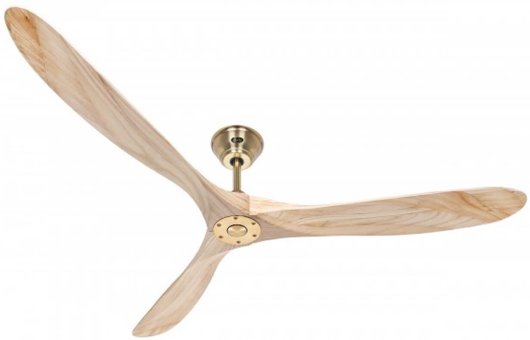

Ceiling fan Eco Genuino
|
Remote control Motor 6 levels, forward and reverse run. Wall mount included. |
Noble, stylish, timeless & energy-saving. A quiet one Ceiling fan with remote control from the Eco Genuino 180 series by CasaFan, the all expectations. It saves hard cash not only through the energy-saving DC/EC motor alone. The counter-flow function ensures efficient heating of the rooms in winter, as the warm air accumulated on the ceiling is gently and evenly distributed in the room without being noticed. The Eco Genuino thus provides a fresh cooling effect in summer and pleasant warmth in winter.
With the supplied remote control, forward and Reverse and control the 6 levels of the motor conveniently and easily. The included ceiling rod allows mounting on sloping ceilings with an angle of up to 16°. In the case of steeper angles or higher ceilings, you can use optionally available, longer ceiling rods to help yourself and thus create an optimal room climate in your own four walls.
The Eco Genuino is not suitable for luminaire mounting.
Advantages and technical data Eco Genuino
Quiet with remote control, energy-saving
The supplied remote control with wall bracket controls Forward and reverse, as well as 6 levels. Balanced motor & blades ensure the silent run, our KlimaLex service for maximum satisfaction.
Classic and Modern
Classic with a modern twist. Cozy and elegant at the same time - the CasaFan ECO GENUINO 180 ceiling fan is depending on Execution meets all these requirements. Warm wood colors of the 3rd Wing blades provide a feeling of security, can appear equally serious and charming. Finished walnut or natural color - you decide!
Economic saving
The powerful yet very quiet DC/EC motor ensures the energy-saving, patented direct current technology for the best air performance. Compared to similar models, the ratio of air flow and power consumption is outstanding. See for yourself!
With the counter-rotation function, the ECO GENUINO 180 can Gently distribute the warm air below the ceiling throughout the room. By the way, you save electricity & heating costs in winter.
Mounting on sloping ceilings
Installation on sloping ceilings up to 16° is possible with the supplied ceiling rod. Steeper angles are also no problem if you use a longer ceiling rod that is available as an option. Easy & quick assembly with only 2 screws (Ø min. 4.5 mm at a distance of 70 - 110 mm).
Performance data "Eco Genuino "
| Fan sound power | Fan sound pressure | Speed | |||
|---|---|---|---|---|---|
| LW level 1 | below 32 dB(A) | LP - 3 m level 1 | below 15 dB(A) | level 1 | 50 (min-1) |
| LW level 2 | below 32 dB(A) | LP - 3 m level 2 | below 15 dB(A) | level 2 | 57 (min-1) |
| LW level 3 | below 32 dB(A) | LP - 3 m level 3 | below 15 dB(A) | level 3 | 77 (min-1) |
| LW level 4 | 33.7 dB(A) | LP - 3 m level 4 | below 15 dB(A) | level 4 | 95 (min-1) |
| LW level 5 | 39.4 dB(A) | LP - 3 m level 5 | 18.9 dB(A) | level 5 | 114 (min-1) |
| LW level 6 | 42.5 dB(A) | LP - 3 m level 6 | 22.0 dB(A) | level 6 | 132 (min-1) |
- Control
- remote control
- Voltage
- 230 volt
- Product type
- ceiling fan
- Manufacturer
- casafan
- Power
- 30 watt
- Casing
- chrome brushed
- Style
- modern
- Blade decor
- nature wood
- Blade material
- solid wood
- No. of blades
- 3
- Lighting
- without
- ECO
- yes
- Diameter in cm
- 180
- Commercial use
- n/a
- Outdoor use
- indoor
- Sloped ceilings
- suited
- Ceiling distance
- 285 mm / 190 mm
- Forward-/Reverse mode
- via remote control
- 0-10 V interface
- w/o
