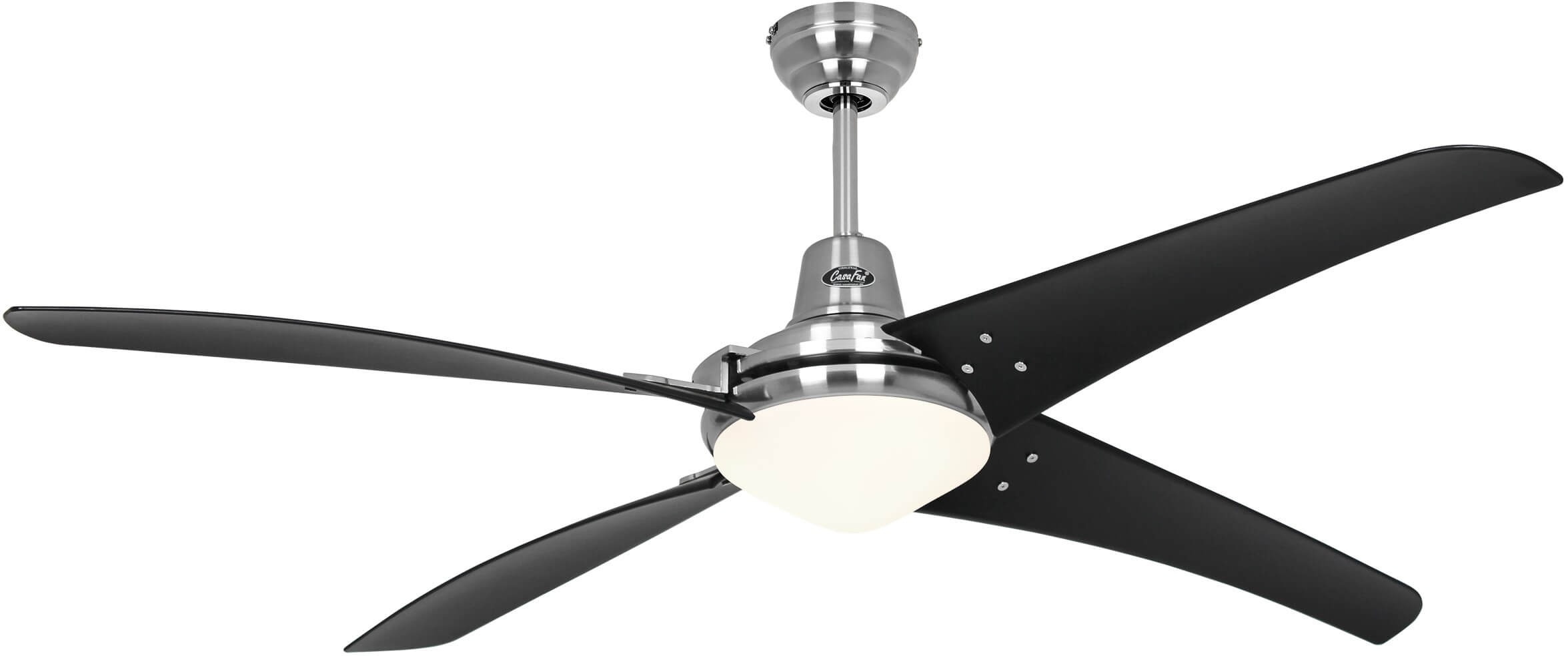

Casafan Mirage ceiling fan with remote control
| Housing color | chrome brushed |
| Wing decor | plastic black |
| Diameter | 142 cm |
| Number of wings | 4 wings |
| For room sizes up to | 32 m² suitable |
| Number of steps | 3 levels via remote control |
| Control | Including remote control, forward/reverse |
| Lighting | Included light |
| Power luminaire max. | ESL possible, 2 x 40 Watt, E27 |
| Special features | suitable for slopes, longer ceiling rod possible |
| Power motor min. | 16 watt |
| Power motor max. | 64 watt |
| maximum rotational speed | 231 revolutions per minute |
Mounting: 2 screws Ø min. 4.5 mm at a distance of 70 -110 mm

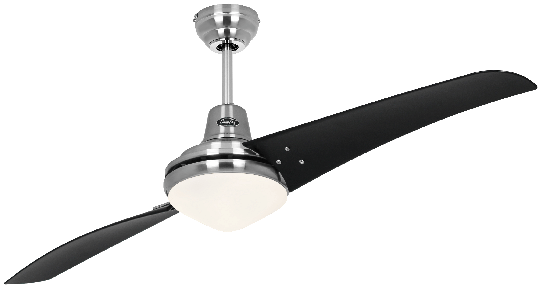

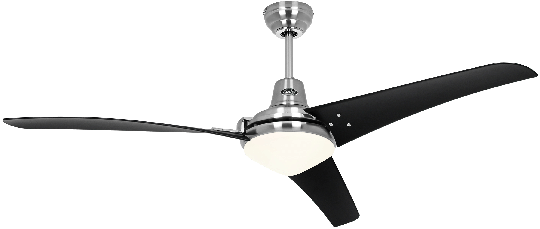

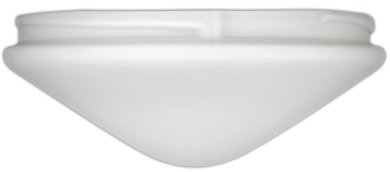

Casafan Mirage is a quiet ceiling fan with remote control, diameter: 132 cm, 4 blades (optional 2,3,4 possible), including remote control (motor 3 levels, light on/off/dim) with wall bracket, including frosted glass lamp 2 x 40 W E27, suitable for energy saving bulbs, 220-240 volts 50 Hz, motor 16-64 watts, forward/reverse - summer operation/winter operation - via slide switch, maximum speed 231 revolutions per minute, including 2 ceiling rods (200 and 100 mm), distance ceiling - sash 400 mm (300 mm with short ceiling rod), mounting on slopes up to 14° possible, balanced motor and sash, suitable for room sizes up to 32 m², Accessories such as replacement sashes, longer ceiling rods and wall switches available. If you have any questions about the ceiling fan, please feel free to contact our Klimalex Team!
Performance data "Mirage"
| Fan sound power | Fan sound pressure | Speed | |||
|---|---|---|---|---|---|
| LW level 1 | below 32 dB(A) | LP - 3 m level 1 | below 15 dB(A) | level 1 | 86 (min-1) |
| LW level 2 | 45.1 dB(A) | LP - 3 m level 2 | 27.6 dB(A) | level 2 | 165 (min-1) |
| LW level 3 | 58.3 dB(A) | LP - 3 m level 3 | 40.8 dB(A) | level 3 | 230 (min-1) |
| Picture | Product | Housing color | Wing decor | Art.-No. | Price |
|---|---|---|---|---|---|
 |
Casafan Mirage BN-SI with remote control | Chrome brushed | Plastic Lacquer silver grey | CasaFan.9313210 | 309,99 € Price incl. 19% VAT plus Shipping |
 |
Casafan Mirage BN-SW with remote control | Chrome brushed | Plastic Lacquer black | CasaFan.9313211 | 309,99 € Price incl. 19% VAT plus Shipping |
 |
Casafan Mirage BN-WE with remote control | Chrome brushed | Plastic Lacquer white | CasaFan.9313208 | 309,99 € Price incl. 19% VAT plus Shipping |
 |
Casafan Mirage BN-TR with remote control | Chrome brushed | Plastic semi-transparent | CasaFan.9313209 | 309,99 € Price incl. 19% VAT plus Shipping |
General
- The voltage details on the nameplate are to conform with the available mains voltage.
- The building mains must be earthed!
- Only operate the unit when completely assembled!
Important
- It is recommended that a specialist electrician is used for making the electrical connection to this fan.
Safety instructions
Before accessing the connection, all current carrying conductors are to be isolated. The mains connections to which you are connected is to comply with current specifications. The fixed wire connection is to be provided with a multi-pole isolator with contact gaps of at least 3 mm. We recommend that the connection be made by a qualified electrician. The construction of the holder and the output box is to be able to bear the weight of the fan when being moved, ie, about 30 kg minimum. Chose a secure, safe location. None of the fan blades are to be less than 2.30 m from the ground. The fan is to be correctly earthed. Before first using the setup, all electrical connections are to be checked in order to prevent any fall, fire or electric shock.
Operating your fan
Make sure that the assembly has been completely finished. Use a stepped transformer for controlling the speed, optional extra. Never use a dimmer or a phase angle or phase inverse angle controller.
Source: manufacturer's operating instructions (CasaFan MIRAGE).
- Manufacturer
- CasaFan
- Control
- remote control
- WiFi
- no
- Product type
- ceiling fan
- Power
- 8-53 watts
- Casing
- chrome brushed
- Voltage
- 230 V
- Style
- modern
- Blade decor
- plastic black
- Blade material
- plastic
- No. of blades
- 2, 3, 4
- Lighting
- yes
- Diameter in cm
- 142
- Sloped ceilings
- suited
- Ceiling distance
- 295 mm - 200 mm
- Forward-/Reverse mode
- via remote control
- 0-10 V interface
- no
- Commercial use
- no
- Outdoor use
- no
- Shipping Weight
- 8.5 kg
