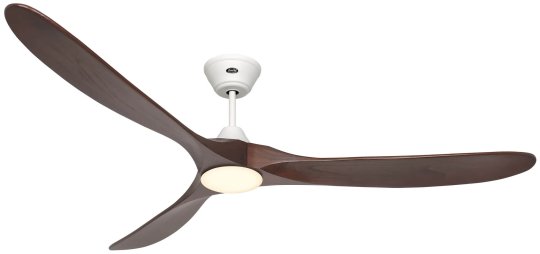

Ceiling fan Eco Genuino-L 180 matte white , walnut finished
|
Remote control Motor 6 levels, forward and reverse run. Wall mount included. |
Elegant, stylish, timeless, and energy-efficient. A quiet ceiling fan with light and remote control from the Eco Genuino-L 180 series by CasaFan that meets all expectations. It saves real money, not only thanks to its energy-saving DC/EC motor. The counter-rotating function ensures efficient room heating in winter, as the warm air that accumulates at the ceiling is gently and discreetly distributed evenly throughout the room. Thus, the Eco Genuino-L provides a refreshing cooling effect in summer and pleasant warmth in winter.
The included remote control allows for convenient and easy control of forward and reverse rotation, the light (on/off/dimming), and the motor's 6 speed settings. The included ceiling rod allows for installation on sloping ceilings with an angle of up to 18°. For steeper angles or higher ceilings, longer ceiling rods are available as an option, ensuring optimal indoor air quality.
Advantages and technical data Eco Genuino-L 180 matte white, walnut finished
Quiet and energy-saving with remote control
The included remote control with wall mount controls forward and reverse rotation, light, and 6 speed settings. A balanced motor and blades ensure whisper-quiet operation, and our KlimaLex service guarantees your complete satisfaction.
Classic and Modern
Classic touches, modern design. Cozy yet elegant – the CasaFan ECO GENUINO-L 180 ceiling fan meets all these requirements, depending on the version. Warm wood tones on the three blades create a feeling of comfort and can appear both sophisticated and charming. A matte black and white or a natural color – the choice is yours!Energy-saving
The powerful yet very quiet DC/EC motor ensures optimal air performance thanks to the energy-saving, patented direct current technology. Compared to similar models, the ratio of airflow to power consumption is outstanding. See for yourself!
Thanks to the counter-rotation function, the ECO GENUINO-L 180 can gently distribute the warm air located near the ceiling throughout the room. As a bonus, you save on electricity and heating costs in winter.
Mounting on Sloping Ceilings
Mounting on sloping ceilings is possible up to 18° with the included ceiling rod. Steeper angles are also no problem thanks to the use of an optional longer ceiling rod. Easy & quick installation with only 2 screws (min. Ø 4.5 mm, spaced 70–110 mm apart).
ATTENTION: The light contains built-in LED lamps. Individual LEDs cannot be replaced. Replacement LED modules for repairs are available.
| Housing color: | matte white |
|---|---|
| Wing dekor: | walnut finished |
| Size Ø (diameter): | 180 cm |
| Number of blades: | 3 |
| Blade extras: | Blades made of laminated solid wood |
| Number of speeds: | 6 |
| Lighting: | Lamp incl. |
| Control: | Remote control |
| Motor power min.: | 5 watts |
| Motor power max.: | 29.3 watts |
| Speed max.: | 132 RPM |
| Voltage: | 230 volts/~50 Hz |
| Weight: | 8 kg |
| Special features: | Energy-saving |
| Style: | Modern |
| Distance ceiling - blades: | 395 mm / 295 mm with shortened downrod |
| Installation on sloping ceilings: | up to 18° with included downrod, steeper angles possible with separately available long downrod |
Leistungsdaten "Eco Genuino-L 180 cm"
| Schallleistungspegel | Schalldruckpegel | Drehzahl | |||
|---|---|---|---|---|---|
| LW Stufe 1 | 37,0 dB(A) | LP - 3 m Stufe 1 | unter 15 dB(A) | Stufe 1 | 46 (min-1) |
| LW Stufe 2 | 37,0 dB(A) | LP - 3 m Stufe 2 | unter 15 dB(A) | Stufe 2 | 60 (min-1) |
| LW Stufe 3 | 38,0 dB(A) | LP - 3 m Stufe 3 | unter 15 dB(A) | Stufe 3 | 73 (min-1) |
| LW Stufe 4 | 38,0 dB(A) | LP - 3 m Stufe 4 | 17,5 dB(A) | Stufe 4 | 89 (min-1) |
| LW Stufe 5 | 42,0 dB(A) | LP - 3 m Stufe 5 | 21,5 dB(A) | Stufe 5 | 110 (min-1) |
| LW Stufe 6 | 46,0 dB(A) | LP - 3 m Stufe 6 | 25,5 dB(A) | Stufe 6 | 132 (min-1) |
| Fan sound power | Fan sound pressure | Speed | |||
|---|---|---|---|---|---|
| LW level 1 | 37.0 dB(A) | LP - 3 m level 1 | below 15 dB(A) | level 1 | 46 (min-1) |
| LW level 2 | 37.0 dB(A) | LP - 3 m level 2 | below 15 dB(A) | level 2 | 60 (min-1) |
| LW level 3 | 38.0 dB(A) | LP - 3 m level 3 | below 15 dB(A) | level 3 | 73 (min-1) |
| LW level 4 | 38.0 dB(A) | LP - 3 m level 4 | 17.5 dB(A) | level 4 | 89 (min-1) |
| LW level 5 | 46.0 dB(A) | LP - 3 m level 5 | 21.5 dB(A) | level 5 | 110 (min-1) |
| LW level 6 | 46.0 dB(A) | LP - 3 m level 6 | 25.5 dB(A) | level 6 | 132 (min-1) |
- Casing
- matte white
- Manufacturer
- CasaFan
- Voltage
- 230 V
- Control
- remote control
- Product type
- ceiling fan
- Power
- 30 watts
- Style
- modern
- Blade decor
- walnut finished
- Blade material
- wood
- No. of blades
- 3
- Lighting
- with
- ECO
- yes
- Diameter in cm
- 180
- Commercial use
- n/a
- Outdoor use
- indoor
- Sloped ceilings
- suited
- Ceiling distance
- 395 mm / 295 mm
- Forward-/Reverse mode
- via remote control
- 0-10 V interface
- w/o
