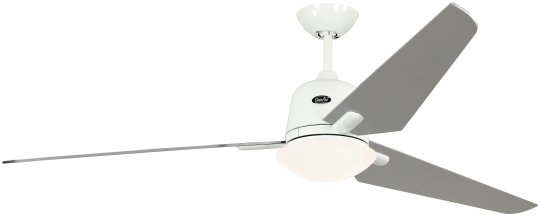

Energy-saving ceiling fan with stylish design - Eco Aviatos 162
| ✓ Energy saving ceiling fan | ✓ 6 levels via remote control |
| ✓ Balanced motor and blades | ✓ Forward/reverse operation |
| ✓ 3 interchangeable blades | ✓ Slow motion stage |
| ✓ incl. remote control and frosted glass lamp (2 x 40 watts, E27) | ✓ Sleep timer |
| ✓ Energy saving bulb suitable | ✓ Light on/off |
Mounting: 2 screws Ø min. 4.5 mm at a distance of 70 - 110 mm
The scope of delivery also includes: Remote control, 2 ceiling rods (150 mm/ 60 mm)
| Housing color | white |
| Wing dekor | silver |
| Size/Diameter | 162 cm |
| Number of wings | 3 |
| Wing extras | Exchange sash possible |
| Number of steps | 6 levels with remote control |
| Control | inclusive remote control, 6 levels, forward/reverse - summer/winter -, sleep timer, 0-10 Volt optional, light on/off |
| For rooms up to | 25 m² |
| Voltage | 110-240 volt ~50-60Hz |
| maximum reading luminaire | Energy saving bulb possible, 2 x 40, E27 |
| minimum motor power | 3.2 watts |
| maximum motor power | 25 watts |
| maximum speed | 144 revolutions per minute |
| Special features | Includes 2 ceiling rods (150 and 60 mm), energy saving, longer ceiling rod possible, suitable for slopes |
CasaFan ECO AVIATOS 162, energy saving ceiling fan, Ø 162 cm, 3 blades, 100-240 Volt~ 50-60 Hz, DC/EC motor 3,2-35 Watt, incl. radio remote control (motor 6 steps, forward/reverse - summer/winter -, sleep timer, light on/off) and wall bracket, incl. lamp 2 x 40 Watt E27, also suitable for energy saving lamps, slow motion stage, speed max. 30-144 rpm, incl. 2 ceiling rods (150 and 60 mm), distance ceiling - wing 365 mm (275 mm with short ceiling rod), mounting on slopes up to 30°, balanced motor and wing, for room sizes up to 40 m², 0-10V optional, accessories like replacement wings and longer ceiling rods available.
Performance data "Eco Aviatos 162"
| Fan sound power | Fan sound pressure | Speed | |||
|---|---|---|---|---|---|
| LW level 1 | below 32 dB(A) | LP - 3 m level 1 | below 15 dB(A) | level 1 | 36 (min-1) |
| LW level 2 | below 32 dB(A) | LP - 3 m level 2 | below 15 dB(A) | level 2 | 62 (min-1) |
| LW level 3 | 32.1 dB(A) | LP - 3 m level 3 | below 15 dB(A) | level 3 | 95 (min-1) |
| LW level 4 | 39.3 dB(A) | LP - 3 m level 4 | 18.8 dB(A) | level 4 | 126 (min-1) |
| LW level 5 | 47.1 dB(A) | LP - 3 m level 5 | 26.6 dB(A) | level 5 | 139 (min-1) |
| LW level 6 | 51.2 dB(A) | LP - 3 m level 6 | 30.7 dB(A) | level 6 | 150 (min-1) |
 |
 |
 |
- Voltage
- 110 - 240 volt
- WiFi
- w/o
- Control
- remote control
- Product type
- ceiling fan
- Casing
- white
- Manufacturer
- casafan
- Style
- modern
- Blade decor
- silver
- Blade material
- wood
- No. of blades
- 3
- Lighting
- with
- ECO
- yes
- Diameter in cm
- 162
- Commercial use
- n/a
- Outdoor use
- indoor
- Sloped ceilings
- suited
- Forward-/Reverse mode
- via remote control
- 0-10 V interface
- w/o
