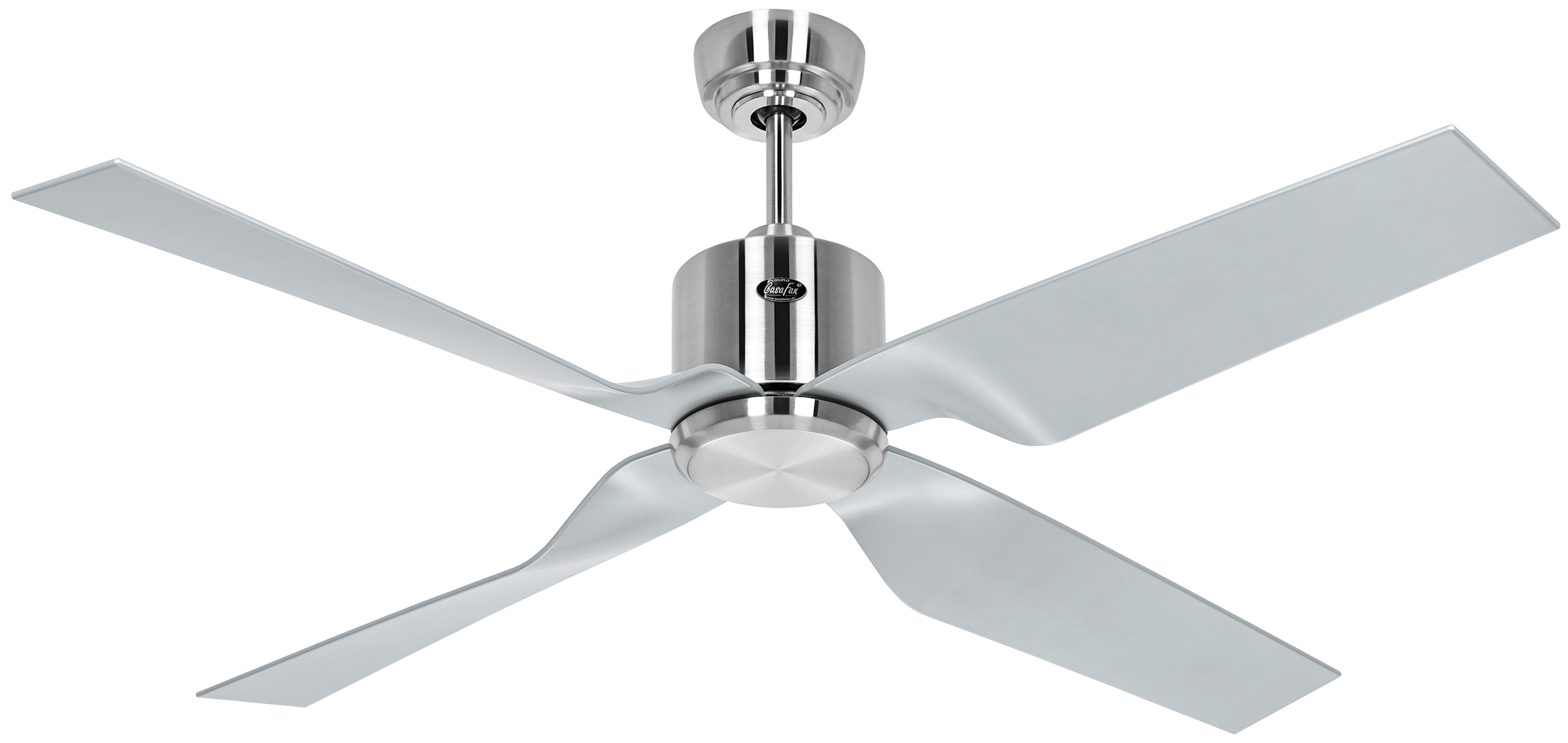

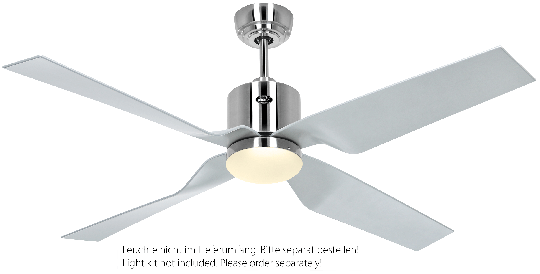

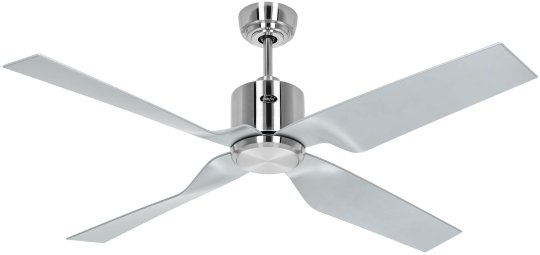

Efficient ceiling fan for modern rooms with 0-10 volt interface - Eco Dynamix II 132
| ✓ Energy-saving ceiling fan | ✓ 6 levels via remote control |
| ✓ balanced motor and wing | ✓ Forward/reverse run |

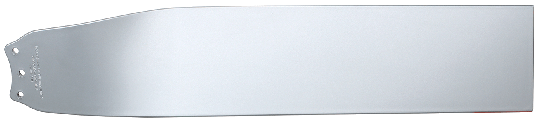

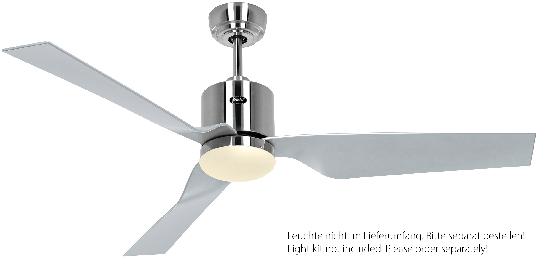

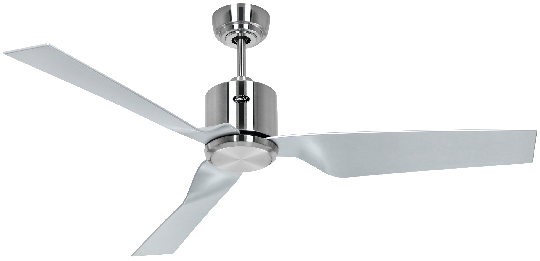

| ✓ 4 reversible sashes (either 2, 3 or 4 can be mounted) | ✓ 0-10 volt interface |
| ✓ including remote control | ✓ Sleep timer |
Assembly: 2 screws Ø min. 4.5 mm at a distance of 70 - 110 mm
The scope of delivery also includes: remote control, 2 ceiling rods (150 mm / 80 mm)
| Housing color | chrome brushed |
| Wing dekor | plastic silver |
| Size/Diameter | 132 cm |
| Number of wings | 2,3,4 |
| Number of steps | 6 levels with remote control |
| Control via radio remote control | includes remote control, 6 steps, forward/reverse - summer mode/winter mode, sleep timer, 0-10 volts optional |
| For rooms up to | 25 m² |
| Voltage | 110 - 240 Volt ~ 50-60 Hz |
| minimum motor power | 2,3 Watt |
| maximum motor power | 28 Watt |
| maximum rotational speed | 30 - 177 revolutions per minute |
| Special features | includes 2 ceiling rods (150 and 80 mm), energy saving, longer ceiling rod possible, suitable for slopes |
Casafan Eco Dynamix II, energy saving ceiling fan, diameter: 132 cm, 4 plastic blades (optional 2,3,4 mountable), 100 - 240 Volt 50 - 60 Hz, DC/EC motor 1 - 27 Watt, including radio remote control (motor 6 steps, light dimming, forward/reverse - summer mode/winter mode, sleep timer) and wall bracket, slow motion stage, Maximum speed 30 - 170 revolutions per minute, including 2 ceiling rods (150 and 80 mm), distance ceiling - sash 390 mm (320 mm with short ceiling rod, 300 mm with shortened ceiling rod), Mounting on slopes up to 23°, balanced motor and sash, suitable for room sizes up to 25 m², accessories such as lights and longer ceiling rods are available in our extensive product range. If you have any questions about the ceiling fan, please feel free to contact our Klimalex Team!
Performance data "Eco Dynamix II"
| Fan sound power | Fan sound pressure | Speed | |||
|---|---|---|---|---|---|
| LW level 1 | below 32 dB(A) | LP - 3 m level 1 | below 15 dB(A) | level 1 | 30 (min-1) |
| LW level 2 | below 32 dB(A) | LP - 3 m level 2 | below 15 dB(A) | level 2 | 60 (min-1) |
| LW level 3 | 32.0 dB(A) | LP - 3 m level 3 | below 15 dB(A) | level 3 | 92 (min-1) |
| LW level 4 | 37.4 dB(A) | LP - 3 m level 4 | 16.9 dB(A) | level 4 | 121 (min-1) |
| LW level 5 | 45.0 dB(A) | LP - 3 m level 5 | 24.5 dB(A) | level 5 | 150 (min-1) |
| LW level 6 | 51.2 dB(A) | LP - 3 m level 6 | 30.7 dB(A) | level 6 | 177 (min-1) |
 |
 |
 |
| Image | Article | Housing color | Wing color | 0-10 volts | Art. No. | Price |
|---|---|---|---|---|---|---|
 |
Ceiling fan Eco Dynamix II BG-BG 0-10 V | basalt grey | plastic lacquer basalt grey | with | Casafan.3132751 | 499,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
 |
Ceiling fan Eco Dynamix II BN-SI 0-10 V | brushed chrome | plastic paint silver | with | Casafan.3132731 | 499,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
 |
Ceiling fan Eco Dynamix II WE-WE 0-10 V | white | plastic lacquer white | with | Casafan.3132741 | 499,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
- Casing
- chrome brushed
- Product type
- ceiling fan
- Manufacturer
- casafan
- Control
- remote control
- WiFi
- w/o
- Voltage
- 110 - 240 volt
- Style
- modern
- Blade decor
- plastic silver
- Blade material
- plastic
- No. of blades
- 2, 3, 4
- Lighting
- without
- ECO
- yes
- Diameter in cm
- 132
- Commercial use
- n/a
- Outdoor use
- indoor
- Sloped ceilings
- suited
- Forward-/Reverse mode
- via remote control
- 0-10 V interface
- with
