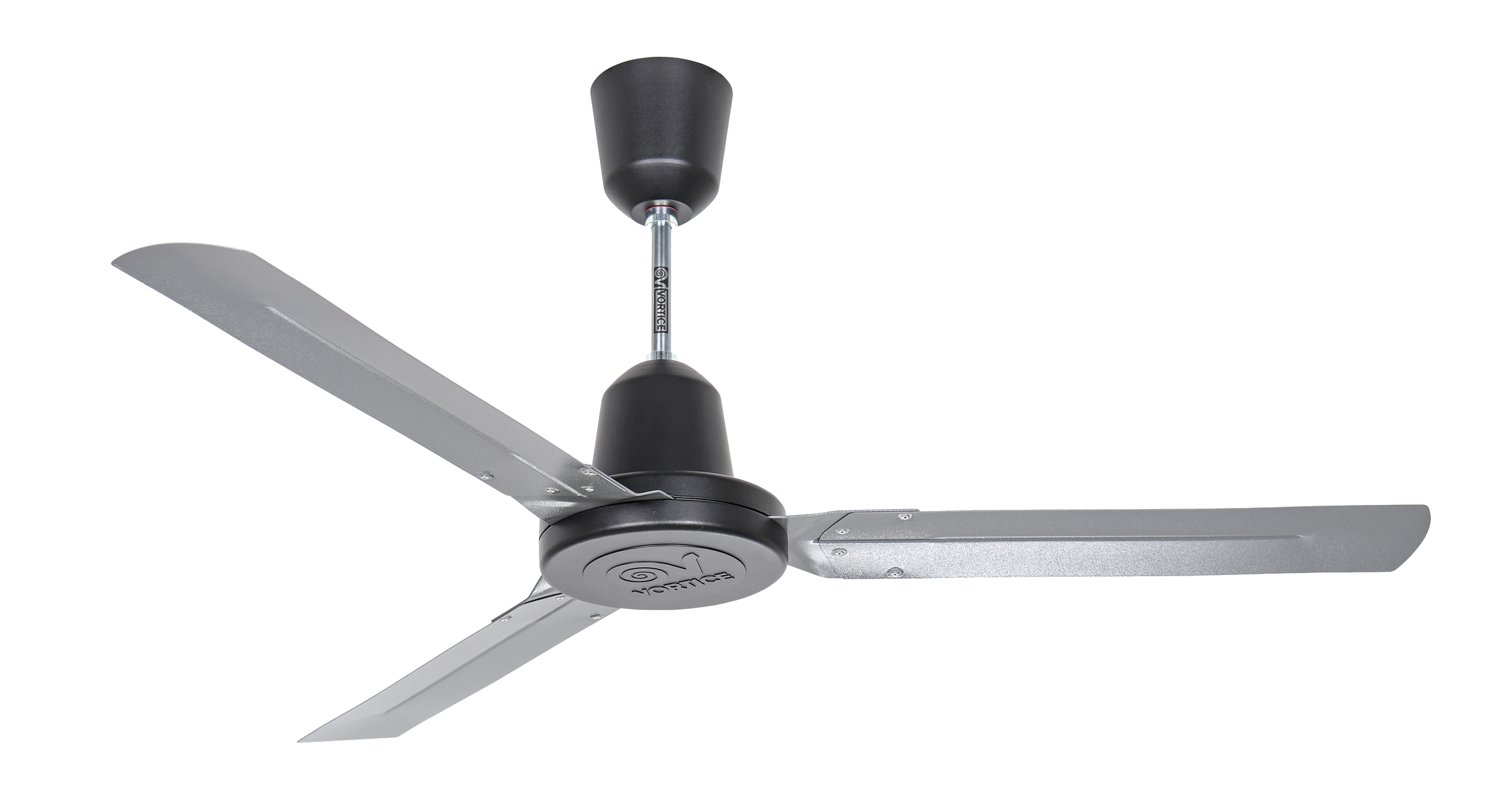

Ceiling fan Nordik HD 140 Base

Warning: this symbol indicates that care must be taken to avoid injury to the user

• Do not use this product for functions other than those described in the instruction booklet.
• After having removed the product from its packing, ensure that it is complete and undamaged: if in doubt contact Vortice Service Centre.
• Do not leave packaging within the reach of children or differently able persons.
• Certain fundamental rules must be observed when using any electrical appliance:
• Never touch appliances with wet or damp hands
• Never touch appliances while barefoot
• Do not use the appliance where flammable vapours are present (spirit, insecticides, petrol, etc.).
• To conform with applicable standards, the bottom edges of the fan blades must be at a height of at least 2.7 metres or more from the floor (fig.1) in non-residential premises.
• Unauthorised changes to the factory set fitting shall invalidate the guarantee and entitle the manufacturer to disclaim any whatsoever liability.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Caution: this symbol indicates that care must be taken to avoid damaging the appliance

• Do not make modifications of any kind to this appliance.
• Regularly inspect the appliance for visible defects. If any faults are found, do not operate the appliance but contact Vortice Service Centre.
• The electrical mains to which the unit is connected must conform to current standard.
• The appliance must be properly connected to an electrical system in compliance with the applicable regulations and equipped with an efficient earthing system. If in doubt, have a qualified electrician perform a thorough check.
• The electrical power source to which the product is to be connected must be able to provide the maximum amount of electrical power required by the product.If it cannot do this, contact an electrician for appropriate remedial action.
• Should the appliance be dropped or suffer a heavy blow, have it checked immediately by Vortice.
• If the appliance does not function correctly or develops a fault, turn it off and contact Vortice immediately. Ensure that only genuine original Vortice spares are used for any repairs.
• Do not leave the appliance on unnecessarily: when the appliance is not in use, turn the switch to off.
• Use the unit at an ambient temperature not above 40°C (104°F)(power supply 240V 50Hz), 50°C (122°F)(power supply 230V 50Hz).
• Place the unit at a suitable distance from walls,objects, etc.
• Specifications for the power supply must correspond to the electrical data on data plate A (fig.2).
• The appliance must be installed by a professionally qualified electrician.
• A multi-pole switch must be used to install the appliance. The contact opening gap must be no less than 3 mm.
• Products equipped with single-phase wiring (M) motors ALWAYS require connection to 220-240V (or only 230V where required) single-phase lines. Any kind of modification shall be considered as product tampering and shall nullify the relative warranty.
• Fans must be installed in such a way that the blades or impellers are positioned more than 2.3 m over the floor level.

Cleaning Before cleaning the unit or carrying out maintenance operations turn the main switch off and remove the plug from the power supply.

Source: manufacturer's operating instructions (Vortice Nordik Heavy Duty Base 70).
