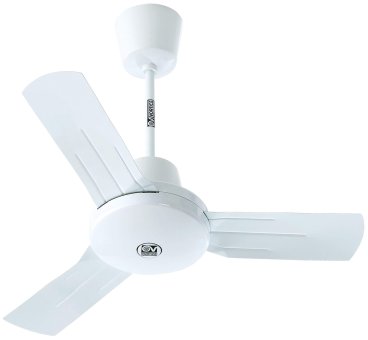

Nordik I Plus 092 in lightgrey
The NORDIK I PLUS series is characterized by straight lines combined with optimal air performance. Suitable for commercial use or as a design element in modern living rooms. Ideal for heat recovery in winter. With 4 different sizes, the NORDIK I Plus series can be optimally adapted to spatial conditions.
This ceiling fan can be easily hung on a ceiling hook and operated.
DesignCeiling fan in an elegant, Italian design
HousingThis is made of ABS plastic. The wings are made of galvanized sheet steel, color light grey
QualityBall-bearing, lifetime-lubricated and self-cooling die-cast aluminum motor, dynamically balanced, with thermal overload protection for super-quiet operation.
SecurityProtection class I, max. ambient temperature 45 °C.
PerformanceThe powerful motor ensures good air performance and distribution with optimized energy consumption
DiversityAvailable in 4 sizes. Ideal choice for every room height and size.
ControlWithout built-in pull switch due to design reasons. Suitable remote controls and wall controllers as well as control transformers can be used.
Easy to installEasy and quick assembly.
VariableThe supplied ceiling rod can be shortened by sawing.
Eco-friendlyAfter the life cycle, all parts can be sorted and sorted for recycling.
Specifications
- Number of wings: 3
- Motor power: 24 - 70 watts
- Voltage: 230 Volt~50Hz
- Size: Ø cm
- Number of stages: 1 (3-5 via optional wall controller)
- Included KlimaLex.de Service
- Speed max. 231 U/min
Wall transformers and controllers, remote controls, control relays, suspension systems for suspended ceilings, SLOW MOTION, longer or shorter ceiling rods are available as accessories
| Picture | Article | Housing color | Wing color | Art.-No. | Price |
|---|---|---|---|---|---|
 |
Ceiling fan Nordik International Plus 90 LG | lightgrey | lightgrey | 61701 | 219,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
 |
Ceiling fan Nordik International Plus 120 LG | lightgrey | lightgrey | 61711 | 229,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
 |
Ceiling fan Nordik International Plus 140 LG | lightgrey | lightgrey | 61721 | 239,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
 |
Ceiling fan Nordik International Plus 160 LG | lightgrey | lightgrey | 61731 | 239,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
- Casing
- lightgrey
- Power
- 70 watt
- Manufacturer
- Vortice
- Product type
- ceiling fan
- Control
- optional
- Voltage
- 230 volt
- Style
- simple
- Blade decor
- lightgrey
- Blade material
- metal
- No. of blades
- 3
- Lighting
- optional
- ECO
- normal
- Diameter in cm
- 092
- Commercial use
- yes
- Outdoor use
- indoor
- Sloped ceilings
- suited
- Ceiling distance
- 495 mm / 305 mm
- Forward-/Reverse mode
- reverse direction possible
- 0-10 V interface
- w/o
