ECO PLANO WOOD WE-WE 0 - 10 V

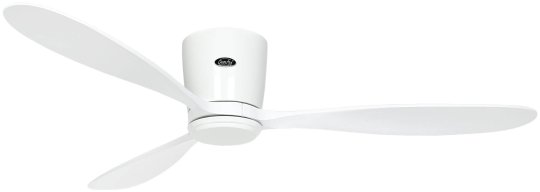

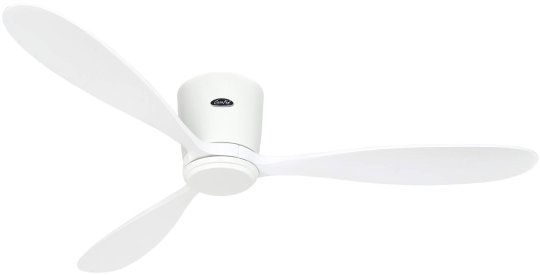

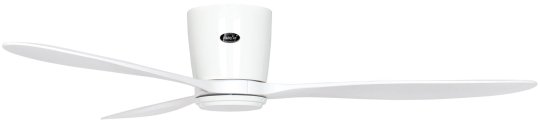

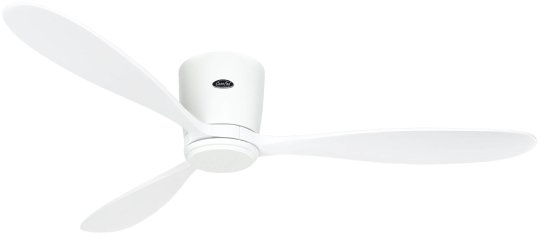

Ceiling fan CasaFan Eco Plano Wood 0 - 10 V white, white

Information at a glance:

✓ energy saving ceiling fan	✓ 6 levels via remote control
✓ balanced motor and wing	✓ forward/reverse
✓ 3 wings	✓ slow motion stage
✓ handcrafted solid wood wings	✓ sleep timer
✓ extra low profile	✓ only on straight ceilings

---

Saving energy helps the environment and your wallet. The Eco Plano Wood series saves energy in two ways: on the one hand by returning the warm air collected under the ceiling to the floor area in the winter and on the other hand thanks to the patented DC / EC direct current motor technology with sensationally low power consumption! The Eco Plano Wood has a 50% lower power consumption than conventional ceiling fans with the same air output. The integrated remote control with wall bracket controls 6 speed levels as well as forward, reverse and a slow motion level.

Advantages ceiling fan "Eco Plano Wood 0 - 10 Vwhite, white"

Design

Ceiling fan in a modern design. Whether in the living area, bedroom, office or hobby room - CasaFan ECO PLANO WOOF ceiling fan is equally stylish and practical. Motor housing galvanized and clear coated or double stove enameled depending on the version, 3 blades white included.

Lighting, ceiling rods, replacement sashes - accessories

NOT suitable for luminaire mounting.
The ECO PLANO WOOD ceiling fan from CasaFan is supplied and operated at KlimaLex with 3 blades.
The 6-level remote control incl. wall bracket controls forward and reverse, sleep timer and slow-motion level.

Energy saving ceiling fan

The powerful and very quiet motor of the CasaFan ECO PLANO WOOD ceiling fan ensures the best air performance with optimized energy consumption. In contrast to conventional ceiling fans, the power of the ECO PLANO WOOD at the same air output and full speed is instead of 60 watts is only 21.3 watts. The power consumption at lowest speed is just 1.0 watts.

Mounting on ceiling slopes

Installation only on straight ceilings possible. Very low profile: distance ceiling - blades is only 198 mm. Easy and quick mounting with only 2-4 screws (Ø min. 4.5 mm at a distance of 68 to 94 mm).

Safety protection class

Protection class I, max. ambient temperature 45 °C, interference suppressed. Patented DC/EC direct current motor technology.

Technical data CasaFan "Eco Plano Wood white, white"

Housing color:	white
Wing decoration:	white
Size Ø :	132 cm
Flow rate highest level	8.570 m³/h
Wing number:	3
Number of stages:	6 levels with remote control
Lighting :	no lamp possible
Control:	Remote control incl., Forward / reverse, slow motion
Power motor min.:	1.0 Watt
Power motor max.:	21.3 Watt
min.:	30 U/min
max.:	210 U/min
Type of motor	ECO motor
Voltage:	100-240 Volt ~50/60 Hz
Weight:	6.0 kg
Spacing ceiling - blades:	198 mm
Special features:	energy-saving, extra low profile, only on straight ceilings
Style:	modern

Remote Control

Remote control Motor 6 levels, forward and reverse run, plus lamp on/off/dimming and sleep timer. Wall mount included.

The ceiling fan "Eco Plano Wood white, white" is very quiet

Noise measurements were carried out at the VDE testing and certification institute in Offenbach.
The lower limit for measuring the laboratory is 32 dB(A) for the sound power LW
Since many ceiling fans on the market are advertised with one value or the other,
we give the measured noise values ​​both as sound power LW and as sound pressure LP-3m.

Performance data "Eco Plano Wood"
