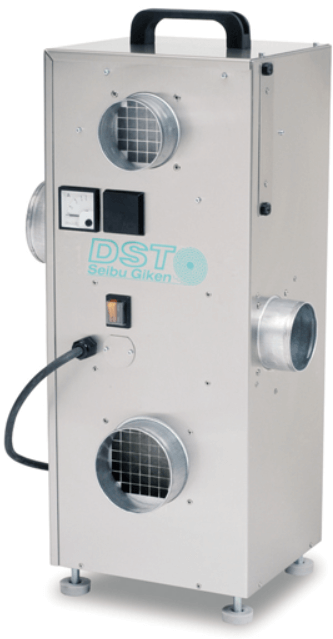

Adsorption dryer DST Consorb DC-10

Stationary adsorption dryer DC-10

The Adsorption Dryer DST Seibu Giken Consorb DC-10 is a device specifically designed for applications where efficient and reliable dehumidification is required. This model is part of the proven Consorb series from DST Seibu Giken and is characterized by its ability to maintain constant humidity even in demanding environments.

Functionality and Efficiency

The DC-10 operates on the principle of adsorption, where moist air is passed through a rotor coated with a special SSCR-U silica gel. The rotor effectively transfers the moisture to the heated regeneration area, where the water vapor is expelled. The rotor offers additional advantages—it is non-corrosive, easy to wash, and has a long lifespan.
This technology allows for dehumidification even at low temperatures and extremely high humidity, making the DC-10 particularly versatile.

Applications

The DST Seibu Giken Consorb DC-10 is frequently used in areas where precise humidity control is crucial. This includes warehouses storing sensitive goods, production facilities for various manufacturing processes in the chemical, pharmaceutical, food, and confectionery industries, museums, archives, as well as water treatment plants. Due to its robust and portable design and the ability to operate continuously, it is also ideal for industrial applications.

Technical Specifications of the Adsorption Dryer DST Consorb DC-10:

• Manufacturer: DST Seibu Giken
• Country of Manufacture: Sweden
• Operation: Adsorption Dryer
• Housing: Stainless steel V2A
• Color: blank
• Rotor: SSCR-U Silica Gel
• Condensate Drainage: Via exhaust hose
• Heating Element: PTC Heater
• Dehumidification Capacity at +20 °C / 60% RH: 14.4 liters/day
• Operating Range: from -20 °C to +35 °C
• Dry air volume flow: 190 m³/hour
• Moist air volume flow: 60 m³/hour
• Supply Voltage/Power Connection: 230 Volts / 50 Hertz / 10 Amps
• Connection Type: Rubber-coated power cable with Schuko plug
• Air Filter: Non-regenerable, fleece, EN ISO 16890: ISO coarse 50%
• Heater Current: 4.3 Amps
• Power Consumption (max): 1,300 Watts
• Current Draw (max): 5.7 Amps
• Width: 314 mm
• Height: 660 mm
• Depth: 245 mm
• Carrying handle on top
• Filter mat made of standard G3 filter fleece, washable
• Heating element: PTC heater

Optional Accessories - Not included in the purchase price:
Hygrostat Regin HR1-DH
Duct Hygrostat Regin HMH
Hygrostat DST Seibu Giken EH4
Hygro-Thermostat DST Seibu Giken EH3 T2
Cable Plug Amphenol ecomate
