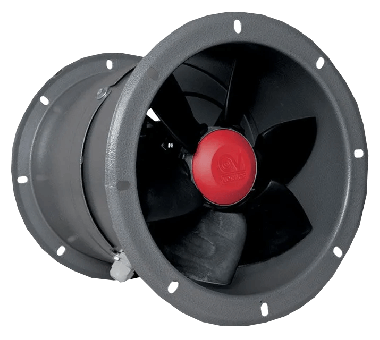

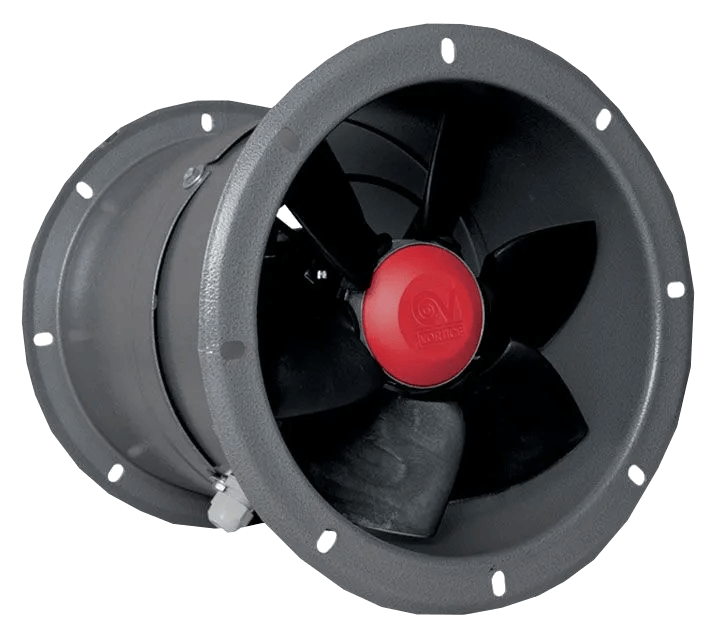

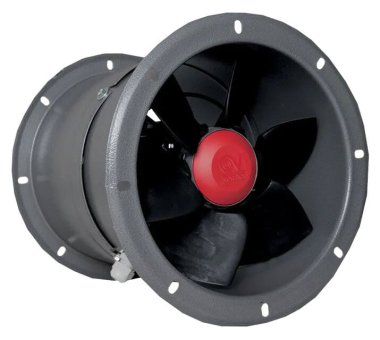

Duct Fan MPC-E 25/4 M – Quiet, Powerful, and Suitable for Continuous Operation
A duct fan ensures fresh air wherever
reliable ventilation is required.
The MPC-E 25/4 M duct fan is part of the MPC-E series and impresses with
high airflow performance and quiet operation.
It is ideal for continuous operation and particularly well-suited for
commercial use.
Whether in offices, workshops, or industrial halls –
this duct fan moves a large volume of air without creating disturbing noise.
| Model | MPC-E 25/4 M |
| Special Feature | alternating current version (M) |
| Number of Poles | 4 |
| Max. Speed | 1,460 RPM |
| Color | Hammered grey lacquered |
| Max. Pressure | 82 Pa |
| Power | 70 watts |
| Material | steel galvanized |
| Airflow | 1180 m³/h |
| Nominal Size | 250 mm |
| Sound Pressure Lp-3m | 25.3 dB(A) |
| Protection Rating | IPX4 |
| Protection Class | I |
| Voltage | 230 volt ~ 50 Hz |
| Current Consumption | 0.32 A |
| Max. Temperature | -25 °C to 70 °C |
| Motor Features | Induction motor |
| Motor | IP55, insulation class F, speed-controllable, single-phase, ball-bearing |
| Fan Type | Duct fan, Axial fan |
Click here for more
More about the MPC-E 25/4 M
Especially in environments where a large volume of air needs to be moved, this duct fan shows its strengths: offices, workshops, production halls, warehouses, or catering establishments benefit from its performance. Even in demanding applications, it consistently delivers fresh air – without producing disturbing noise.
Advantages of the Duct Fan 25/4 M
High Airflow
This duct fan moves large volumes of air in a short time. This makes it ideal for quick and effective ventilation in rooms and duct systems. Whether for exhaust, supply, or recirculation air – it handles every task reliably.
Quiet Operation
Despite its strong performance, the duct fan operates particularly quietly. This makes it suitable for noise-sensitive areas such as conference rooms, clinics, or living spaces, without disturbing daily activities.
Suitable for Continuous Operation
The motor is robust, ball-bearing, and optimally protected – perfect for 24/7 operation. Even at higher ambient temperatures, this duct fan runs reliably and with low maintenance.
Easy Installation
Thanks to its compact design and sturdy construction, the duct fan can be quickly integrated into existing ventilation systems. This saves time and effort during installation.
Versatile Applications
Whether in industry, craft businesses, catering establishments, or the private sector – this duct fan is the right choice when a powerful and quiet ventilation solution is needed.
- Model
- 25/4 M
- Sound pressure
- 25.3 dB(A)
- Material
- steel galvanized
- Temperature max.
- 70 °C
- Power
- 70 watts
- Air pressure max in Pa
- 82 Pa
- Air output
- 1180 m³/h
- Fan
- Duct fan, Axial fan
- Amperage
- 0.32 A
- Voltage
- 230 volt ~ 50 Hz
- Color
- grey
- Specials
- alternating current version (M)
- Revolutions
- 1,460 RPM
- pole number
- 4
- Protection class
- I
- Type of protection
- IPX4

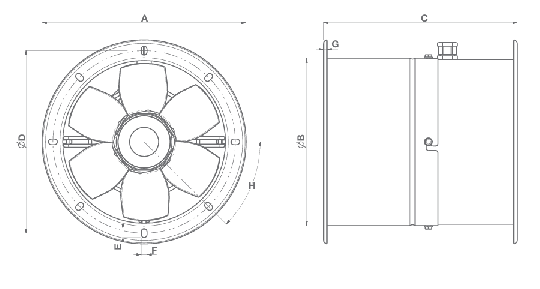

- Dimensions
- 250 mm
