Ceiling fan Eco Concept 132 WE-WE/LG 0-10 V

Energy-saving ceiling fan with 0-10 V interface

You save 49,01 € (ca. 10%) compared to the MSRP of 489,00 €.
439,99 € price incl. 70,25 € (19%) VAT, excl. Shipping costs

Germany-wide shipping from: 6.90 €
International Shipping see shipping.

Shipping Weight: 8 kg

Log in using your Amazon credentials and conveniently complete your payment with the address and payment details saved in your Amazon account.

Available again from 28.09.2026

Product number: Casafan.9213621
EAN: 4024397382088

Manufacturer: WEEE-Reg.-Nr. DE29217367, CasaFan GmbH, Senefelderstr. 8, 63594 Hasselroth, Deutschland, info@ventilator.de

Datasheet:

Description
Specification

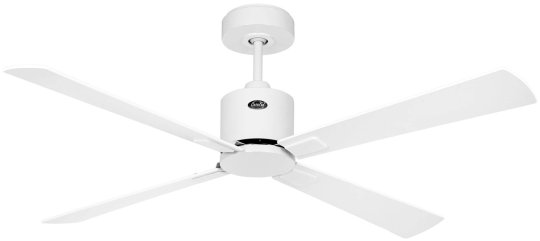

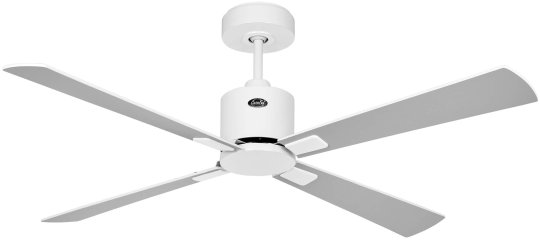

CasaFan ceiling fan Eco Concept 132 cm, white, white / lightgrey 0 - 10 volt

Information at a glance:
✓ Energy-saving ceiling fan	✓ 6 levels via remote control
✓ balanced motor & wing	✓ Forward & Reverse

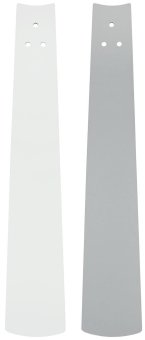

✓ 4 interchangeable reversible blades	✓ Slow motion level

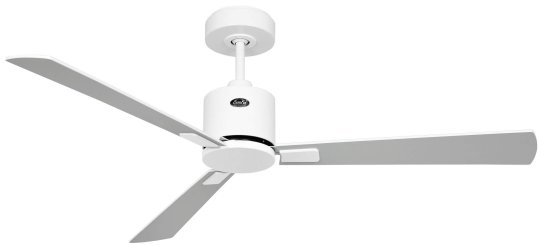

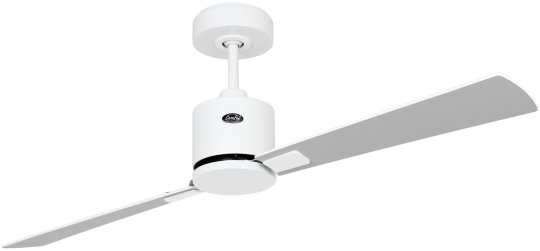

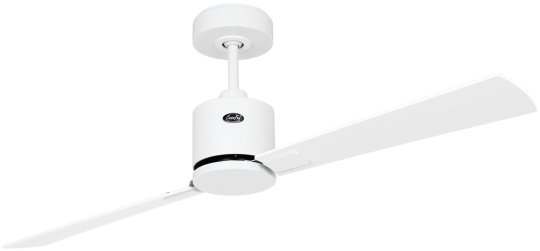

✓ can be operated with 2, 3 or 4 blades	✓ Sleep timer
✓ Lighting optionally possible	✓ 0 - 10 volt interface

Assembly: 2 screws Ø min. 4.5 mm at a distance of 70 - 110 mm

The scope of delivery also includes: remote control and wall bracket, 2 ceiling rods 150 mm and 80 mm

Technical data
Housing color	white
Wing color	white / lightgrey
Size/Diameter	132 cm
Number of wings	4
Wing extras	Reversible wing
Number of steps	6 steps with remote control
Control via radio remote control	includes remote control, 6 levels, forward/reverse - summer mode/winter mode, sleep timer
For rooms up to	25 m²
Voltage	110-240 Volt/~50-60Hz
Minimum motor power	1 watt
maximum motor power	26 watts
maximum speed	30 - 190 revolutions per minute
Special features	includes 2 ceiling rods (150 and 80 mm), energy saving, longer ceiling rod possible, suitable for slopes up to 23°

CasaFan Eco Concept 132, energy saving ceiling fan, diameter: 132 cm, 4 reversible sashes included (2, 3 or 4 sashes can be mounted), 100-240 Volt/~50-60 Hz, DC/EC motor 1 - 23 Watt, radio remote control included (motor 6 steps, light dimming, forward/reverse - summer mode/winter mode, sleep timer) and wall mount, slow motion stage, Speed maximum 30-190 revolutions per minute, including 2 ceiling rods (150 and 80 mm), Distance ceiling - sash 360 mm (290 mm with short ceiling rod, 270 with shortened ceiling rod), Mounting on slopes up to 23°, balanced motor and sash, for room sizes up to 25 m², 0-10 volt optional, accessories like lights and longer ceiling rods available

Performance data "Eco Concept 132 cm"

Fan sound power		Fan sound pressure		Speed
LW level 1	below 32 dB(A)	LP - 3 m level 1	below 15 dB(A)	level 1	30 (min-1)
LW level 2	below 32 dB(A)	LP - 3 m level 2	below 15 dB(A)	level 2	65 (min-1)
LW level 3	32.4 dB(A)	LP - 3 m level 3	below 15 dB(A)	level 3	90 (min-1)
LW level 4	32 8.9B(A)	LP - 3 m level 4	18.4 dB(A)	level 4	123 (min-1)
LW level 5	45.9 dB(A)	LP - 3 m level 5	25.4 dB(A)	level 5	155 (min-1)
LW level 6	51.8 dB(A)	LP - 3 m level 6	31.3 dB(A)	level 6	185 (min-1)

Ceiling fan Eco Concept -- comparison
Article	Housing color	Wing color	Diameter	Wifi	0-10 V	Art. No.	Price
Ceiling fan Eco Concept 132 WiFi BN-NB/KI	chrome brushed	walnut / cherry	132	with	w/o	921361W	399,99 € Preis inkl. % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 132 WiFi LG-WE/LG	lightgrey	white / lightgrey	132	with	w/o	921360W	399,99 € Preis inkl. % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 132 WiFi WE-WE/LG	white	white / lightgrey	132	with	w/o	921362W	399,99 € Preis inkl. % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 132 BN-NB/KI 0-10 V	chrome brushed	walnut / cherry	132	w/o	with	9213611	439,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 132 WE-WE/LG 0-10 V	white	white / lightgrey	132	w/o	with	9213621	439,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 152 WiFI BN-NB/KI	chrome brushed	walnut / cherry	152	with	w/o	921561W	409,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 152 WiFi LG-WE/LG	lightgrey	white / lightgrey	152	with	w/o	921560W	409,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 152 WiFi WE-WE/LG	white	white / lightgrey	152	with	w/o	921562W	409,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 152 BN-NB/KI 0-10 V	chrome brushed	walnut / cherry	152	w/o	with	9215611	449,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 152 LG-WE/LG 0-10 V	lightgrey	white / lightgrey	152	w/o	with	9215601	449,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 152 WE-WE/LG 0-10 V	white	white / lightgrey	152	w/o	with	9215621	449,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
