Ceiling fan Eco Concept 152 BN-NB/KI 0-10 V

Energy-saving ceiling fan with 0-10 V interface

You save 49,01 € (ca. 10%) compared to the MSRP of 499,00 €.
449,99 € price incl. 71,85 € (19%) VAT, excl. Shipping costs

Block price

Germany-wide shipping from: 6.90 €
International Shipping see shipping.

Shipping Weight: 7 kg

Log in using your Amazon credentials and conveniently complete your payment with the address and payment details saved in your Amazon account.

Only 1 product(s) in stock! Delivery time 1-5 days.

* is valid for deliveries within Germany, for other countries please see Delivery Time

Product number: Casafan.9215611
EAN: 4024397382095

Manufacturer: WEEE-Reg.-Nr. DE29217367, CasaFan GmbH, Senefelderstr. 8, 63594 Hasselroth, Deutschland, info@ventilator.de

Datasheet:

Description
Specification

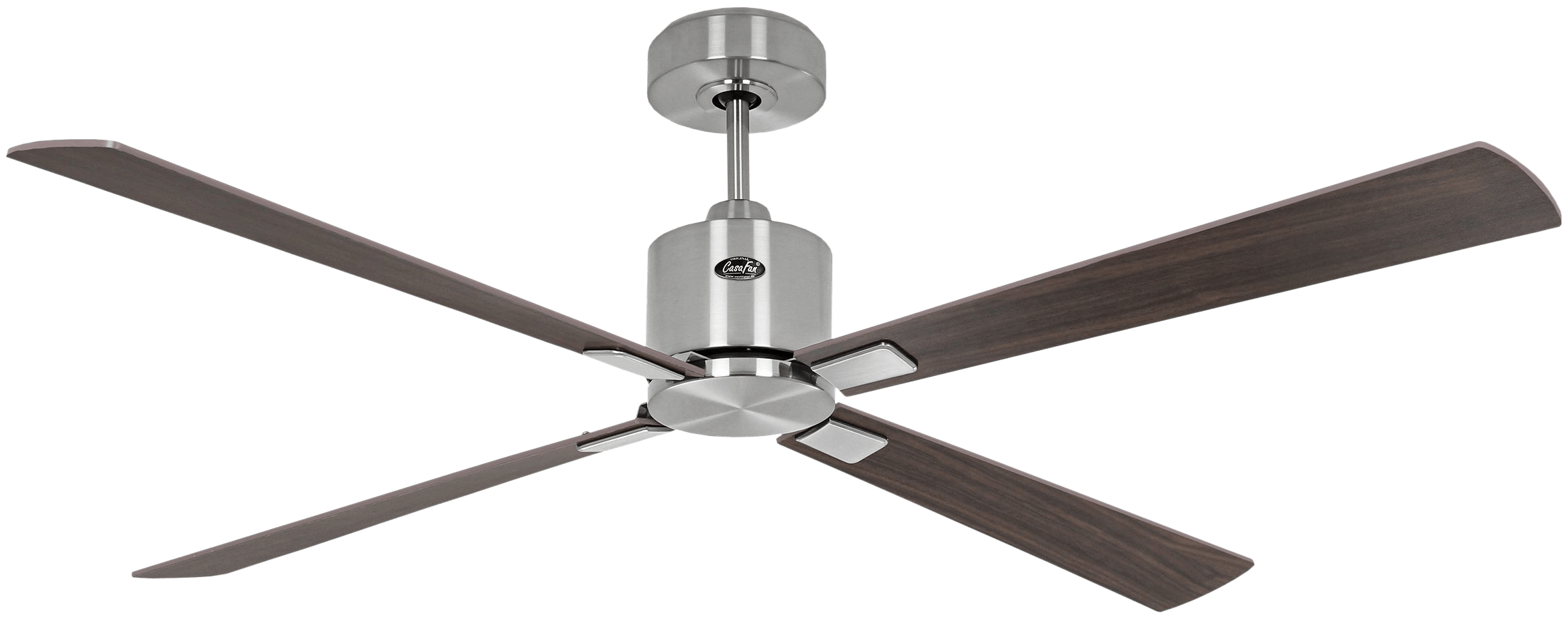

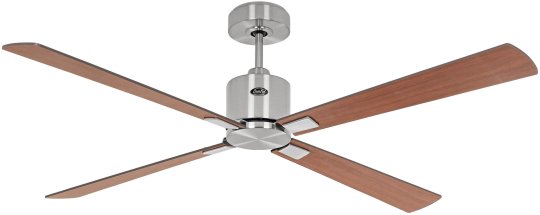

CasaFan ceiling fan Eco Concept 152 cm, chrome brushed, walnut / cherry 0 - 10 volt

Information at a glance:
✓ Energy-saving ceiling fan	✓ 6 levels via remote control
✓ balanced motor & wing	✓ Forward & Reverse
✓ 4 interchangeable reversible blades	✓ Slow motion level

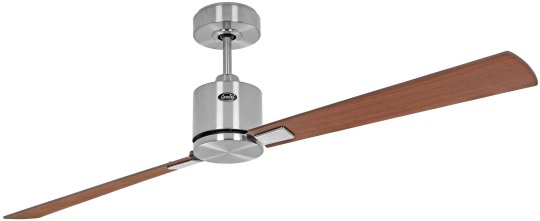

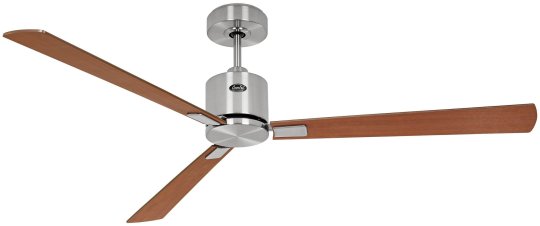

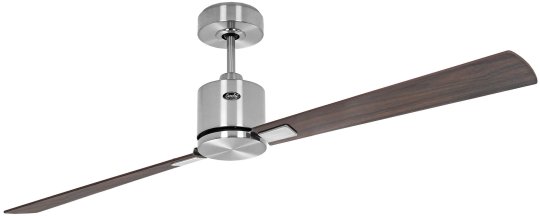

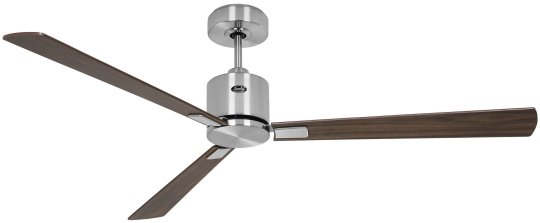

✓ can be operated with 2, 3 or 4 blades	✓ Sleep timer
✓ Lighting optionally possible	✓ 0 - 10 volt interface

Assembly: 2 screws Ø min. 4.5 mm at a distance of 70 - 110 mm

The scope of delivery also includes: remote control and wall bracket, 2 ceiling rods 150 mm and 80 mm

Technical data
Housing color	chrome brushed
Wing color	walnut / cherry
Size/diameter	152 cm
Number of wings	4
Wing extras	Reversible wing
Number of steps	6 levels with remote control
Control via wireless remote control	Includes remote control, 6 steps, forward/reverse - summer mode/winter mode, sleep timer
For rooms up to	25 m²
Voltage	110-240 Volt/~50-60Hz
minimum motor power	1 watt
maximum motor power	27 watts
maximum speed	30 - 146 revolutions per minute
Special features	includes 2 ceiling rods (150 and 80 mm), energy saving, longer ceiling rod possible, suitable for slopes up to 23°

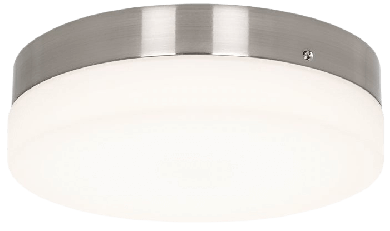

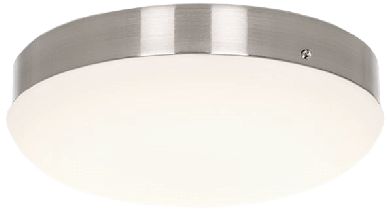

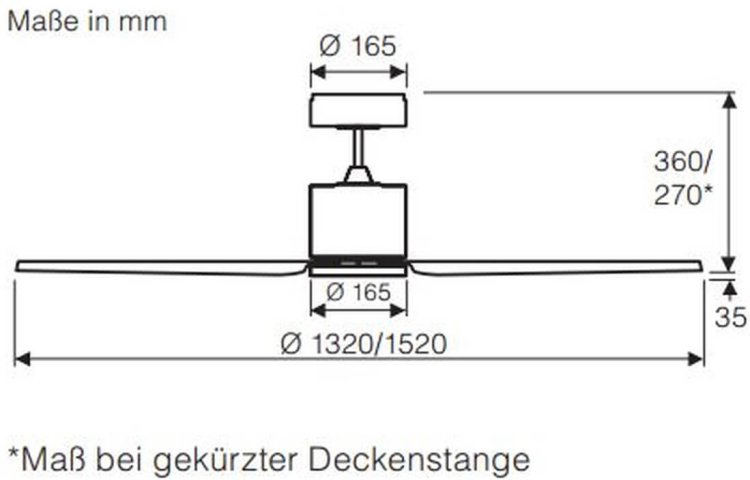

CasaFan Eco Concept 152, energy saving ceiling fan, diameter: 152 cm, 4 reversible blades included (optional 2,3,4 mountable), 100-240 volts 50-60 Hz, DC/EC motor 1-27 watts, including radio remote control (motor 6 levels, light dimming, forward/reverse - summer mode/winter mode, sleep timer) and wall bracket, Slow motion stage, speed maximum 30-146 revolutions per minute, including 2 ceiling rods (150 and 80 mm), distance ceiling - sash 360 mm (290 mm with short ceiling rod, 270 mm with shortened ceiling rod), Mounting on slopes up to 23 °, balanced motor and sash, for room sizes up to 35 m², accessories such as lights and longer ceiling rods are available from us.
If you have any questions about the ceiling fan or its accessories, please feel free to contact our Klimalex Team

Performance data "Eco Concept 152 cm"

Fan sound power		Fan sound pressure		Speed
LW level 1	below 32 dB(A)	LP - 3 m level 1	below 15 dB(A)	level 1	30 (min-1)
LW level 2	below 32 dB(A)	LP - 3 m level 2	below 15 dB(A)	level 2	53 (min-1)
LW level 3	below 32 dB(A)	LP - 3 m level 3	below 15 dB(A)	level 3	74 (min-1)
LW level 4	35.7 dB(A)	LP - 3 m level 4	15,2 dB(A)	level 4	97 (min-1)
LW level 5	41.8 dB(A)	LP - 3 m level 5	21,3 dB(A)	level 5	129 (min-1)
LW level 6	47.1 dB(A)	LP - 3 m level 6	26.6 dB(A)	level 6	146 (min-1)

Ceiling fan Eco Concept -- comparison
Article	Housing color	Wing color	Diameter	Wifi	0-10 V	Art. No.	Price

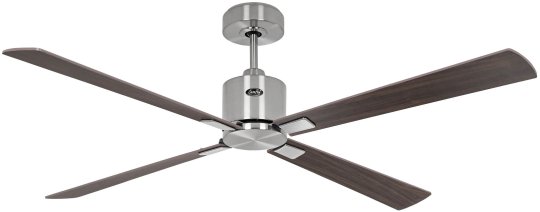

Ceiling fan Eco Concept 132 WiFi BN-NB/KI	chrome brushed	walnut / cherry	132	with	w/o	921361W	399,99 € Preis inkl. % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 132 WiFi LG-WE/LG	lightgrey	white / lightgrey	132	with	w/o	921360W	399,99 € Preis inkl. % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 132 WiFi WE-WE/LG	white	white / lightgrey	132	with	w/o	921362W	399,99 € Preis inkl. % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 132 BN-NB/KI 0-10 V	chrome brushed	walnut / cherry	132	w/o	with	9213611	439,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 132 WE-WE/LG 0-10 V	white	white / lightgrey	132	w/o	with	9213621	439,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 152 WiFI BN-NB/KI	chrome brushed	walnut / cherry	152	with	w/o	921561W	409,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 152 WiFi LG-WE/LG	lightgrey	white / lightgrey	152	with	w/o	921560W	409,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 152 WiFi WE-WE/LG	white	white / lightgrey	152	with	w/o	921562W	409,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 152 BN-NB/KI 0-10 V	chrome brushed	walnut / cherry	152	w/o	with	9215611	449,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 152 LG-WE/LG 0-10 V	lightgrey	white / lightgrey	152	w/o	with	9215601	449,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
Ceiling fan Eco Concept 152 WE-WE/LG 0-10 V	white	white / lightgrey	152	w/o	with	9215621	449,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten
