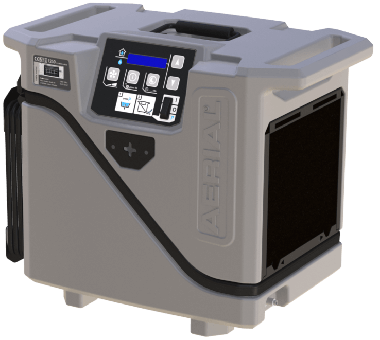

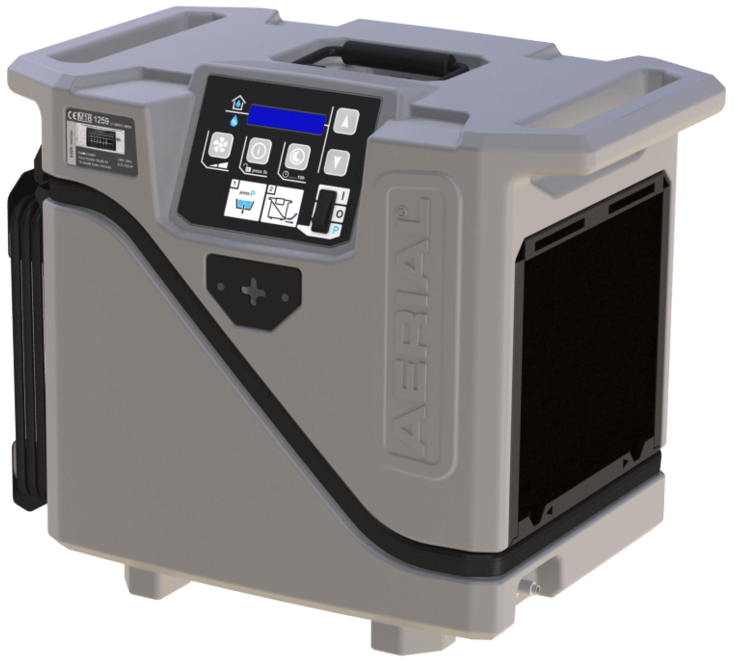

Aerial AD 20 condensation dehumidifier
Light, compact and mobile. Built-in condensate pump for autonomous operation and a dehumidification capacity of 18 liters per day. Convenient controls, indicators and a stackable aircube design. The AD 20 dehumidifier from Aerial offers all of this.
The Aerial dehumidifier offers many possible uses. Be it for water damage or building drying, dehumidification in waterworks, for air dehumidification in industry and commerce or for drying in living rooms and basements. Thecondensation air dehumidifier provides help. It is suitable for heated rooms up to 200m³ and unheated rooms up to 150m³.
| device names | Aerial AD 20 dehumidifier |
| manufacturer | Aerial |
| Country of manufacture | Germany |
| How it works | Condensation dryer with energy recovery |
| Weight | approx. 17kg |
| Material | Plastic (PE) |
| color | light grey |
| Fan | axial 2-stage |
| Air Inlet | front |
| Air outlet | back |
| Air filter | washable |
| Compressor | Rotary Compressor |
| Capacitor | Copper tube with aluminum fins |
| vaporizer | Copper tube with aluminum fins |
| Defrost | automatic, time-controlled (hot gas defrost) |
| Condensate pan | Plastic |

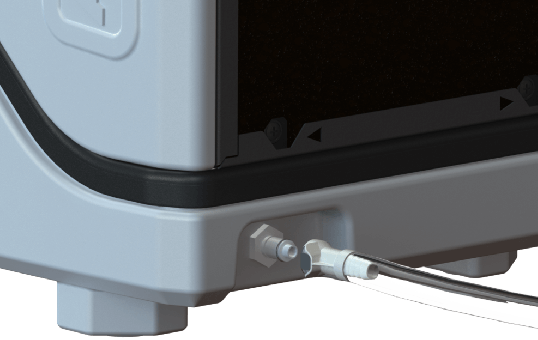

| Condensate drain | integrated condensate pump |
| Hygrostat | electronic, built-in |

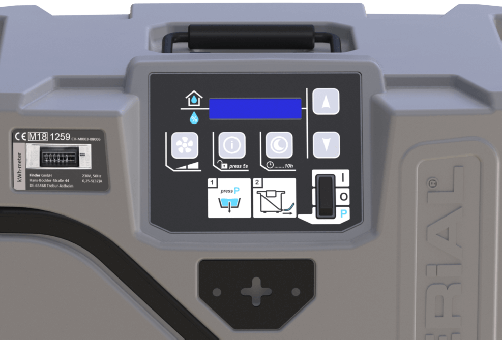

| Service | membrane touchpad |
| Control | Fully automatic hygrostat control, operating and control panel, operating hours counter, electricity meter (MID), 2-stage fan control, day/night operation, manual pumping out |
| Installation | Side handles on top, side eyelets for lashing straps |
| Type of connection | 4.5 m power cord with Schuko plug |
| Dehumidification capacity | at + 30 °C / 80% RH: 18 liters/day at + 20 °C / 60% RH: 9 liters/day at + 15 °C / 70% RH: 5 liters/ day |
| Drain hose | Inside diameter 9mm, outside diameter 12mm, length 3m) |
| Head | 4m |
| Workspace | from + 1 °C to + 34 °C / from 35 % RH to 100 % RH |
| Refrigerant | R 1234 YF |
| Refrigerant amount | 0.14kg |
| CFC notice | The device contains fluorinated greenhouse gases in a hermetically sealed circuit |
| Air volume | 270 m³/h |
| Sound pressure level | at a distance of 2 m: fan speed 2: 50 dB(A) |
| Supply voltage | 230 volts / 50 Hz / 10 amps |
| maximum power consumption | 300 watts |
| Power consumption | at + 30 °C / 80 % RH: 300 W at + 20 °C / 60 % RH: 260 W at + 15 °C / 70 % RH: 215 W |
| maximum power consumption | 1.3 amps |
| degree of protection | IP X1 |
| Dimensions | Width: 320mm Height: 420mm Depth: 500mm |
| KlimaLex construction dryer models from Aerial | |||||||
|---|---|---|---|---|---|---|---|
| Aerial AD 20 | Aerial AD 40 | Aerial AD 520 | Aerial AD 540 | Aerial AD 560 | Aerial AD 580 | Aerial AD 740 | |
| Service | Membranekeypad | Membranekeypad | Membranekeypad | Membranekeypad | Membranekeypad | Membranekeypad | Membranekeypad |
| Refrigerant | R 1234 YF | R 454 C | R 1234 YF | R 454 C | R 454 C | R 454 C | R 454 C |
|
Dehumidification performance at 30°C / 80% rF at 20°C / 60% rF at 15°C / 70% rF |
18 Liters/Day 9 Liters/Day 5 Liters/Day |
34 Liters/Day 16 Liters/Day 13 Liters/Day |
18 Liters/Day 8 Liters/Day 8 Liters/Day |
34 Liters/Day 17 Liters/Day 19 Liters/Day |
52 Liters/Day 22 Liters/Day 18 Liters/Day |
76,5 Liters/Day 35 Liters/Day 27,5 Liters/Day |
34 Liters/Day 18 Liters/Day 14 Liters/Day |
| Collection container | n/a | 6,8 Liters | 7 Liters | 7 Liters | 14 Liters | 14 Liters | 6,8 Liters |
| Air volume | 270 m³/h | 400 m³/h | 340 m³/h | 620 m³/h | 700 m³/h | 750 m³/h | 550 m³/h |
|
Power consumption at 30°C / 80% rF at 20°C / 60% rF at 15°C / 70% rF |
300 Watts 260 Watts 215 Watts |
615 Watts 470 Watts 410 Watts |
315 Watts 230 Watts 215 Watts |
680 Watts 500 Watts 415 Watts |
800 Watts 580 Watts 515 Watts |
1130 Watts 790 Watts 710 Watts |
625 Watts 480 Watts 415 Watts |
| Maximum power consumption | 300 Watts | 650 Watts | 350 Watts | 680 Watts | 850 Watts | 1250 Watts | 650 Watts |
| Sound pressure | 50 db(A) | 53 db(A) | 46 db(A) | 51 db(A) | 53 db(A) | 65 db(A) | 51 db(A) |
|
Dimensions of the dehumidifier Width High Depth |
320 mm 420 mm 500 mm |
390 mm 580 mm 450 mm |
320 mm 524 mm 360 mm |
329 mm 578 mm 380 mm |
400 mm 720 mm 450 mm |
450 mm 790 mm 450 mm |
390 mm 690 mm 470 mm |
| Working range temperatur | 1-34°C | 1-34°C | 1-34°C | 1-34°C | 1-34°C | 1-34°C | 1-34°C |
| Curb weight | 17 kg | 25 kg | 17 kg | 24 kg | 36 kg | 40 kg | 32 kg |
- Voltage
- 230 volt
- Air output
- 270 m³/h
- Working range
- 1 to 34°C
- Product type
- Dehumidifier
- WiFi
- no
- Casing
- Plastic
- IP protection class
- IP X1
- Display
- LED
- Color
- Grey
- Air outlet
- At the back
- Sound pressure
- 50 dB(A)
- Control
- Membrane keypad
- Power
- 300 watts
- Depth
- 50 cm
- Fan
- axial
- Refrigerant
- R 1234 YF
- Room volume
- n/a
- Heating power
- n/a
- Height
- 42 cm
- Operating time counter
- Built-in
- Air inlet
- At the front
- Weight
- 17 Kg
- Width
- 32 cm
- Functionality
- Condensation dryer
- Max. Dehumidification capacity
- 18 liters/day
- Hygrostat
- Built-in, electronically
- Manufacturer
- Aerial
- Water tank
- n/a
- Condensate pump
- no
