Efficient Use of the ER ECO 45 M Fan
The ER ECO 45 M axial duct fan from CasaFan is the optimal solution for anyone seeking a powerful and energy-saving fan. With a diameter of 450 mm, this fan is excellent for ventilation in commercial areas. It impresses with its compact design and is ideal for use in duct or channel systems with low to medium resistance.
One outstanding feature of the ER ECO 45 M axial duct fan is the brushless EC motor, which not only enhances energy efficiency but also minimizes noise levels. The fan offers a maximum air output of 6500 m³/h and a maximum speed of 1300 RPM, making it suitable for large spaces or demanding applications.
Compared to other variants, such as the ER ECO 25 M axial duct fan with a 250 mm nominal diameter, the ER ECO 45 M provides significantly higher air output, making it more suitable for larger applications. The different nominal diameters, such as 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, and 600 mm, allow for a customized solution for various requirements.
In summary, the ER ECO 45 M axial duct fan offers the following advantages:
- High Air Output: Ideal for large rooms and commercial applications.
- Energy-Saving: Thanks to the brushless EC motor.
- Compact Design: Easy integration into existing systems.
- Low Noise Levels: For a pleasant operating experience.
The following points highlight the similarities and differences among the various variants:
- Nominal Diameter: The ER ECO 45 M has a nominal diameter of 450 mm, while other variants like the ER ECO 25 M have 250 mm.
- Air Output: With 6500 m³/h, the ER ECO 45 M is more powerful than smaller models.
- Energy Consumption: The fan has a maximum power of 350 watts, making it efficient.
| Device names | ER ECO 45 M |
| Manufacturer | CasaFan |
| Material | Steel galvanized |
| Color | Black, two-layer anti-corrosion paint |
| Special feature | energy saving |
| Weight | 10 kg |

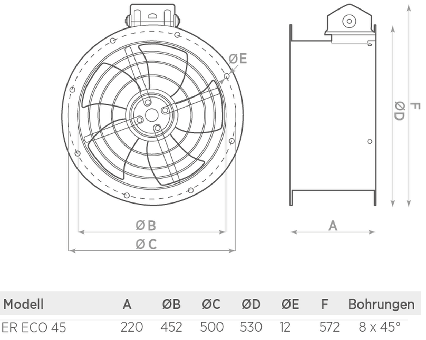

| Nominal size | 450 mm |
| Supply voltage | 230 volt ~ 50 Hz |
| Degree of protection | IP54 |
| Rated current | 2.2 amps |
| Protection class | I |
| Maximum power consumption | 350 watts |
| Maximum RPM | 1300 U/min |
| Maximum Air Flow | 6500 m³/h |

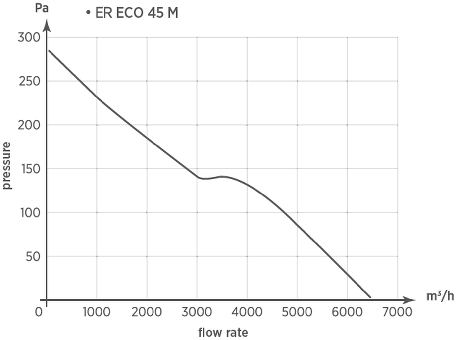

| Total pressure Pmax | 280 PA |
| Sound pressure level Lp - 2m | 59 db(A) |
| Maximum temperature | +60 °C |
| Generators | single phase |
| Engine | 0-10 volts interface, single-phase, insulation class B, external rotor motor with ball bearings |
| Fan Type | Axial fan, duct fan |
| Picture | Artikcle | Nominal size | Max. Power Consumption | Max. RPM | Max. Air performance | Item No. | Price |
|---|---|---|---|---|---|---|---|
 |
ER ECO 25 M axial duct fan | 250 mm | 50 watts | 2400 U/min | 1600 m³/h | 973460 | 799,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 30 M axial duct fan | 300 mm | 70 watts | 1500 U/min | 2200 m³/h | 973462 | 849,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 35 M axial duct fan | 350 mm | 75 watts | 1250 U/min | 3000 m³/h | 973464 | 849,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 40 M axial duct fan | 400 mm | 140 watts | 1100 U/min | 4100 m³/h | 973466 | 1199,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ECO 45 M axial duct fan | 450 mm | 350 watts | 1300 U/min | 6500 m³/h | 973468 | 1449,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 50 M axial duct fan | 500 mm | 360 watts | 1100 U/min | 7350 m³/h | 973470 | 1649,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 60 M axial duct fan | 600 mm | 240 watts | 800 U/min | 9000 m³/h | 973472 | 1749,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
