Optimal Ventilation with the ER ECO 50 M

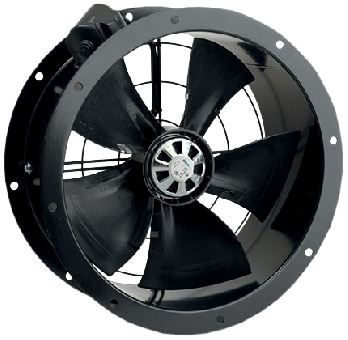

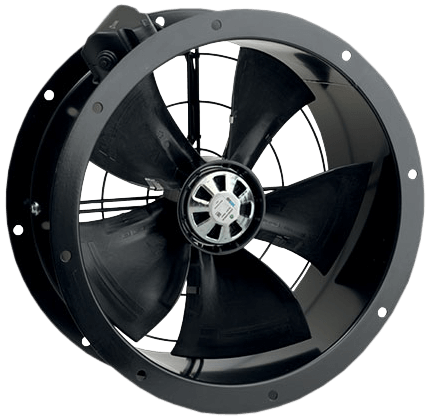

The ER ECO 50 M axial duct fan by CasaFan is an excellent choice for those seeking an efficient and energy-saving solution for ventilation in commercial areas. With a nominal diameter of 500 mm, this fan is ideal for applications requiring high air performance. It features a brushless EC motor that reduces operating costs and is environmentally friendly.
The fan is specifically designed for use in duct or channel systems with low to medium resistance. Thanks to its compact design and short housing, the axial duct fan can be easily installed and integrated. Additionally, its low noise level ensures a pleasant operation, making it the optimal choice for offices, workshops, and other commercial spaces.

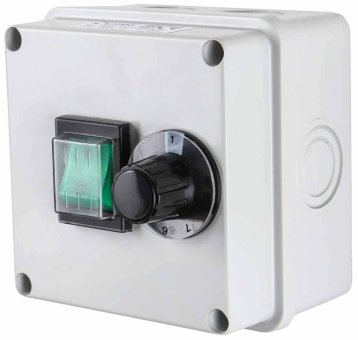

One outstanding feature of the ER ECO 50 M is the possibility of speed control. This allows for adjusting the air performance according to specific requirements. Furthermore, the fan is equipped with a robust steel housing protected by an epoxy-based corrosion protection coating. The high-quality materials ensure a long service life and reliable performance.
Compared to other variants such as the ER ECO 25 M axial duct fan, which has a nominal diameter of 250 mm, the ER ECO 50 M offers significantly higher air performance of up to 7350 m³/h. This increase in performance makes it the ideal choice for larger rooms or more demanding applications.
- Energy Efficiency: The brushless EC motor reduces energy consumption.
- Low Noise: Minimal noise development, ideal for offices and workplaces.
- Versatile Use: Optimal for duct and channel systems in commercial applications.
- Easy Installation: Compact design facilitates installation in tight spaces.
- High Air Performance: Achieves up to 7350 m³/h, perfect for large spaces.
In summary, the ER ECO 50 M axial duct fan is a powerful and energy-saving solution for your ventilation needs. With its high air performance and flexible speed control, it is the ideal choice for commercial applications that demand the highest standards of efficiency and comfort.
| Device names | ER ECO 50 M |
| Manufacturer | CasaFan |
| Material | Steel galvanized |
| Color | Black, two-layer anti-corrosion paint |
| Special feature | energy saving |
| Weight | 13 kg |
| Nominal size | 500 mm |
| Supply voltage | 230 volt ~ 50 Hz |
| Degree of protection | IP54 |
| Rated current | 2.2 amps |
| Protection class | I |
| Maximum power consumption | 360 watts |
| Maximum RPM | 1100 U/min |

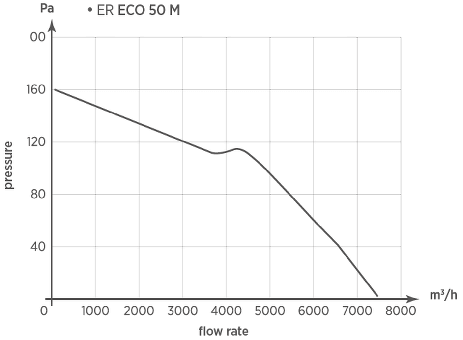

| Maximum Air Flow | 7350 m³/h |
| Total pressure Pmax | 160 PA |
| Sound pressure level Lp - 2m | 54 db(A) |
| Maximum temperature | +60 °C |
| Generators | single phase |
| Engine | 0-10 volts interface, single-phase, insulation class B, external rotor motor with ball bearings |
| Fan Type | Axial fan, duct fan |
| Picture | Artikcle | Nominal size | Max. Power Consumption | Max. RPM | Max. Air performance | Item No. | Price |
|---|---|---|---|---|---|---|---|
 |
ER ECO 25 M axial duct fan | 250 mm | 50 watts | 2400 U/min | 1600 m³/h | 973460 | 799,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 30 M axial duct fan | 300 mm | 70 watts | 1500 U/min | 2200 m³/h | 973462 | 849,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 35 M axial duct fan | 350 mm | 75 watts | 1250 U/min | 3000 m³/h | 973464 | 849,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 40 M axial duct fan | 400 mm | 140 watts | 1100 U/min | 4100 m³/h | 973466 | 1199,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ECO 45 M axial duct fan | 450 mm | 350 watts | 1300 U/min | 6500 m³/h | 973468 | 1449,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 50 M axial duct fan | 500 mm | 360 watts | 1100 U/min | 7350 m³/h | 973470 | 1649,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 60 M axial duct fan | 600 mm | 240 watts | 800 U/min | 9000 m³/h | 973472 | 1749,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
