Efficient Ventilation with the ER ECO 40 M
The ER ECO 40 M axial duct fan from CasaFan is the ideal solution for those seeking a powerful and energy-saving ventilation system in commercial areas. With a nominal diameter of 400 mm, this duct fan is particularly suitable for applications in duct or channel systems with medium to high resistance. Its brushless EC motor not only ensures efficient air circulation but also operates quietly, making it the perfect choice for sensitive environments.
Compared to other variants, such as the ER ECO 25 M axial duct fan with a nominal diameter of 250 mm, the ER ECO 40 M offers a significantly higher air output of up to 4100 m³/h. This makes it especially suitable for larger spaces or applications where a high air exchange rate is required. The fan is easy to install and features a 0-10 V interface that allows for flexible speed control.
The advantages of the ER ECO 40 M at a glance:
- Energy-saving: Thanks to the brushless EC motor, it optimizes energy consumption.
- High air output: With up to 4100 m³/h, it is ideal for large spaces.
- Low noise level: Perfect for environments where quietness is important.
- Easy installation: Compact design and flanges on both sides facilitate mounting.
The different variants of the ER ECO series mainly differ in nominal diameter, which directly affects air output. Here is an overview of the similarities and differences:
- Nominal diameter: The ER ECO 40 M has a nominal diameter of 400 mm, while other models like the ER ECO 25 M have a nominal diameter of 250 mm.
- Air output: The ER ECO 40 M reaches up to 4100 m³/h, making it suitable for larger applications.
- Power consumption: With 140 watts, the ER ECO 40 M is more powerful than smaller variants.
In summary, the ER ECO 40 M axial duct fan is an excellent choice for anyone looking for a combination of efficiency, performance, and quiet operation. Whether in commercial or industrial applications, this fan will meet the demands.
| Device names | ER ECO 40 M |
| Manufacturer | CasaFan |
| Material | Steel galvanized |
| Color | Black, two-layer anti-corrosion paint |
| Special feature | energy saving |
| Weight | 8 kg |

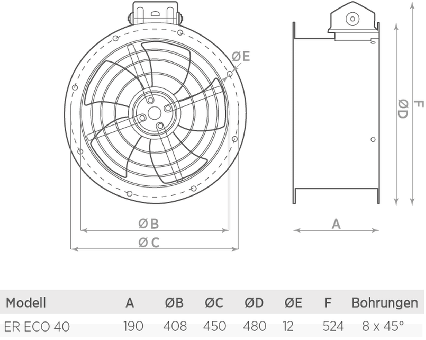

| Nominal size | 400 mm |
| Supply voltage | 230 volt ~ 50 Hz |
| Degree of protection | IP54 |
| Rated current | 1.1 amps |
| Protection class | I |
| Maximum power consumption | 140 watts |
| Maximum RPM | 1100 U/min |

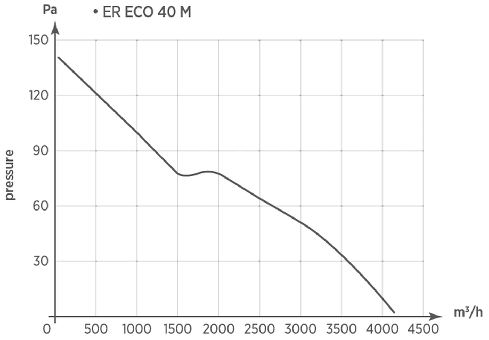

| Maximum Air Flow | 4100 m³/h |
| Total pressure Pmax | 140 PA |
| Sound pressure level Lp - 2m | 56 db(A) |
| Maximum temperature | +60 °C |
| Generators | single phase |
| Engine | 0-10 volts interface, single-phase, insulation class B, external rotor motor with ball bearings |
| Fan Type | Axial fan, duct fan |
| Picture | Artikcle | Nominal size | Max. Power Consumption | Max. RPM | Max. Air performance | Item No. | Price |
|---|---|---|---|---|---|---|---|
 |
ER ECO 25 M axial duct fan | 250 mm | 50 watts | 2400 U/min | 1600 m³/h | 973460 | 799,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 30 M axial duct fan | 300 mm | 70 watts | 1500 U/min | 2200 m³/h | 973462 | 849,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 35 M axial duct fan | 350 mm | 75 watts | 1250 U/min | 3000 m³/h | 973464 | 849,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 40 M axial duct fan | 400 mm | 140 watts | 1100 U/min | 4100 m³/h | 973466 | 1199,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ECO 45 M axial duct fan | 450 mm | 350 watts | 1300 U/min | 6500 m³/h | 973468 | 1449,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 50 M axial duct fan | 500 mm | 360 watts | 1100 U/min | 7350 m³/h | 973470 | 1649,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
|
ER ECO 60 M axial duct fan | 600 mm | 240 watts | 800 U/min | 9000 m³/h | 973472 | 1749,99 € Preis inkl. 19 % MwSt. zzgl. Versandkosten |
