Axial fan CasaFan EQ 30/4 T - 400V-50/60Hz

High-performance fan for various applications

The Axial fan CasaFan EQ 30/4 T - 400V-50/60Hz is the ideal solution for commercial and industrial ventilation. With an impressive airflow capacity of 1900 m³/h, it is perfectly suited for applications in workshops, bathrooms, offices, and many other areas. This fan is part of the renowned EQ series from CasaFan, known for its high efficiency and durability.

This model differs from the main variant, the Axial fan CasaFan EQ 20/4 T - 400V-50/60Hz, by its higher power and airflow capacity. The EQ series also includes other variants such as the EQ 25/4 T, EQ 35/4 T, and EQ 40/4 T, each offering different power levels.

The shared features of the EQ series include:

• High-quality housing: Made of powder-coated, galvanized steel for high stability.
• Low noise level: Optimized blades ensure quiet operation.
• Reversibility: All models (except EQ 20/4 M and EQ 25/4 M) are reversible, allowing for flexible use.

The differences between the variants are mainly in the airflow capacity and current consumption, which are crucial for selecting the appropriate model. The EQ 30/4 T is particularly suitable for applications requiring strong air circulation, while the smaller models are ideal for less demanding uses.

Here is an overview of the key technical differences among the EQ models:

• EQ 20/4 T: 500 m³/h, 20 Watts, 0.2/0.1 Amperes
• EQ 25/4 T: 1000 m³/h, 25 Watts, 0.2/0.1 Amperes
• EQ 30/4 T: 1900 m³/h, 55 Watts, 0.3/0.2 Amperes (current variant)
• EQ 35/4 T: 3400 m³/h, 130 Watts, 0.7/0.4 Amperes
• EQ 40/4 T: 4400 m³/h, 195 Watts, 0.8/0.5 Amperes

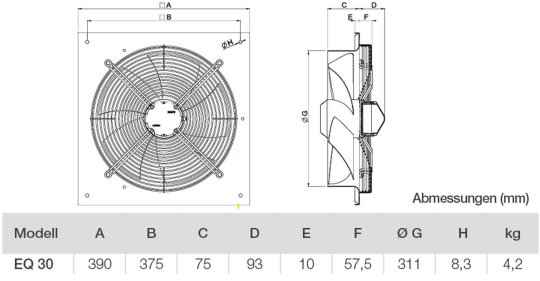

The technical specifications of the Axial fan CasaFan EQ 30/4 T are summarized in the following table:

If you have any questions or need further information, the KlimaLex service team is always available to assist you.
