Galltec HG mini S Hygrostat for wall mounting

Galltec HG mini S humidistats

Hygrostat for controlling air humidifiers and dehumidifiers.

This hygrostat is suitable for controlling air humidifiers as well as air dehumidifiers by simply reconnecting it.

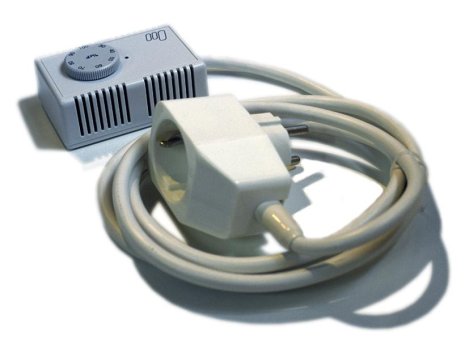

The double plug of the hygrostat goes into the socket and the plug of the air humidifier or the room air dehumidifier into the double plug. The cable on which the hygrostat is mounted is approx. 2m long. This means that the moisture can be measured up to a distance of 2m from the socket.

This Galltec room hygrostat is suitable for wall mounting.

The desired target air humidity can be set using the rotary knob on the hygrostat. When the set humidity is reached, the humidifier or the connected device is switched off. As soon as the value is undershot again, automatically switched on again, etc..

Technical data of the Galltec HG mini S hygrostat

Working range: 0-60°C / 35-100%rh
Measuring range: 30-100%rh
Measuring accuracy: ± 3.0%rh
Switching differential: approx. 4%rh
Housing: impact-resistant plastic
Colour: light grey
Moisture measuring element: fast and precise reacting Galltec "Polyga"
Measured value regulation: by mechanical rotary control (30 to 100% RH)
Switching capacity (min.): 100 mA, 20V AC/DC
Switching capacity (max.): 5A, 230 volts AC/DC
Width: 85mm
Height: 55mm
Depth: 36mm
